KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

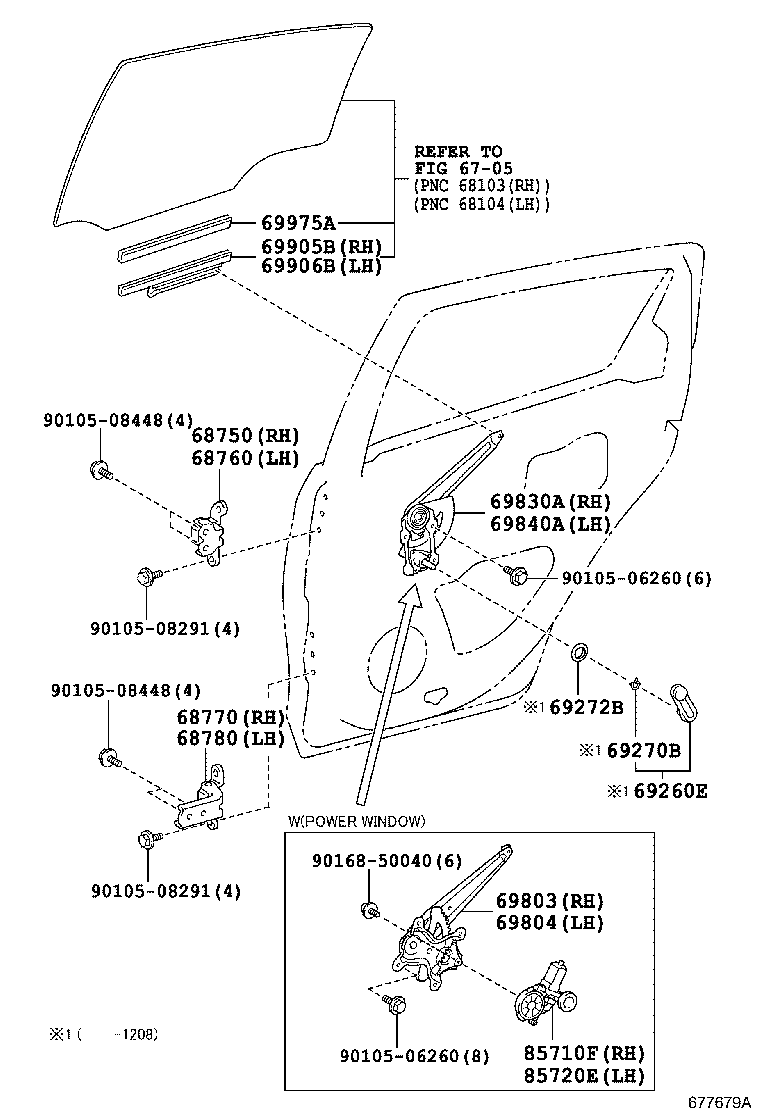

Click highlighted areas on diagram

diagram 6705 68750 68760 68770 68780 69260E 69270B 69272B 69803 69804 69830A 69840A 69905B 69906B 69975A 85710F 85720E 9010506260 9010506260 9010508291 9010508291 9010508448 9010508448 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20121

KSP130,NSP130

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20122

KSP130,NSP130

 1
68760-20121

KSP130,NSP130

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52031

KSP130,NSP130

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52031

KSP130,NSP130

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-14030C0

KSP130,NSP130

BLACK,TRIM1#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

KSP130,NSP130

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-52010

KSP130,NSP130

 2
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-52260

KSP130,NSP130

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-52260

KSP130,NSP130

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-52060

KSP130,NSP130

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-52060

KSP130,NSP130

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

KSP130,NSP130

 2
Common parts
90105-06260
90105-08291
90105-08448
90168-50040
Linked diagrams
6705
