KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Aug 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )

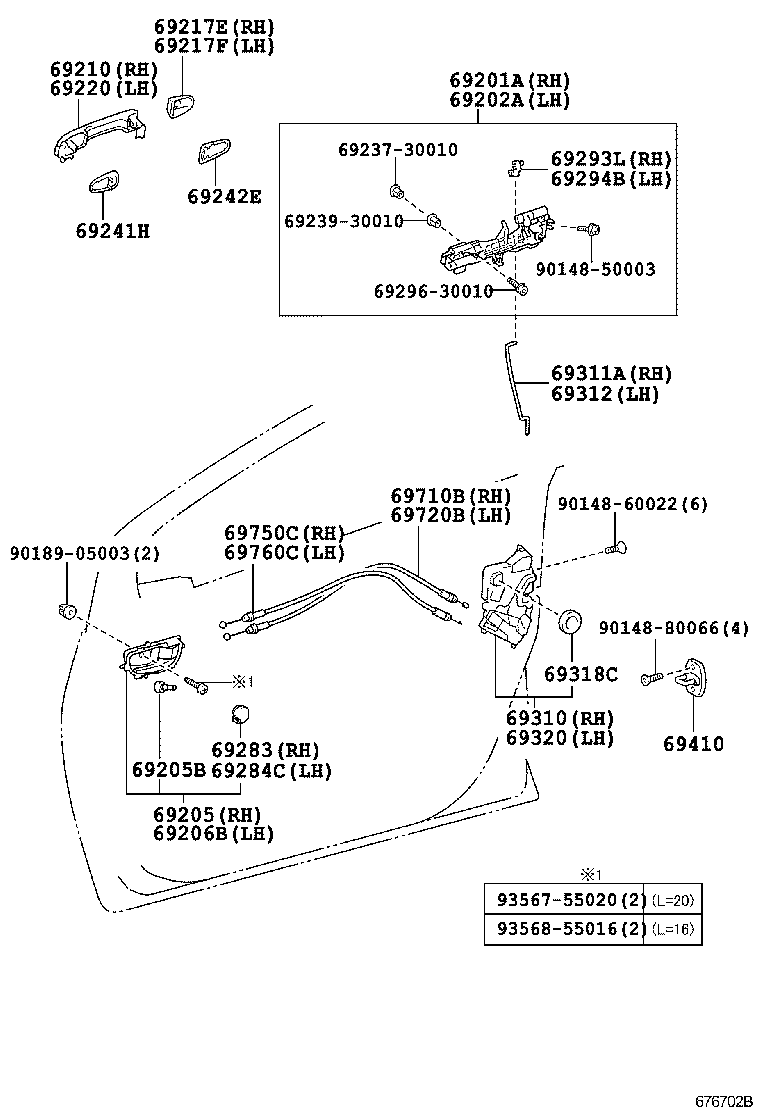

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52130 |
KSP130,NSP130 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52070 |
KSP130,NSP130 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-52180C0 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
KSP130,NSP130 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-52180C0 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-52110 |
KSP130,NSP130..R NO PAINT REQ. |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52050 |
KSP130,NSP130..R BLACK |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-52050 |
KSP130,NSP130..R BLACK |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-52110 |
KSP130,NSP130..R NO PAINT REQ. |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-52020 |
KSP130,NSP130 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-52030 |
KSP130,NSP130 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-52010C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-52010C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
KSP130,NSP130 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
KSP130,NSP130 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-47050 |
KSP130,NSP130..LHD..R |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-52200 |
KSP130,NSP130 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-52190 |
KSP130,NSP130 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
KSP130,NSP130 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-52340 |
KSP130,NSP130..LHD |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
KSP130,NSP130 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-52180 |
KSP130,NSP130 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-52180 |
KSP130,NSP130 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-52110 |
KSP130,NSP130 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-52110 |
KSP130,NSP130 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93567-55020 | ||||
| 93568-55016 | ||||
