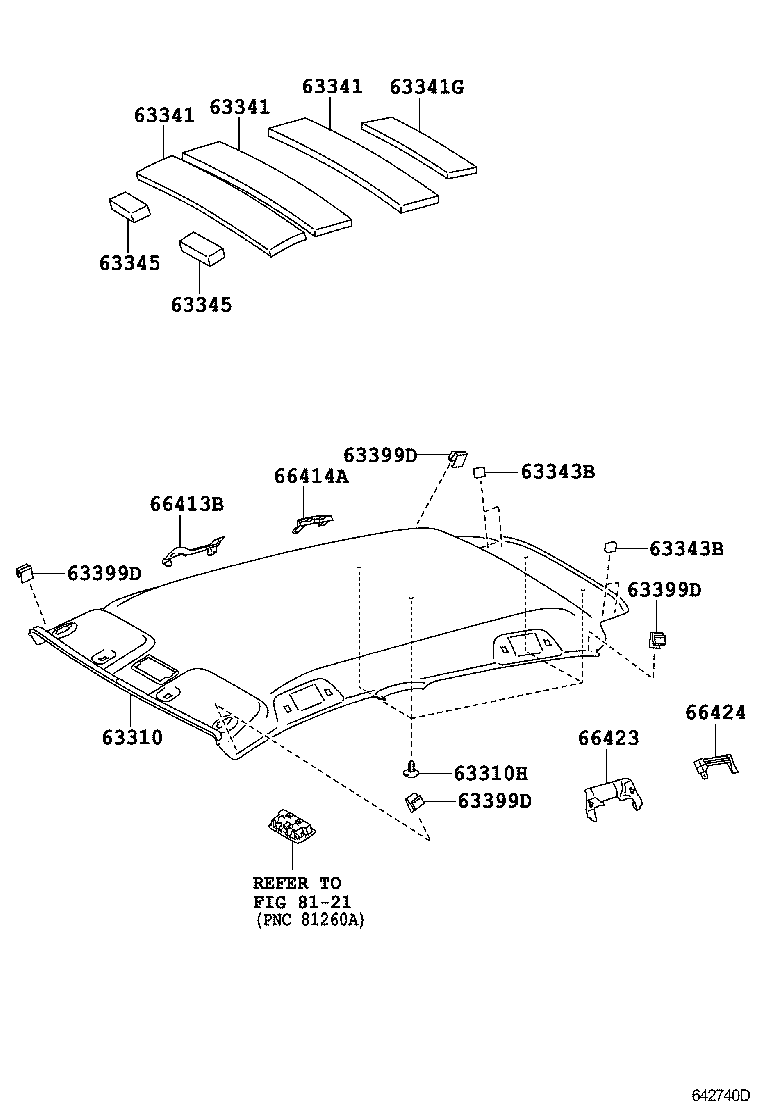

KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)
(1108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-52A60B0 |
KSP130,NSP130..LHD..R N1 PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 63310-52A80B0 |
KSP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP130..LHD..R N1 PACKAGE,LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP130 LT.GRAY,TRIM1# |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NSP130 |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NSP130 |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NSP130 |
3 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NSP130 |
1 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NSP130 |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NSP130 |
4 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NSP130 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NSP130 |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66416-52040 |
KSP130,NSP130 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52280 |
KSP130,NSP130 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66426-52030 |
KSP130,NSP130 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52220 |
KSP130,NSP130 |
1 | ||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||

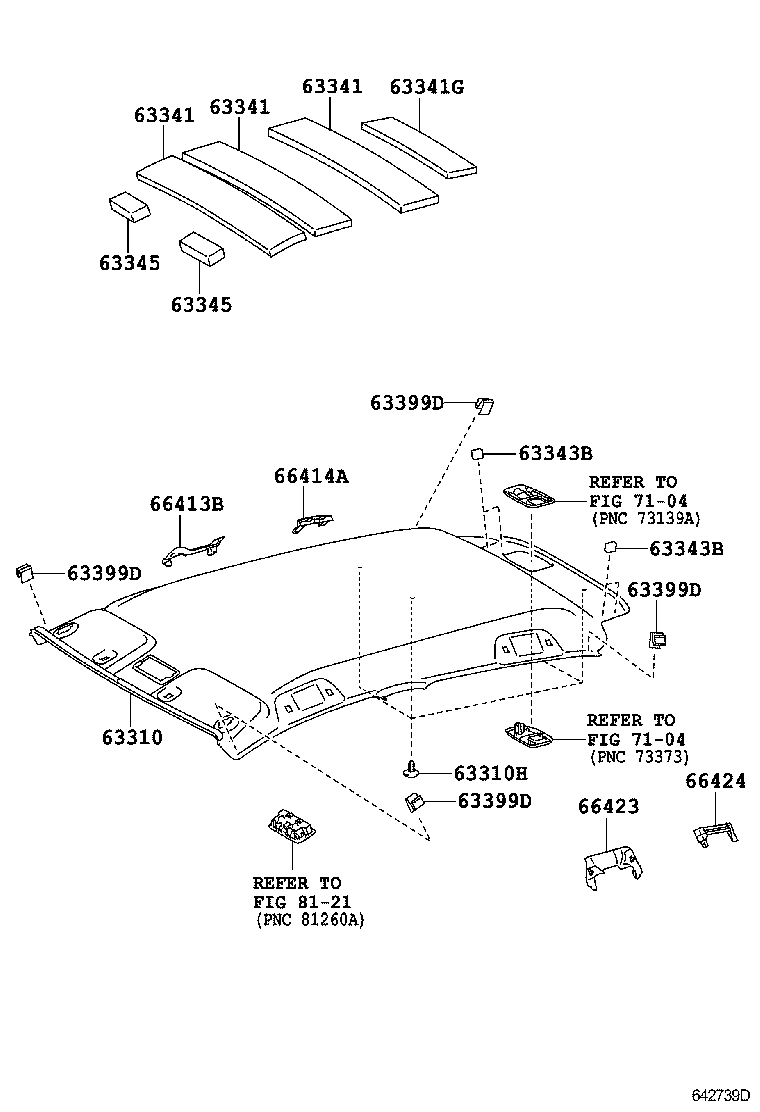

(1108- )
W/O(REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-52A60B0 |
KSP130,NSP130..LHD..R N1 PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 63310-52A80B0 |
KSP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
KSP130,NSP130..LHD..R N1 PACKAGE,LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B0 |
KSP130,NSP130 LT.GRAY,TRIM1# |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NSP130 |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NSP130 |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52250 |
KSP130,NSP130 |
3 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52290 |
KSP130,NSP130 |
1 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NSP130 |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52080 |
KSP130,NSP130 |
4 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NSP130 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52010 |
KSP130,NSP130 |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
KSP130,NSP130 |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66416-52040 |
KSP130,NSP130 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52280 |
KSP130,NSP130 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66426-52030 |
KSP130,NSP130 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52220 |
KSP130,NSP130 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
