KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

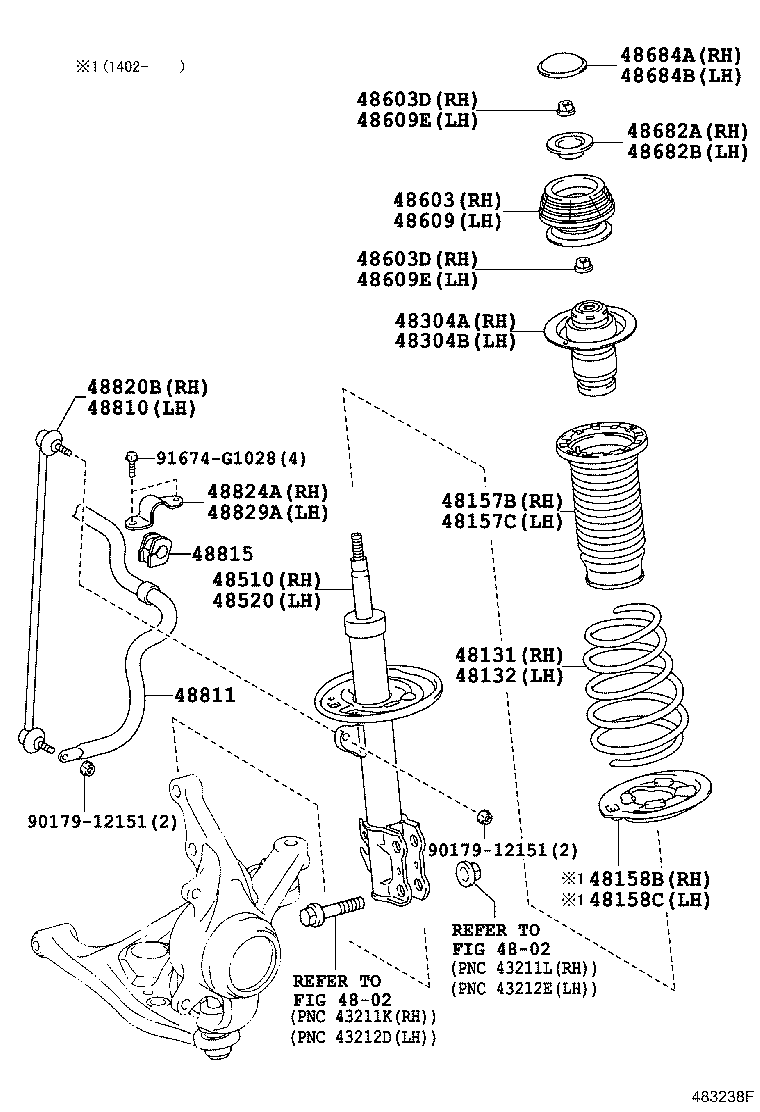

Click highlighted areas on diagram

diagram 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48304A 48304B 48510 48520 48603 48603D 48603D 48609 48609E 48609E 48682A 48682B 48684A 48684B 48810 48811 48815 48820B 48824A 48829A 9017912151 9017912151 91674G1028
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-52F90

KSP130..R

TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

 1
48131-52F90

KSP130..R

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
48131-52G20

KSP130..R

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
48131-52F70

KSP130

 1
48131-52G20

KSP130..R

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

 1
48132 - SPRING, FRONT COIL, LH
48131-52F70

KSP130

 1
48131-52G20

KSP130..R

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
48131-52F90

KSP130..R

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
48131-52F90

KSP130..R

TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

 1
48131-52G20

KSP130..R

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-52030

KSP130,NSP130

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-52030

KSP130,NSP130

 1
48304A - SEAT SUB-ASSY, BUMPER, RH
48304-52040

KSP130..R

TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

 1
48304-52040

KSP130,NSP130..R

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
48304-52050

KSP130,NSP130

 1
48304-52051

KSP130,NSP130

 1
48304B - SEAT SUB-ASSY, BUMPER, LH
48304-52040

KSP130..R

TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

 1
48304-52040

KSP130,NSP130..R

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
48304-52050

KSP130,NSP130

 1
48304-52051

KSP130,NSP130

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-52G10

KSP130,NSP130

MARK 48510-52G10

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-52510

KSP130,NSP130

MARK 48520-52510

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-52100

KSP130,NSP130

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-12145

KSP130,NSP130

 2
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-12145

KSP130,NSP130

 2
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-52100

KSP130,NSP130

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-12145

KSP130,NSP130

 2
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-12145

KSP130,NSP130

 2
48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH
48682-52040

KSP130,NSP130

 1
48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH
48682-52040

KSP130,NSP130

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-52020

KSP130,NSP130

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-52020

KSP130,NSP130

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-52030

KSP130,NSP130

 1
48811 - BAR, STABILIZER, FRONT
48811-52240

KSP130,NSP130

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-52090

KSP130,NSP130

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-52030

KSP130,NSP130

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-52060

KSP130,NSP130

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-52060

KSP130,NSP130

 1
Common parts
90179-12151
91674-G1028
Linked diagrams
4802
