KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )KSP130..LHD

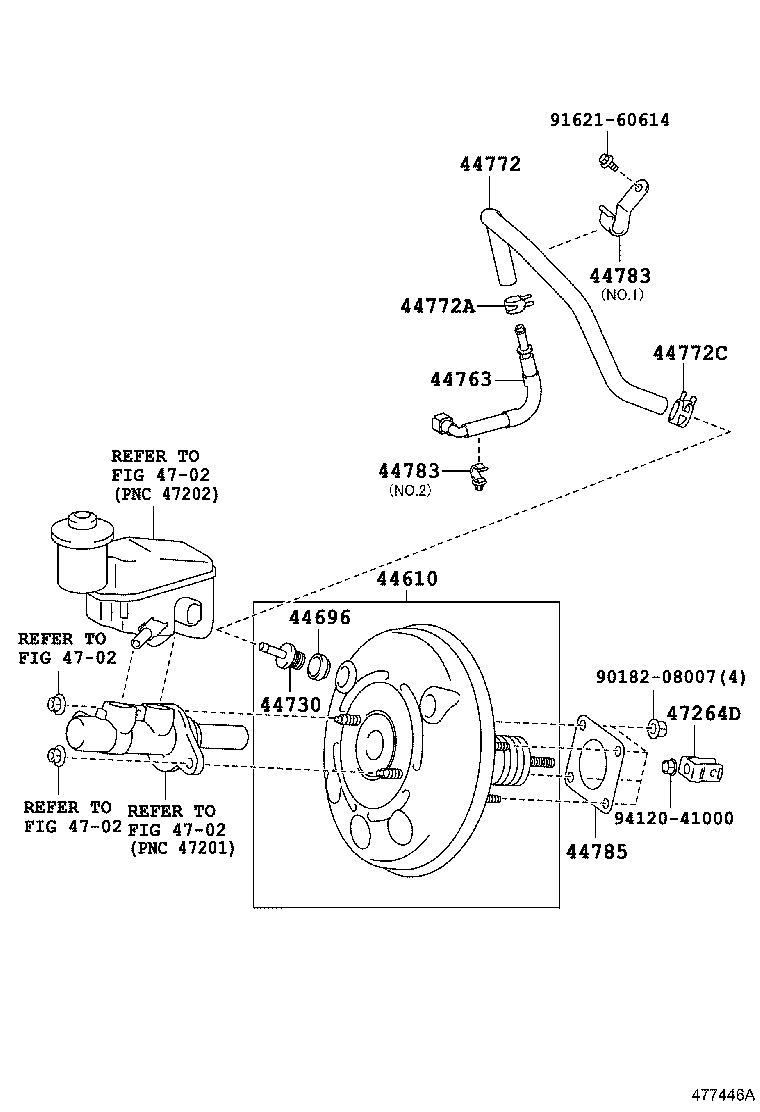

Click highlighted areas on diagram

diagram 44610 44696 44730 44763 44772 44772A 44772C 44783 44783 44785 4702 4702 4702 4702 47264D 9018208007 9162160614 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-52B50

KSP130..LHD

 1
44696 - GROMMET, CHECK VALVE
90480-24439

KSP130,NSP130

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070

KSP130,NSP130..LHD

 1
44763 - TUBE, BOOSTER VACUUM
44763-52130

KSP130..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-52160

KSP130..LHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

KSP130

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16014

KSP130

 1
44783 - CLAMP, VACUUM HOSE
44783-70010

KSP130

NO.2:REFER ILLUST.

 1
44783-52070

KSP130..LHD

NO.1:REFER ILLUST.

 1
44783 - CLAMP, VACUUM HOSE
44783-70010

KSP130

NO.2:REFER ILLUST.

 1
44783-52070

KSP130..LHD

NO.1:REFER ILLUST.

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP130,NSP130

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-52040

KSP130,NSP130

 1
Common parts
90182-08007
91621-60614
94120-41000
Linked diagrams
4702
