KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )KSP130

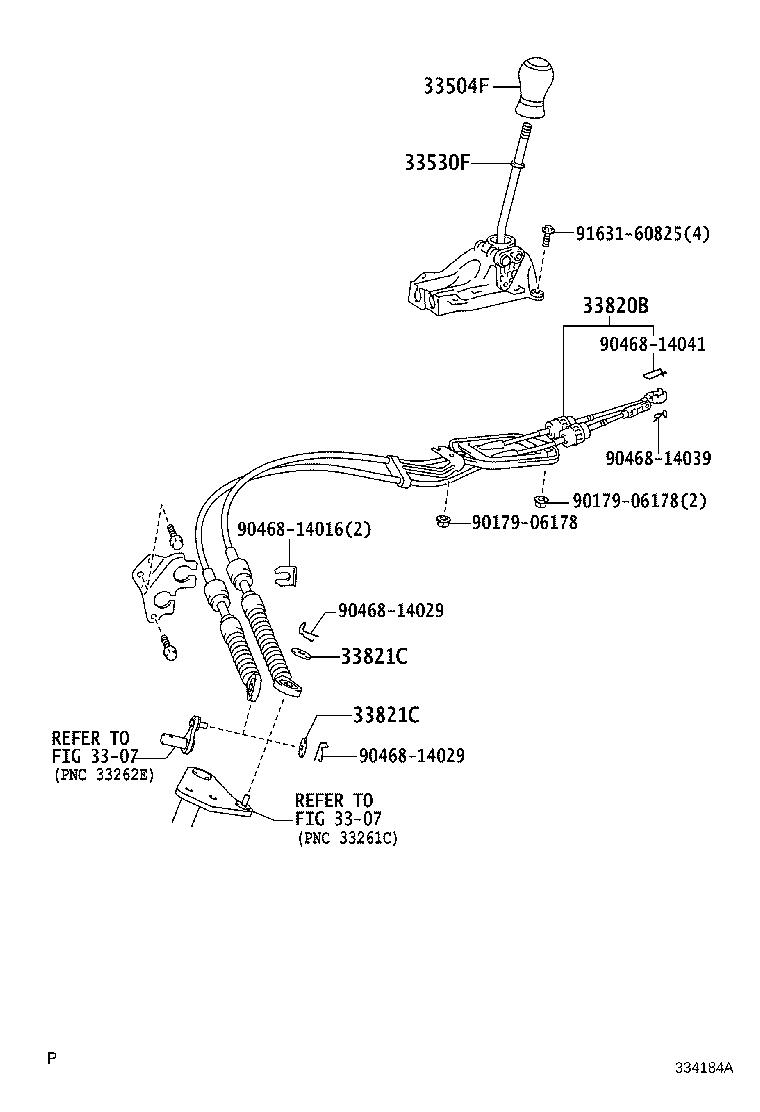

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 33820B 33821C 33821C 9017906178 9017906178 9046814016 9046814029 9046814029 9046814039 9046814041 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12380C0

KSP130..R

BLACK,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-52210

KSP130

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52430

KSP130

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

KSP130

OD=28

 2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

KSP130

OD=28

 2
Common parts
90179-06178
90468-14016
90468-14029
90468-14039
90468-14041
91631-60825
Linked diagrams
3307
