KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )KSP130

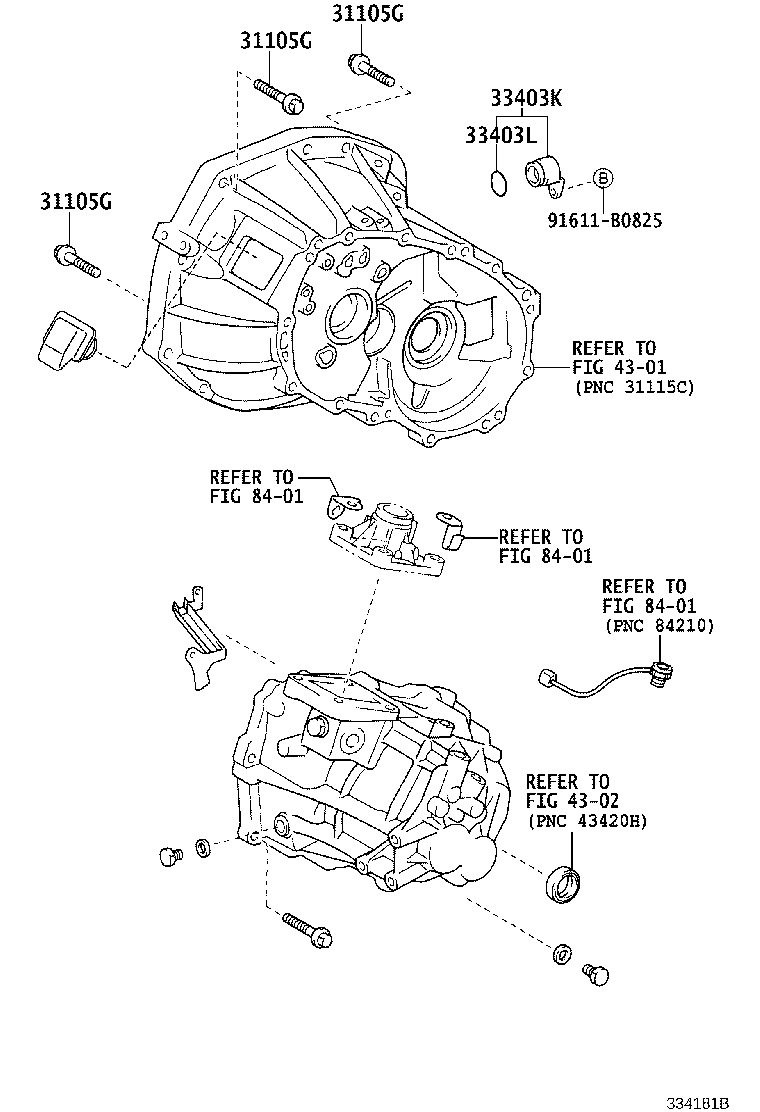

Click highlighted areas on diagram

C551

diagram 31105G 31105G 31105G 33403K 33403L 4301 4302 8401 8401 8401 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61245

KSP130

*12-1.25PX45-30

 5
91622-61040

KSP130

*10-1.25PX40-30

 4
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61245

KSP130

*12-1.25PX45-30

 5
91622-61040

KSP130

*10-1.25PX40-30

 4
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61245

KSP130

*12-1.25PX45-30

 5
91622-61040

KSP130

*10-1.25PX40-30

 4
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

KSP130,NSP130..MTM

 1
33403L - RING, O
96711-24030

KSP130,NSP130..MTM

 1
Common parts
91611-B0825
Linked diagrams
4301
4302
8401
