KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

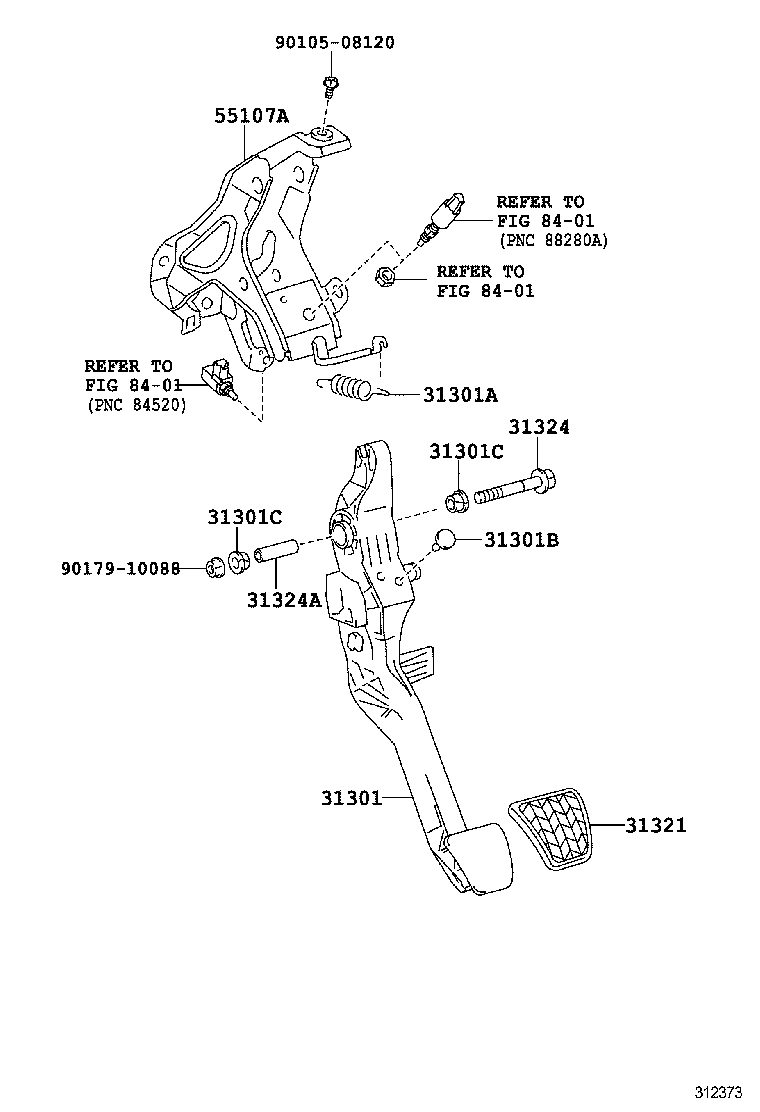

ILLUST NO. 1 OF 2(1108- )LHD..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31321 31324 31324A 55107A 8401 8401 8401 9010508120 9017910088
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-52050

KSP130,NSP130..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

KSP130,NSP130..LHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KSP130,NSP130..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP130,NSP130..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP130,NSP130..MTM

 2
31321 - PAD, CLUTCH PEDAL
31321-52010

KSP130,NSP130..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90105-10563

KSP130,NSP130..LHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

KSP130,NSP130..LHD..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-52210

KSP130,NSP130..LHD..MTM

 1
Common parts
90105-08120
90179-10088
Linked diagrams
8401

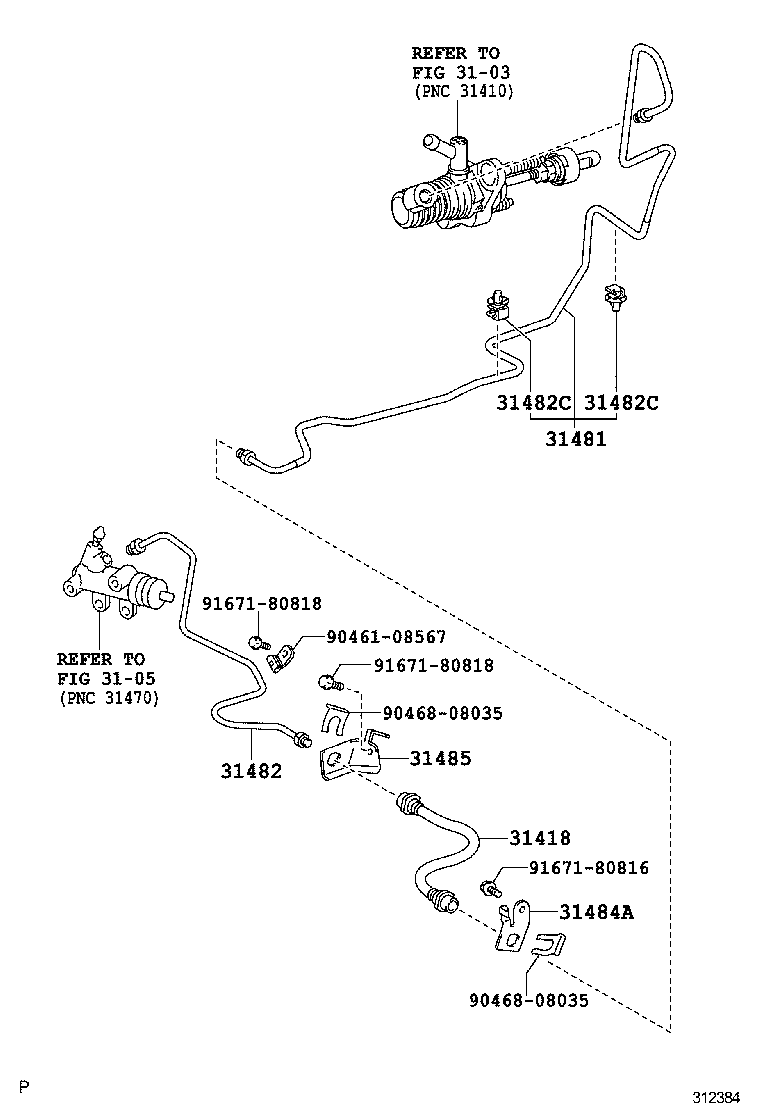

ILLUST NO. 2 OF 2(1108- )KSP130..LHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31482C 31482C 31484A 31485 9046108567 9046808035 9046808035 9167180816 9167180818 9167180818
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02G28

KSP130,NSP130..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-52110

KSP130,NSP130..LHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52080

KSP130

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP130,NSP130..MTM

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP130,NSP130..MTM

 2
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP130,NSP130..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52100

KSP130

 1
Common parts
90461-08567
90468-08035
91671-80816
91671-80818
Linked diagrams
3103
3105
