KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1KRFE

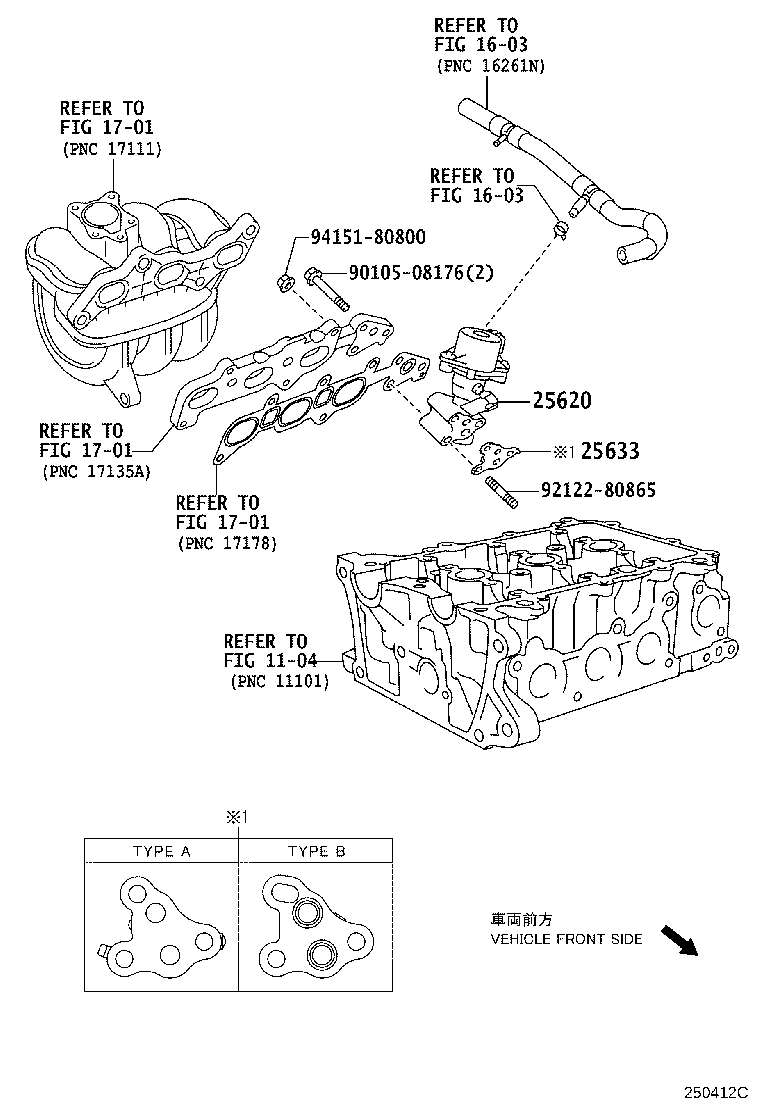

Click highlighted areas on diagram

diagram 1104 1603 1603 1701 1701 1701 25620 25633 9010508176 9212280865 9415180800
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-40020

1KRFE..KSP130

 1
25633 - GASKET, EGR VALVE
25633-40020

1KRFE..KSP130

TYPE A:REFER ILLUST.

 1
Common parts
90105-08176
92122-80865
94151-80800
Linked diagrams
1104
1603
1701
