KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1KRFE

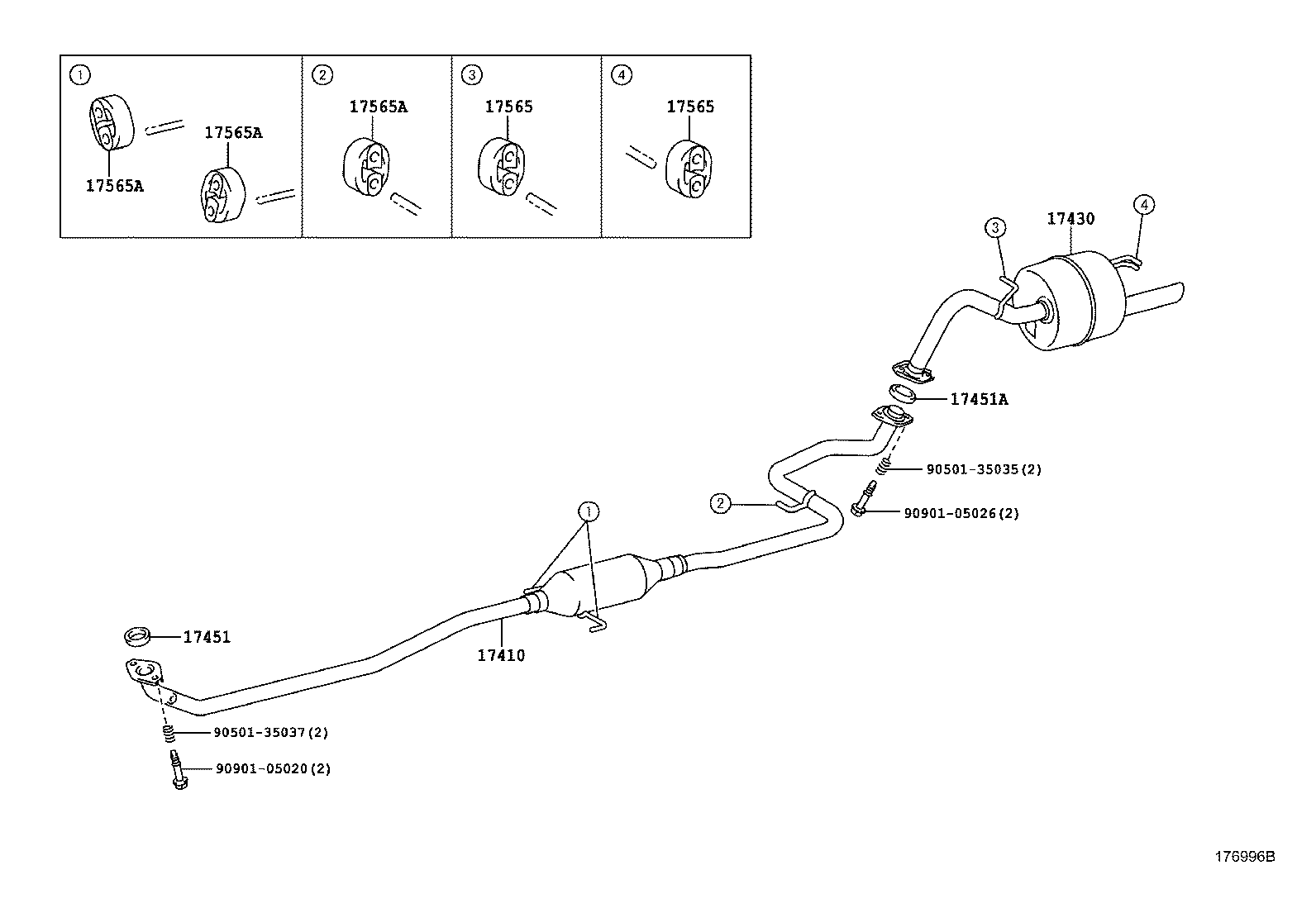

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17565 17565 17565A 17565A 17565A 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-40190

1KRFE..KSP130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-40110

1KRFE..KSP130

 1
17451 - GASKET, EXHAUST PIPE
17451-40010

1KRFE..KSP130

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-40032

1KRFE..KSP130

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1KRFE..KSP130

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1KRFE..KSP130

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE..KSP130

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE..KSP130

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1KRFE..KSP130

 3
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
