KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)

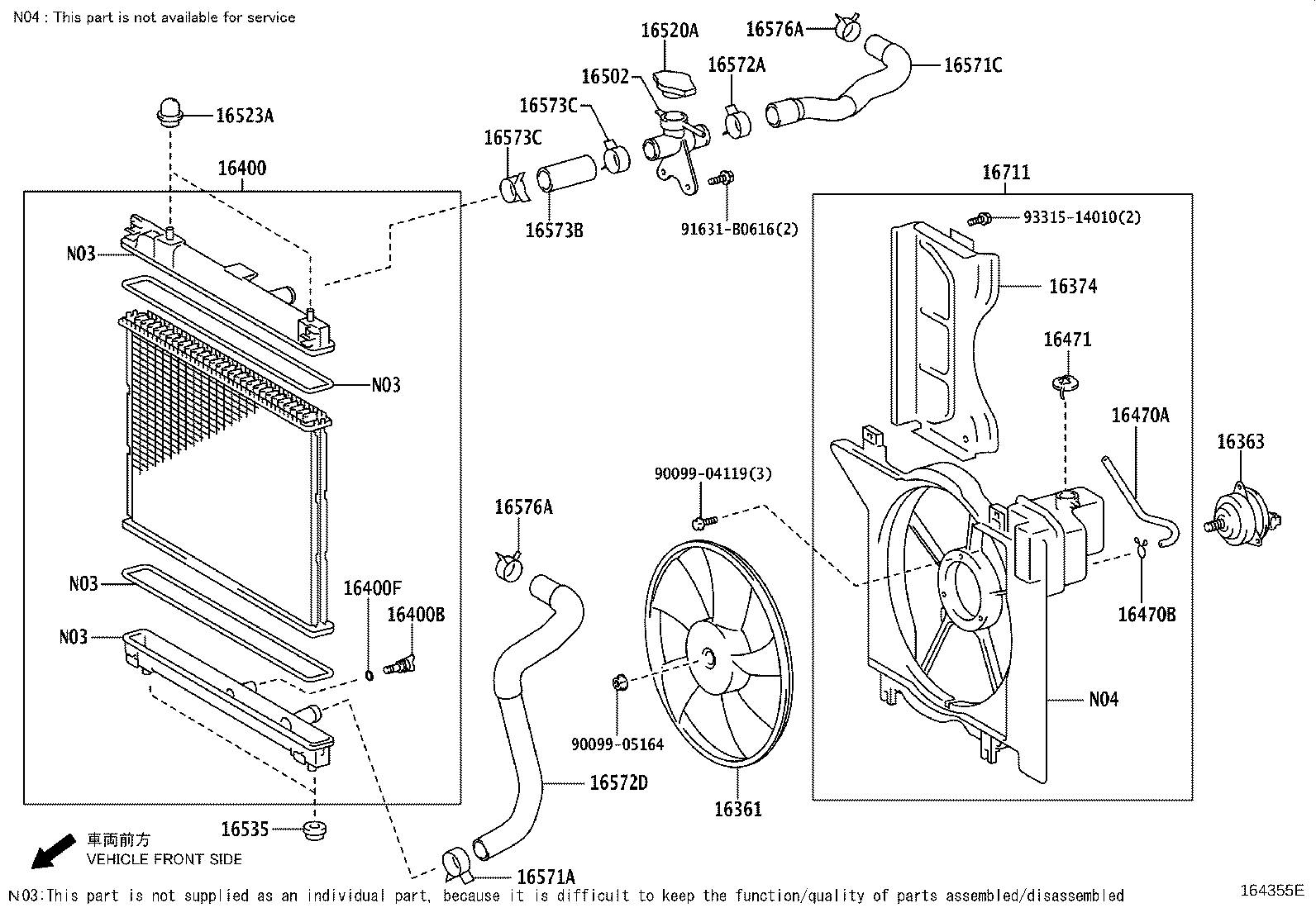

ILLUST NO. 1 OF 2(1108- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-23070 |
1KRFE..KSP130 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28200 |
1KRFE..KSP130 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-40010 |
1KRFE..KSP130 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-23170 |
1KRFE..KSP130 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1KRFE..KSP130 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1KRFE..KSP130 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-47020 |
1KRFE..KSP130 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KRFE..KSP130 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1KRFE..KSP130 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-23010 |
1KRFE..KSP130 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31520 |
1KRFE..KSP130 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1KRFE..KSP130 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1KRFE..KSP130 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1KRFE..KSP130 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-40040 |
1KRFE..KSP130 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33006 |
1KRFE..KSP130 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-40040 |
1KRFE..KSP130 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-23010 |
1KRFE..KSP130 L=94.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1KRFE..KSP130 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1KRFE..KSP130 |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90466-30001 |
1KRFE..KSP130 |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90466-30001 |
1KRFE..KSP130 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-47050 |
1KRFE..KSP130 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91631-B0616 | ||||
| 93315-14010 | ||||

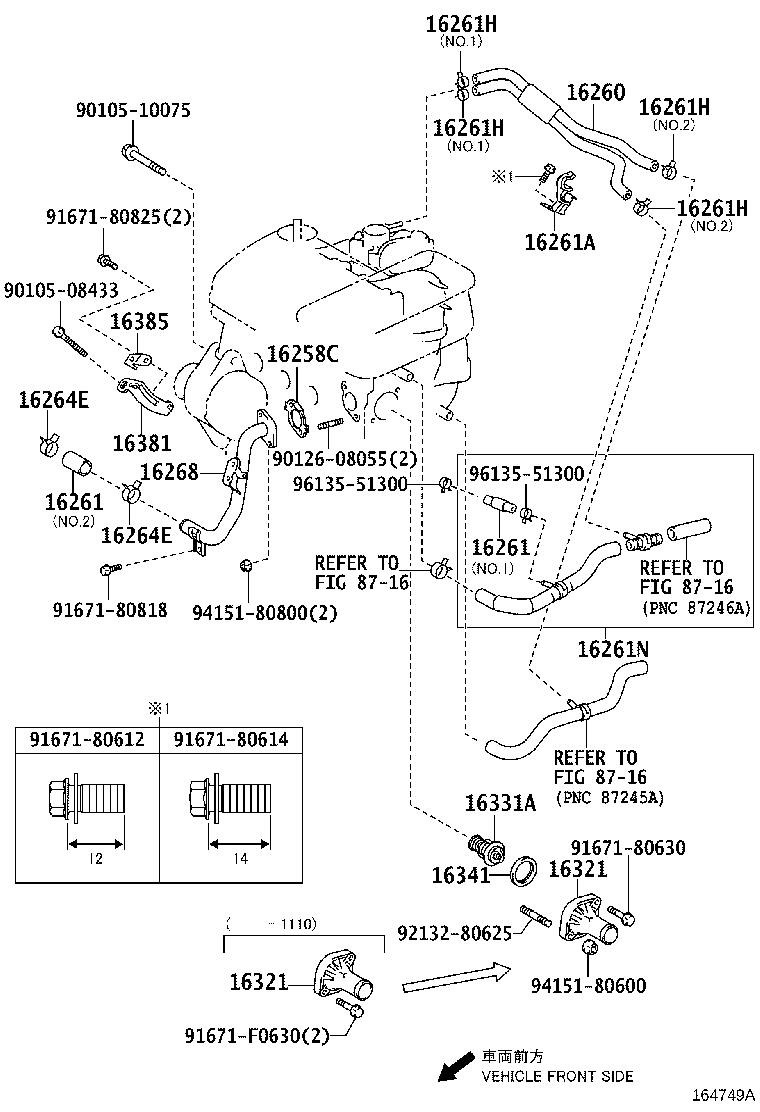

ILLUST NO. 2 OF 2(1108- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40020 |
1KRFE..KSP130 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-40040 |
1KRFE..KSP130 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KSP130 NO.2 |
1 | ||
| 16261-40061 |
1KRFE..KSP130 L=67,NO.1 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KSP130 NO.2 |
1 | ||
| 16261-40061 |
1KRFE..KSP130 L=67,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-40010 |
1KRFE..KSP130 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP130 (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0002 |
1KRFE..KSP130 (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP130 (L),NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP130 (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0002 |
1KRFE..KSP130 (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP130 (L),NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP130 (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0002 |
1KRFE..KSP130 (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP130 (L),NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP130 (J),NO.1,(J),NO.2 |
2 | ||
| 90466-W0002 |
1KRFE..KSP130 (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP130 (L),NO.2 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16260-40012 |
1KRFE..KSP130 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-30001 |
1KRFE..KSP130 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-30001 |
1KRFE..KSP130 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-40050 |
1KRFE..KSP130 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KSP130 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KSP130 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03134 |
1KRFE..KSP130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KSP130 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-40070 |
1KRFE..KSP130 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-40011 |
1KRFE..KSP130 |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 90105-10075 | ||||
| 90126-08055 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80630 | ||||
| 91671-80818 | ||||
| 91671-80825 | ||||
| 91671-F0630 | ||||
| 92132-80625 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 8716 | ||||
