KSP130L-AHMRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1KRFE

Click highlighted areas on diagram

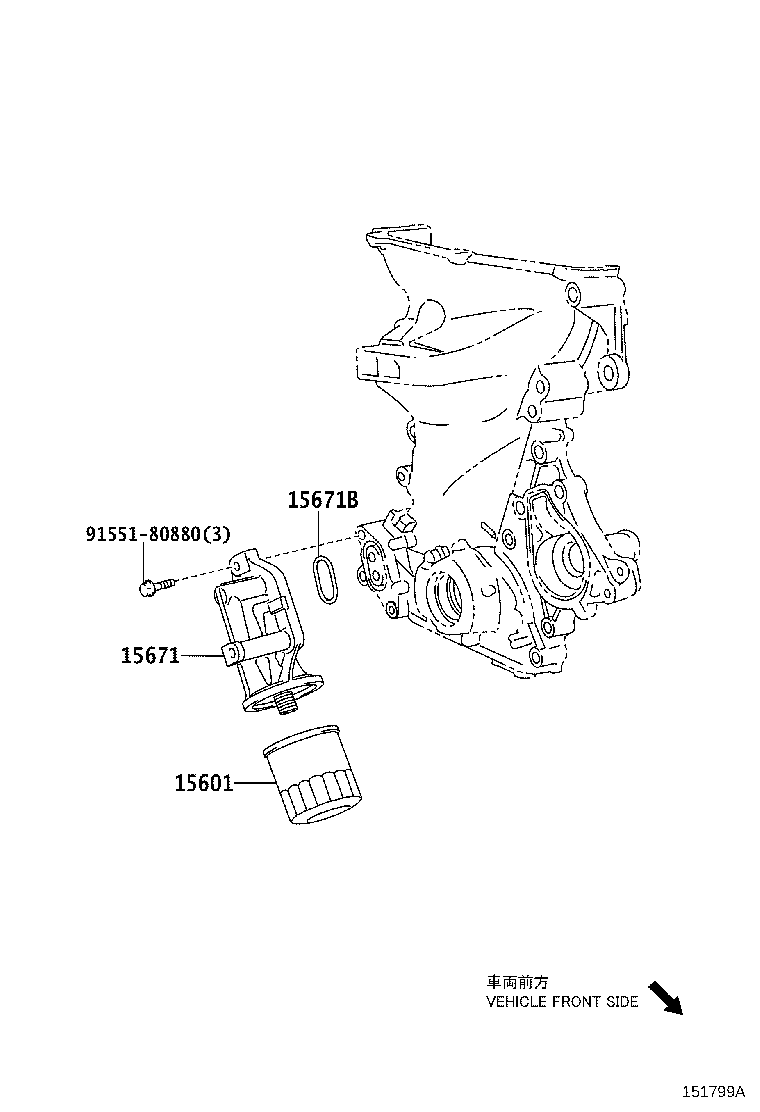

diagram 15601 15671 15671B 9155180880
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-10003

1KRFE..KSP130

 1
15671 - BRACKET, OIL FILTER
15671-0Q010

1KRFE..KSP130

 1
15671B - GASKET, OIL FILTER BRACKET
15691-40020

1KRFE..KSP130

 1
Common parts
91551-80880
