KSP130L-AHMRKW (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Aug 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )1KRFE

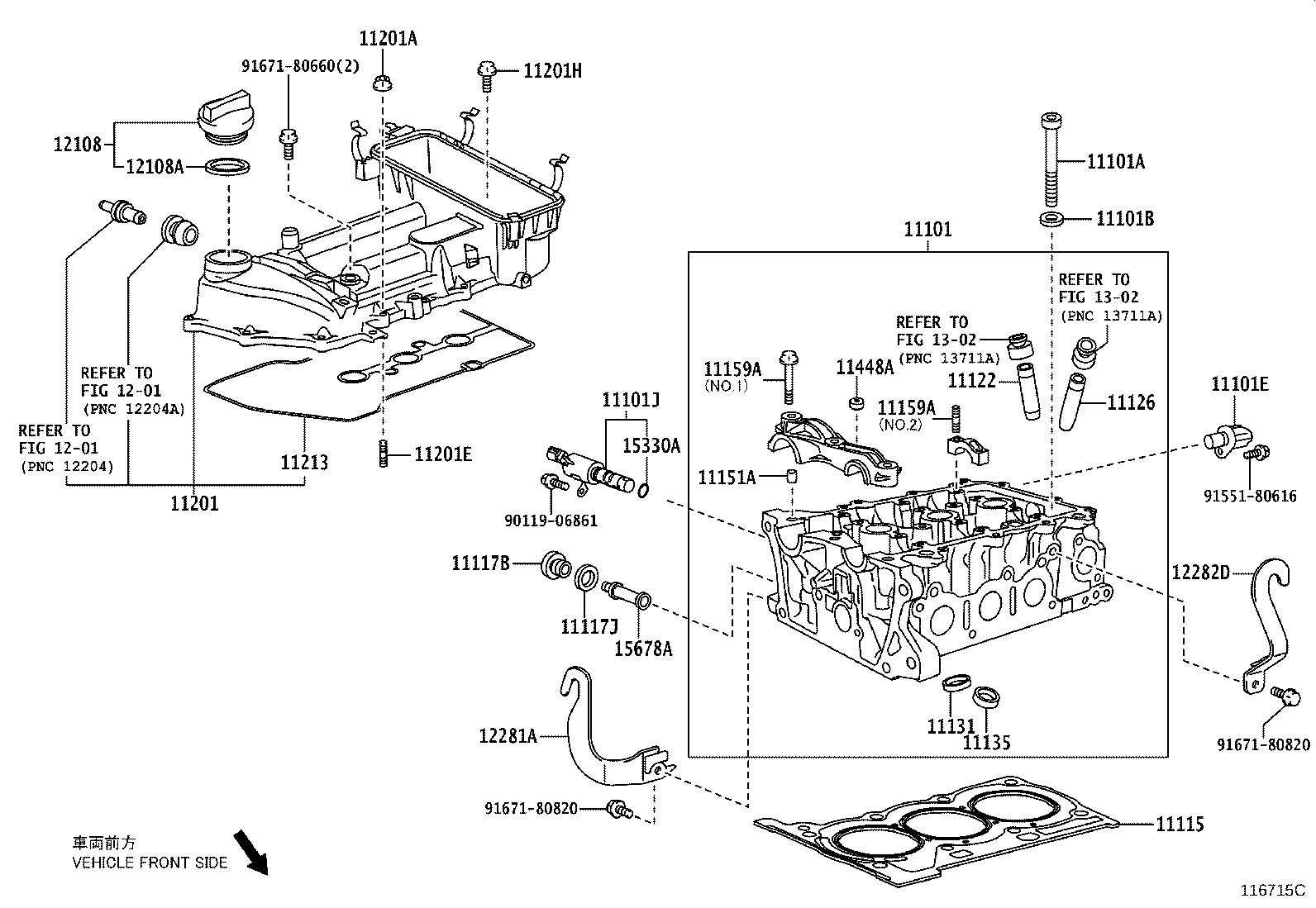

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-40031 |
1KRFE..KSP130 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02151 |
1KRFE..KSP130 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10136 |
1KRFE..KSP130 |
8 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-W5003 |
1KRFE..KSP130 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-40020 |
1KRFE..KSP130 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-40060 |
1KRFE..KSP130 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-14013 |
1KRFE..KSP130 |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-14009 |
1KRFE..KSP130 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-21010 |
1KRFE..KSP130 STD |
6 | ||
| 11123-21010 |
1KRFE..KSP130 O/S 0.05 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-21010 |
1KRFE..KSP130 STD |
6 | ||
| 11123-21010 |
1KRFE..KSP130 O/S 0.05 |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-40020 |
1KRFE..KSP130 STD |
6 | ||
| 11132-40020 |
1KRFE..KSP130 O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-40020 |
1KRFE..KSP130 O/S 0.03 |
6 | ||
| 11135-40020 |
1KRFE..KSP130 STD |
6 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11005 |
1KRFE..KSP130 L=11,OD=9 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1KRFE..KSP130 NO.2 |
12 | ||
| 91671-E0845 |
1KRFE..KSP130 NO.1 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1KRFE..KSP130 NO.2 |
12 | ||
| 91671-E0845 |
1KRFE..KSP130 NO.1 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-40130 |
1KRFE..KSP130 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 94151-80600 |
1KRFE..KSP130 |
2 | ||
| 11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET) | ||||
| 92132-80625 |
1KRFE..KSP130 |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91671-80630 |
1KRFE..KSP130 |
11 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-40030 |
1KRFE..KSP130 |
1 | ||
| 11448A - ORIFICE, CYLINDER HEAD OIL | ||||
| 11448-23010 |
1KRFE..KSP130 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1KRFE..KSP130 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1KRFE..KSP130 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-40032 |
1KRFE..KSP130 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-40010 |
1KRFE..KSP130 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1KRFE..KSP130 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1KRFE..KSP130 |
1 | ||
| Common parts | ||||
| 90119-06861 | ||||
| 91551-80616 | ||||
| 91671-80660 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1302 | ||||
