KSP130L-AHMNKW (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Aug 2012
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )

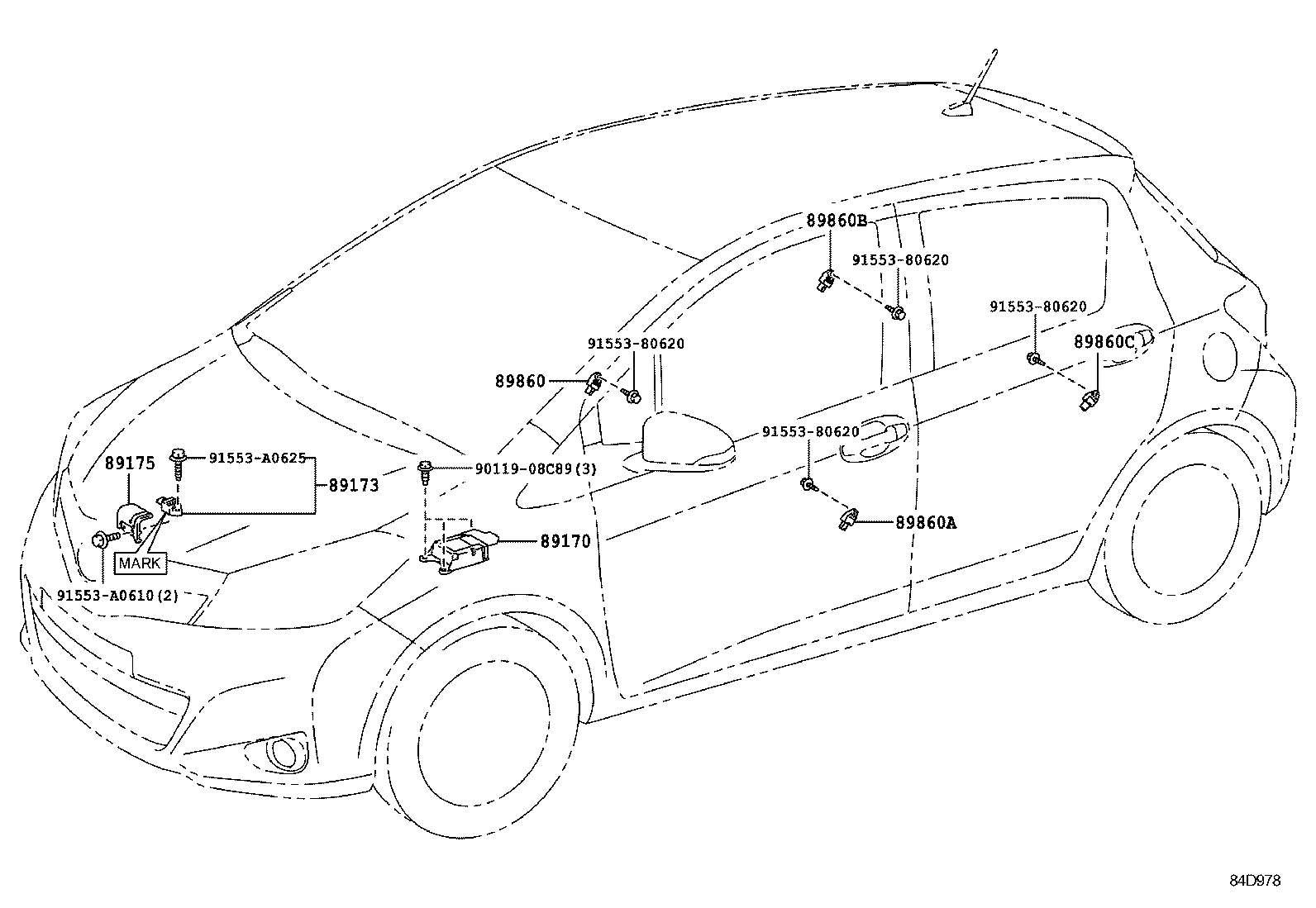

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-52F60 |
KSP130,NSP130..LHD |
1 | ||
| 89173 - SENSOR, AIR BAG, FRONT | ||||
| 89173-59265 |
KSP130,NSP130 MARK 89173-52090 |
1 | ||
| 89175 - BRACKET, AIR BAG SENSOR | ||||
| 89175-52020 |
KSP130,NSP130 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-52020 |
KSP130,NSP130 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-52020 |
KSP130,NSP130 |
1 | ||
| 89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-52020 |
KSP130,NSP130 VSC-WITHOUT |
1 | ||
| 89831-52020 |
KSP130,NSP130 |
1 | ||
| 89831-52020 |
KSP130;NSP130..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT |
1 | ||
| 89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-52020 |
KSP130,NSP130 |
1 | ||
| 89831-52020 |
KSP130;NSP130..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT |
1 | ||
| 89831-52020 |
KSP130,NSP130 VSC-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 91553-80620 | ||||
| 91553-A0610 | ||||
| 91553-A0625 | ||||
