KSP130L-AHMNKW (2011)
Toyota Yaris (Jpp)

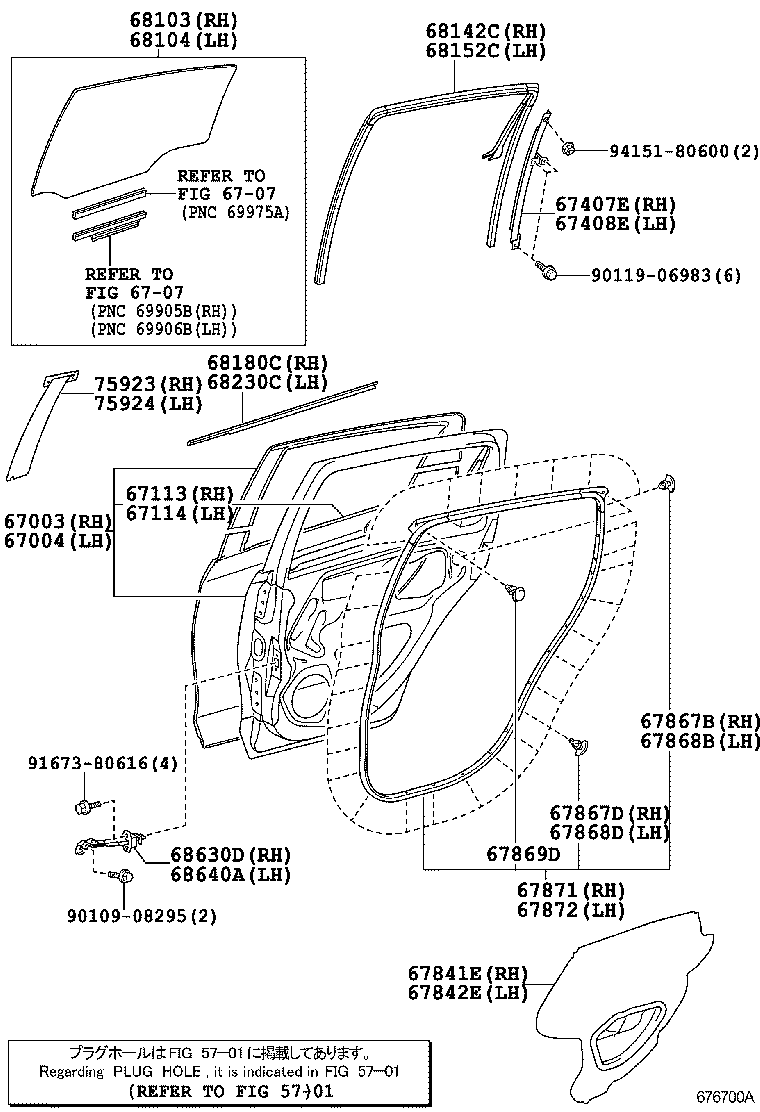

ILLUST NO. 1 OF 2(1108- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52280 |
KSP130,NSP130 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-52440 |
KSP130,NSP130 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-52210 |
KSP130,NSP130 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-52230 |
KSP130,NSP130 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52170 |
KSP130,NSP130 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-52170 |
KSP130,NSP130 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52310 |
KSP130,NSP130 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-52310 |
KSP130,NSP130 |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-52020 |
KSP130,NSP130 |
7 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KSP130,NSP130 |
22 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-52010 |
KSP130,NSP130 |
7 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KSP130,NSP130 |
22 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KSP130,NSP130 |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52180 |
KSP130,NSP130 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-52200 |
KSP130,NSP130 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-52360 |
KSP130,NSP130..ACTV *TEM,T=3.1,DARK GRAY,BACK GLASS-PRIVACY |
1 | ||
| 68130-52350 |
KSP130,NSP130 *UVCT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-52360 |
KSP130,NSP130..ACTV *TEM,T=3.1,DARK GRAY,BACK GLASS-PRIVACY |
1 | ||
| 68140-52350 |
KSP130,NSP130 *UVCT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52150 |
KSP130,NSP130 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-52160 |
KSP130,NSP130 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-52160 |
KSP130,NSP130 |
1 | ||
| 68180-52161 |
KSP130,NSP130 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-52160 |
KSP130,NSP130 |
1 | ||
| 68230-52161 |
KSP130,NSP130 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52110 |
KSP130,NSP130 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-52110 |
KSP130,NSP130 |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-52120 |
KSP130,NSP130 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-52120 |
KSP130,NSP130 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6707 | ||||

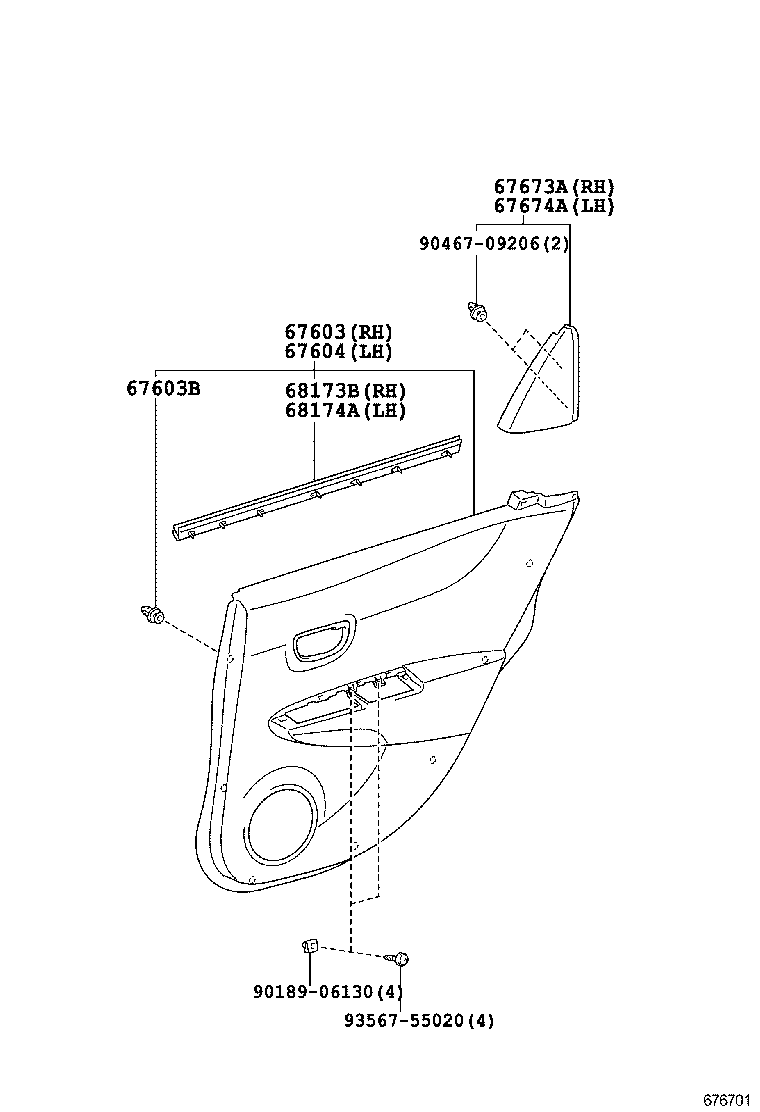

ILLUST NO. 2 OF 2(1108- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52U90C0 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 67010-52010C0 |
KSP130,NSP130..ACTV BLACK,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
KSP130,NSP130 |
14 | ||
| 90467-09206 |
KSP130,NSP130 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67020-52010C0 |
KSP130,NSP130..ACTV BLACK,TRIM1# |
1 | ||
| 67640-52U20C0 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-52040C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-52040C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52160 |
KSP130,NSP130 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-52170 |
KSP130,NSP130 |
1 | ||
| Common parts | ||||
| 90189-06130 | ||||
| 90467-09206 | ||||
| 93567-55020 | ||||
