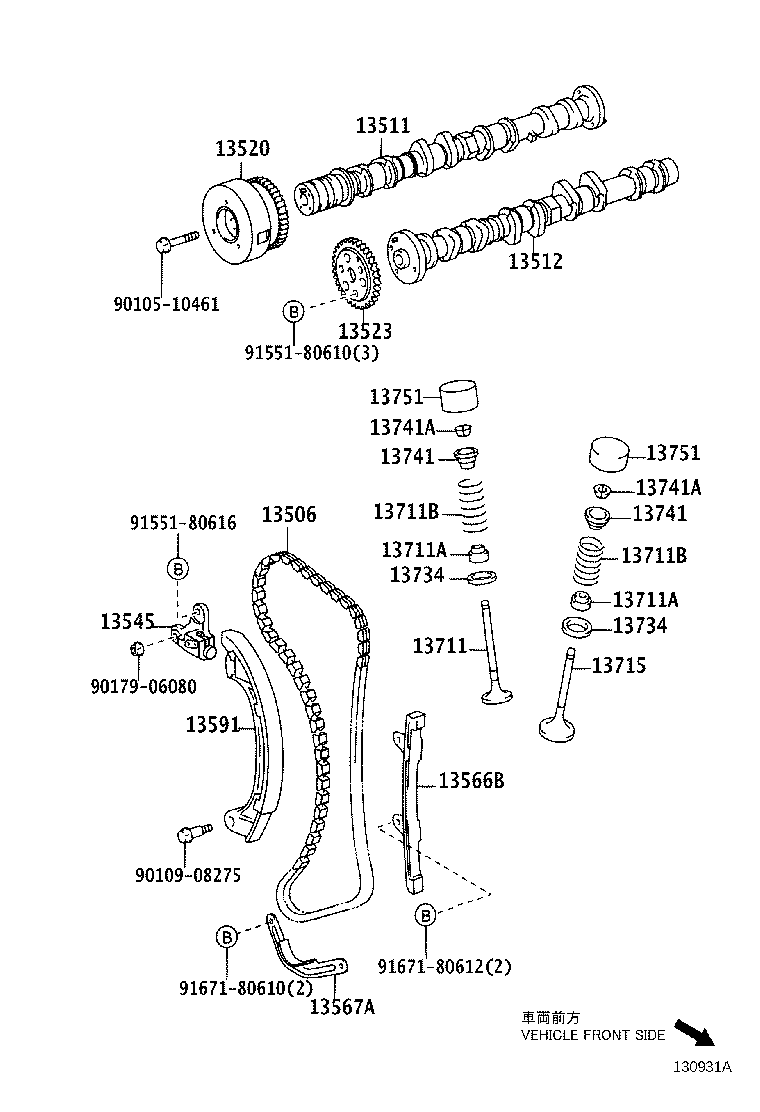

SCP90L-CHGGKW (2005)
Toyota Yaris (Frp)
(0511- )2SZFE..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-23020 |
2SZFE..SCP90..FRP |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0J010 |
2SZFE..SCP90..FRP (L) |
1 | ||
| 13501-23030 |
2SZFE..SCP90..FRP (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0J010 |
2SZFE..SCP90..FRP (L) |
1 | ||
| 13502-23010 |
2SZFE..SCP90..FRP (J) |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-0J011 |
2SZFE..SCP90..FRP (L) |
1 | ||
| 13520-23021 |
2SZFE..SCP90..FRP (J) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-0J010 |
2SZFE..SCP90..FRP (L) |
1 | ||
| 13523-23050 |
2SZFE..SCP90..FRP (J) |
1 | ||
| 13545 - PLUNGER, CHAIN TENSIONER | ||||
| 13545-23010 |
2SZFE..SCP90..FRP (J) |
1 | ||
| 13545-0J010 |
2SZFE..SCP90..FRP (L) |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-23020 |
2SZFE..SCP90..FRP |
1 | ||
| 13567A - GUIDE, TIMING CHAIN, NO.2 | ||||
| 13567-23010 |
2SZFE..SCP90..FRP |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-23020 |
2SZFE..SCP90..FRP |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-23040 |
2SZFE..SCP90..FRP (J) |
8 | ||
| 13711-0J010 |
2SZFE..SCP90..FRP (L) |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31064 |
2SZFE..SCP90..FRP INTAKE SIDE,(L) |
16 | ||
| 90080-31065 |
2SZFE..SCP90..FRP EXHAUST SIDE,(L) |
16 | ||
| 90913-02120 |
2SZFE..SCP90..FRP (J) |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31064 |
2SZFE..SCP90..FRP INTAKE SIDE,(L) |
16 | ||
| 90080-31065 |
2SZFE..SCP90..FRP EXHAUST SIDE,(L) |
16 | ||
| 90913-02120 |
2SZFE..SCP90..FRP (J) |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90080-50273 |
2SZFE..SCP90..FRP |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90080-50273 |
2SZFE..SCP90..FRP |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-23030 |
2SZFE..SCP90..FRP (J) |
8 | ||
| 13715-0J010 |
2SZFE..SCP90..FRP (L) |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-23010 |
2SZFE..SCP90..FRP |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-23010 |
2SZFE..SCP90..FRP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-23030 |
2SZFE..SCP90..FRP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-23030 |
2SZFE..SCP90..FRP |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90080-38141 |
2SZFE..SCP90..FRP (L) |
32 | ||
| 90913-03032 |
2SZFE..SCP90..FRP (J) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90080-38141 |
2SZFE..SCP90..FRP (L) |
32 | ||
| 90913-03032 |
2SZFE..SCP90..FRP (J) |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-0J050 |
2SZFE..SCP90..FRP T=5.18,(L) |
16 | ||
| 13751-0J080 |
2SZFE..SCP90..FRP T=5.24,(L) |
16 | ||
| 13751-0J040 |
2SZFE..SCP90..FRP T=5.16,(L) |
16 | ||
| 13751-0J110 |
2SZFE..SCP90..FRP T=5.30,(L) |
16 | ||
| 13751-0J070 |
2SZFE..SCP90..FRP T=5.22,(L) |
16 | ||
| 13751-0J090 |
2SZFE..SCP90..FRP T=5.26,(L) |
16 | ||
| 13751-0J140 |
2SZFE..SCP90..FRP T=5.36,(L) |
16 | ||
| 13751-0J020 |
2SZFE..SCP90..FRP T=5.12,(L) |
16 | ||
| 13751-0J150 |
2SZFE..SCP90..FRP T=5.38,(L) |
16 | ||
| 13751-0J120 |
2SZFE..SCP90..FRP T=5.32,(L) |
16 | ||
| 13751-0J030 |
2SZFE..SCP90..FRP T=5.14,(L) |
16 | ||
| 13751-0J200 |
2SZFE..SCP90..FRP T=5.48,(L) |
16 | ||
| 13751-0J160 |
2SZFE..SCP90..FRP T=5.40,(L) |
16 | ||
| 13751-0J060 |
2SZFE..SCP90..FRP T=5.20,(L) |
16 | ||
| 13751-0J170 |
2SZFE..SCP90..FRP T=5.42,(L) |
16 | ||
| 13751-0J100 |
2SZFE..SCP90..FRP T=5.28,(L) |
16 | ||
| 13751-0J250 |
2SZFE..SCP90..FRP T=5.58,(L) |
16 | ||
| 13751-0J130 |
2SZFE..SCP90..FRP T=5.34,(L) |
16 | ||
| 13751-0J190 |
2SZFE..SCP90..FRP T=5.46,(L) |
16 | ||
| 13751-0J260 |
2SZFE..SCP90..FRP T=5.60,(L) |
16 | ||
| 13751-0J180 |
2SZFE..SCP90..FRP T=5.44,(L) |
16 | ||
| 13751-23040 |
2SZFE..SCP90..FRP T=5.14,(J) |
16 | ||
| 13751-0J240 |
2SZFE..SCP90..FRP T=5.56,(L) |
16 | ||
| 13751-0J220 |
2SZFE..SCP90..FRP T=5.52,(L) |
16 | ||
| 13751-0J210 |
2SZFE..SCP90..FRP T=5.50,(L) |
16 | ||
| 13751-0J280 |
2SZFE..SCP90..FRP T=5.64,(L) |
16 | ||
| 13751-23090 |
2SZFE..SCP90..FRP T=5.24,(J) |
16 | ||
| 13751-0J230 |
2SZFE..SCP90..FRP T=5.54,(L) |
16 | ||
| 13751-23050 |
2SZFE..SCP90..FRP T=5.16,(J) |
16 | ||
| 13751-23060 |
2SZFE..SCP90..FRP T=5.18,(J) |
16 | ||
| 13751-0J290 |
2SZFE..SCP90..FRP T=5.66,(L) |
16 | ||
| 13751-0J270 |
2SZFE..SCP90..FRP T=5.62,(L) |
16 | ||
| 13751-23130 |
2SZFE..SCP90..FRP T=5.32,(J) |
16 | ||
| 13751-0J300 |
2SZFE..SCP90..FRP T=5.68,(L) |
16 | ||
| 13751-23070 |
2SZFE..SCP90..FRP T=5.20,(J) |
16 | ||
| 13751-23190 |
2SZFE..SCP90..FRP T=5.44,(J) |
16 | ||
| 13751-23080 |
2SZFE..SCP90..FRP T=5.22,(J) |
16 | ||
| 13751-23220 |
2SZFE..SCP90..FRP T=5.50,(J) |
16 | ||
| 13751-23100 |
2SZFE..SCP90..FRP T=5.26,(J) |
16 | ||
| 13751-23180 |
2SZFE..SCP90..FRP T=5.42,(J) |
16 | ||
| 13751-23140 |
2SZFE..SCP90..FRP T=5.34,(J) |
16 | ||
| 13751-23210 |
2SZFE..SCP90..FRP T=5.48,(J) |
16 | ||
| 13751-23200 |
2SZFE..SCP90..FRP T=5.46,(J) |
16 | ||
| 13751-23240 |
2SZFE..SCP90..FRP T=5.54,(J) |
16 | ||
| 13751-23110 |
2SZFE..SCP90..FRP T=5.28,(J) |
16 | ||
| 13751-23120 |
2SZFE..SCP90..FRP T=5.30,(J) |
16 | ||
| 13751-23160 |
2SZFE..SCP90..FRP T=5.38,(J) |
16 | ||
| 13751-23150 |
2SZFE..SCP90..FRP T=5.36,(J) |
16 | ||
| 13751-23270 |
2SZFE..SCP90..FRP T=5.60,(J) |
16 | ||
| 13751-23250 |
2SZFE..SCP90..FRP T=5.56,(J) |
16 | ||
| 13751-23260 |
2SZFE..SCP90..FRP T=5.58,(J) |
16 | ||
| 13751-23030 |
2SZFE..SCP90..FRP T=5.12,(J) |
16 | ||
| 13751-23170 |
2SZFE..SCP90..FRP T=5.40,(J) |
16 | ||
| 13751-23300 |
2SZFE..SCP90..FRP T=5.66,(J) |
16 | ||
| 13751-23310 |
2SZFE..SCP90..FRP T=5.68,(J) |
16 | ||
| 13751-23230 |
2SZFE..SCP90..FRP T=5.52,(J) |
16 | ||
| 13751-23280 |
2SZFE..SCP90..FRP T=5.62,(J) |
16 | ||
| 13751-23290 |
2SZFE..SCP90..FRP T=5.64,(J) |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-0J050 |
2SZFE..SCP90..FRP T=5.18,(L) |
16 | ||
| 13751-0J080 |
2SZFE..SCP90..FRP T=5.24,(L) |
16 | ||
| 13751-0J040 |
2SZFE..SCP90..FRP T=5.16,(L) |
16 | ||
| 13751-0J110 |
2SZFE..SCP90..FRP T=5.30,(L) |
16 | ||
| 13751-0J070 |
2SZFE..SCP90..FRP T=5.22,(L) |
16 | ||
| 13751-0J090 |
2SZFE..SCP90..FRP T=5.26,(L) |
16 | ||
| 13751-0J140 |
2SZFE..SCP90..FRP T=5.36,(L) |
16 | ||
| 13751-0J020 |
2SZFE..SCP90..FRP T=5.12,(L) |
16 | ||
| 13751-0J150 |
2SZFE..SCP90..FRP T=5.38,(L) |
16 | ||
| 13751-0J120 |
2SZFE..SCP90..FRP T=5.32,(L) |
16 | ||
| 13751-0J030 |
2SZFE..SCP90..FRP T=5.14,(L) |
16 | ||
| 13751-0J200 |
2SZFE..SCP90..FRP T=5.48,(L) |
16 | ||
| 13751-0J160 |
2SZFE..SCP90..FRP T=5.40,(L) |
16 | ||
| 13751-0J060 |
2SZFE..SCP90..FRP T=5.20,(L) |
16 | ||
| 13751-0J170 |
2SZFE..SCP90..FRP T=5.42,(L) |
16 | ||
| 13751-0J100 |
2SZFE..SCP90..FRP T=5.28,(L) |
16 | ||
| 13751-0J250 |
2SZFE..SCP90..FRP T=5.58,(L) |
16 | ||
| 13751-0J130 |
2SZFE..SCP90..FRP T=5.34,(L) |
16 | ||
| 13751-0J190 |
2SZFE..SCP90..FRP T=5.46,(L) |
16 | ||
| 13751-0J260 |
2SZFE..SCP90..FRP T=5.60,(L) |
16 | ||
| 13751-0J180 |
2SZFE..SCP90..FRP T=5.44,(L) |
16 | ||
| 13751-23040 |
2SZFE..SCP90..FRP T=5.14,(J) |
16 | ||
| 13751-0J240 |
2SZFE..SCP90..FRP T=5.56,(L) |
16 | ||
| 13751-0J220 |
2SZFE..SCP90..FRP T=5.52,(L) |
16 | ||
| 13751-0J210 |
2SZFE..SCP90..FRP T=5.50,(L) |
16 | ||
| 13751-0J280 |
2SZFE..SCP90..FRP T=5.64,(L) |
16 | ||
| 13751-23090 |
2SZFE..SCP90..FRP T=5.24,(J) |
16 | ||
| 13751-0J230 |
2SZFE..SCP90..FRP T=5.54,(L) |
16 | ||
| 13751-23050 |
2SZFE..SCP90..FRP T=5.16,(J) |
16 | ||
| 13751-23060 |
2SZFE..SCP90..FRP T=5.18,(J) |
16 | ||
| 13751-0J290 |
2SZFE..SCP90..FRP T=5.66,(L) |
16 | ||
| 13751-0J270 |
2SZFE..SCP90..FRP T=5.62,(L) |
16 | ||
| 13751-23130 |
2SZFE..SCP90..FRP T=5.32,(J) |
16 | ||
| 13751-0J300 |
2SZFE..SCP90..FRP T=5.68,(L) |
16 | ||
| 13751-23070 |
2SZFE..SCP90..FRP T=5.20,(J) |
16 | ||
| 13751-23190 |
2SZFE..SCP90..FRP T=5.44,(J) |
16 | ||
| 13751-23080 |
2SZFE..SCP90..FRP T=5.22,(J) |
16 | ||
| 13751-23220 |
2SZFE..SCP90..FRP T=5.50,(J) |
16 | ||
| 13751-23100 |
2SZFE..SCP90..FRP T=5.26,(J) |
16 | ||
| 13751-23180 |
2SZFE..SCP90..FRP T=5.42,(J) |
16 | ||
| 13751-23140 |
2SZFE..SCP90..FRP T=5.34,(J) |
16 | ||
| 13751-23210 |
2SZFE..SCP90..FRP T=5.48,(J) |
16 | ||
| 13751-23200 |
2SZFE..SCP90..FRP T=5.46,(J) |
16 | ||
| 13751-23240 |
2SZFE..SCP90..FRP T=5.54,(J) |
16 | ||
| 13751-23110 |
2SZFE..SCP90..FRP T=5.28,(J) |
16 | ||
| 13751-23120 |
2SZFE..SCP90..FRP T=5.30,(J) |
16 | ||
| 13751-23160 |
2SZFE..SCP90..FRP T=5.38,(J) |
16 | ||
| 13751-23150 |
2SZFE..SCP90..FRP T=5.36,(J) |
16 | ||
| 13751-23270 |
2SZFE..SCP90..FRP T=5.60,(J) |
16 | ||
| 13751-23250 |
2SZFE..SCP90..FRP T=5.56,(J) |
16 | ||
| 13751-23260 |
2SZFE..SCP90..FRP T=5.58,(J) |
16 | ||
| 13751-23030 |
2SZFE..SCP90..FRP T=5.12,(J) |
16 | ||
| 13751-23170 |
2SZFE..SCP90..FRP T=5.40,(J) |
16 | ||
| 13751-23300 |
2SZFE..SCP90..FRP T=5.66,(J) |
16 | ||
| 13751-23310 |
2SZFE..SCP90..FRP T=5.68,(J) |
16 | ||
| 13751-23230 |
2SZFE..SCP90..FRP T=5.52,(J) |
16 | ||
| 13751-23280 |
2SZFE..SCP90..FRP T=5.62,(J) |
16 | ||
| 13751-23290 |
2SZFE..SCP90..FRP T=5.64,(J) |
16 | ||
| Common parts | ||||
| 90105-10461 | ||||
| 90109-08275 | ||||
| 90179-06080 | ||||
| 91551-80610 | ||||
| 91551-80616 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
