SCP90L-CHGGKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 2SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2SZFE..FRP

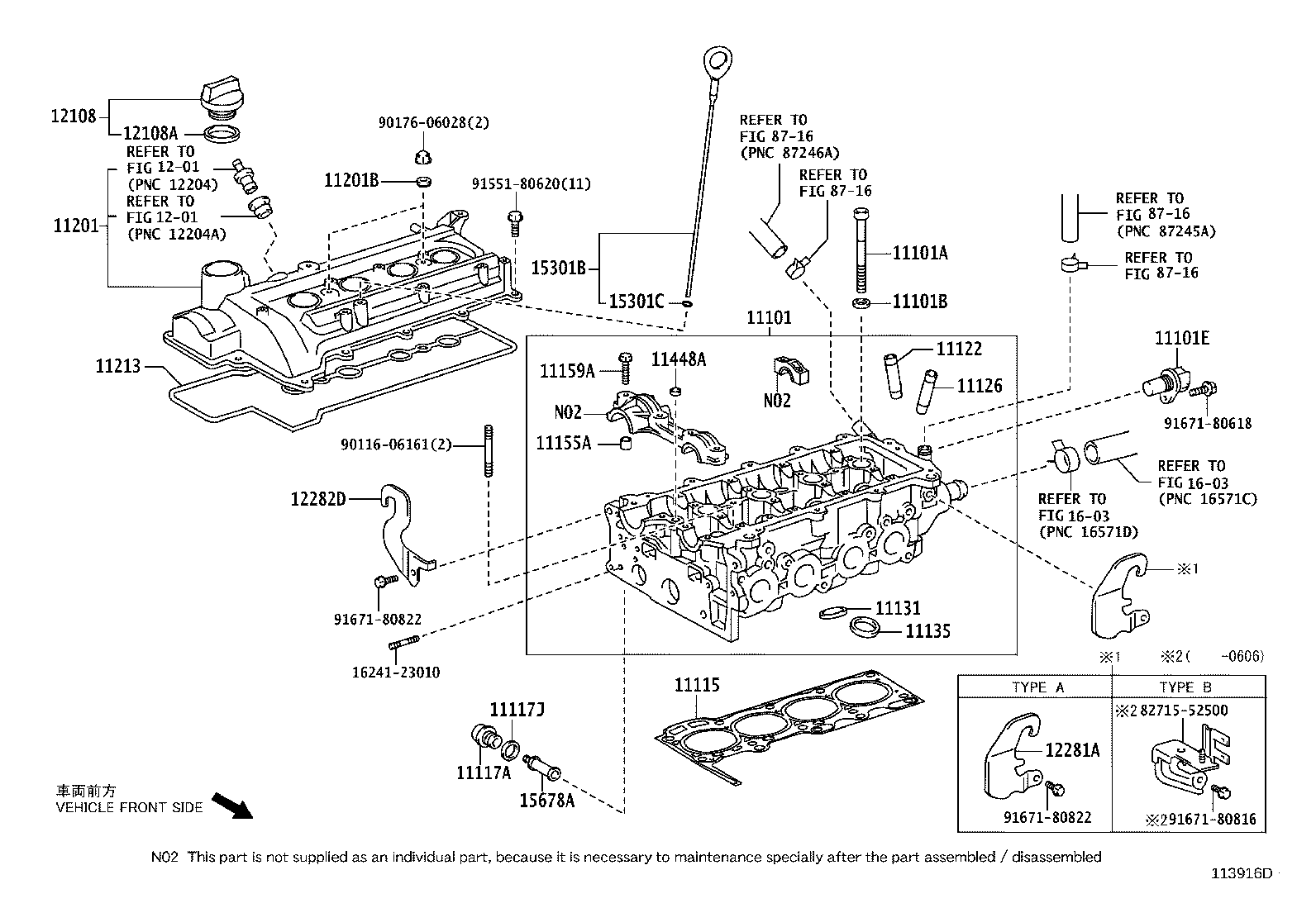

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11115 11117A 11117J 11122 11126 11131 11135 11155A 11159A 11201 11201B 11213 11448A 1201 1201 12108 12108A 12281A 12282D 15301B 15301C 15678A 1603 1603 1624123010 8271552500 8716 8716 8716 8716 9011606161 9017606028 9155180620 9167180618 9167180816 9167180822 9167180822
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-0J030

2SZFE..SCP90..FRP

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02143

2SZFE..SCP90..FRP

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10136

2SZFE..SCP90..FRP

 10
11101E - SENSOR, CAM POSITION
90080-19020

2SZFE..SCP90..FRP

 1
11115 - GASKET, CYLINDER HEAD
11115-23042

2SZFE..SCP90..FRP

T=0.41

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14013

2SZFE..SCP90..FRP

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009

2SZFE..SCP90..FRP

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-21010

2SZFE..SCP90..FRP

O/S 0.05

 8
11122-21010

2SZFE..SCP90..FRP

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-21010

2SZFE..SCP90..FRP

O/S 0.05

 8
11122-21010

2SZFE..SCP90..FRP

STD

 8
11131 - SEAT, INTAKE VALVE
11131-0J010

2SZFE..SCP90..FRP

STD,(L)

 8
11131-23010

2SZFE..SCP90..FRP

STD,(J)

 8
11132-23010

2SZFE..SCP90..FRP

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11136-23050

2SZFE..SCP90..FRP

O/S 0.03

 8
11135-23050

2SZFE..SCP90..FRP

STD,(J)

 8
11135-0J010

2SZFE..SCP90..FRP

STD,(L)

 8
11155A - PIN, RING W/HEAD
90253-08004

2SZFE..SCP90..FRP

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-06884

2SZFE..SCP90..FRP

 20
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0J010

2SZFE..SCP90..FRP

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

2SZFE..SCP90..FRP

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-0J010

2SZFE..SCP90..FRP

 1
11448A - ORIFICE, CYLINDER HEAD OIL
11448-23010

2SZFE..SCP90..FRP

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

2SZFE..SCP90..FRP

(J)

 1
12180-0N010

2SZFE..SCP90..FRP

(L)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90080-43020

2SZFE..SCP90..FRP

(L)

 1
90430-37140

2SZFE..SCP90..FRP

(J)

 1
12281A - HANGER, ENGINE, NO.1
12281-23021

2SZFE..SCP90..FRP

 1
12282D - HANGER, ENGINE, NO.2
12282-23010

2SZFE..SCP90..FRP

 1
15301B - GAGE SUB-ASSY, OIL LEVEL
15301-0J040

2SZFE..SCP90..FRP

 1
15301C - RING, O(FOR OIL LEVEL GAGE)
96741-19005

2SZFE..SCP90..FRP

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

2SZFE..SCP90..FRP

 1
Common parts
16241-23010
82715-52500
90116-06161
90176-06028
91551-80620
91671-80618
91671-80816
91671-80822
Linked diagrams
1201
1603
8716
