SCP90L-CGGGKW (2006)
Toyota Yaris (Frp)

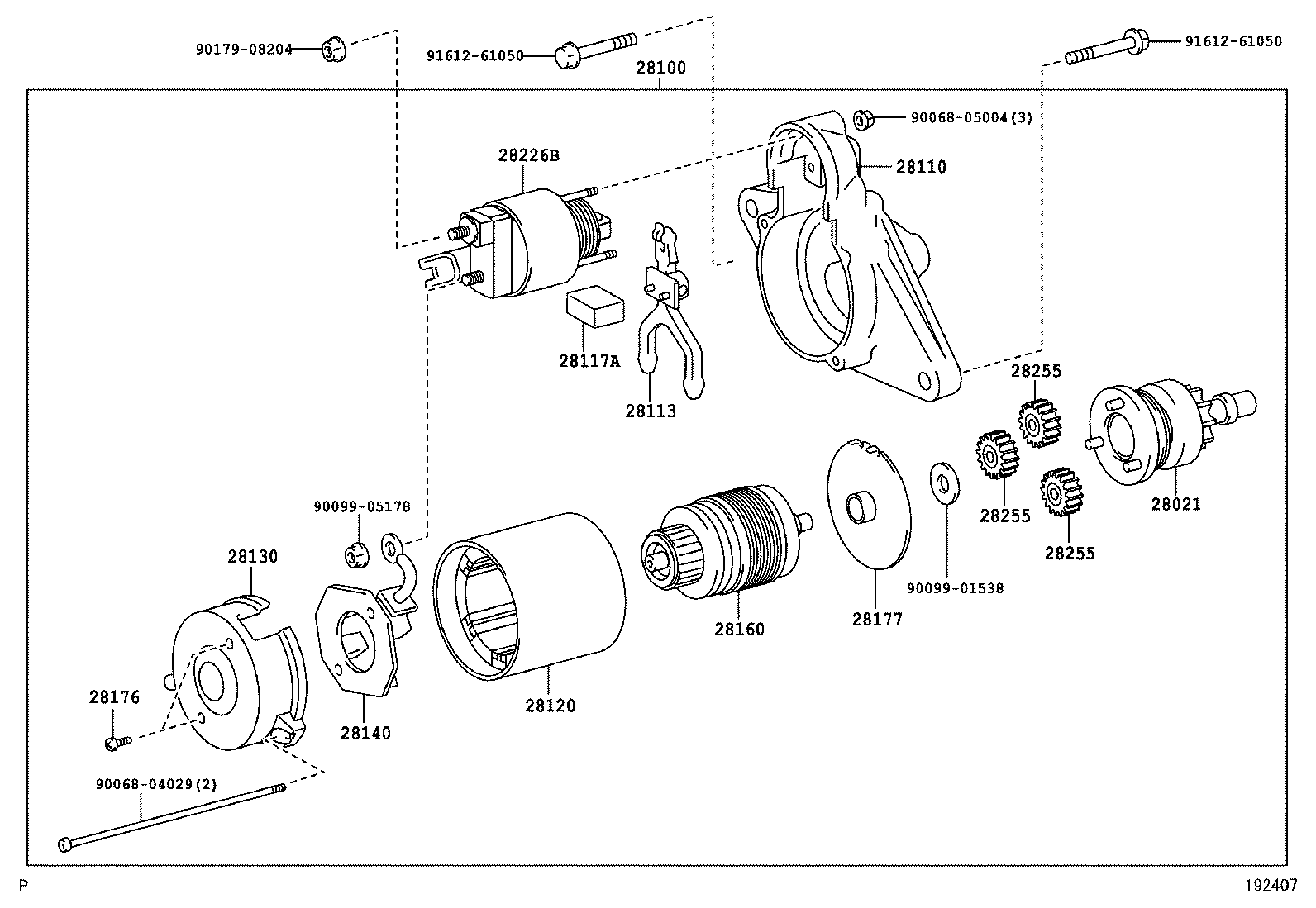

(0511-0701)2SZFE..FRP
12V 1.3KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-0J050 |
2SZFE..SCP90..FRP |
1 | ||
| 28021-0Q040 |
2SZFE..SCP90..FRP |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0J050 |
2SZFE..SCP90..FRP 12V 1.3KW |
1 | ||
| 28100-0J031 |
2SZFE..SCP90..FRP 12V 1.3KW |
1 | ||
| 28100-0J030 |
2SZFE..SCP90..FRP 12V 1.3KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0J030 |
2SZFE..SCP90..FRP |
1 | ||
| 28110-0J031 |
2SZFE..SCP90..FRP |
1 | ||
| 28110-0J050 |
2SZFE..SCP90..FRP |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28113-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28117-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q040 |
2SZFE..SCP90..FRP |
1 | ||
| 28120-0J050 |
2SZFE..SCP90..FRP |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0J030 |
2SZFE..SCP90..FRP |
1 | ||
| 28130-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28140-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28160-0D180 |
2SZFE..SCP90..FRP |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 90099-00323 |
2SZFE..SCP90..FRP |
2 | ||
| 90068-00015 |
2SZFE..SCP90..FRP |
2 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28177-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-0Q040 |
2SZFE..SCP90..FRP |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0D090 |
2SZFE..SCP90..FRP |
3 | ||
| 28255-37050 |
2SZFE..SCP90..FRP |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0D090 |
2SZFE..SCP90..FRP |
3 | ||
| 28255-37050 |
2SZFE..SCP90..FRP |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0D090 |
2SZFE..SCP90..FRP |
3 | ||
| 28255-37050 |
2SZFE..SCP90..FRP |
3 | ||
| Common parts | ||||
| 90068-04029 | ||||
| 90068-05004 | ||||
| 90099-01538 | ||||
| 90099-05178 | ||||
| 90179-08204 | ||||
| 91612-61050 | ||||

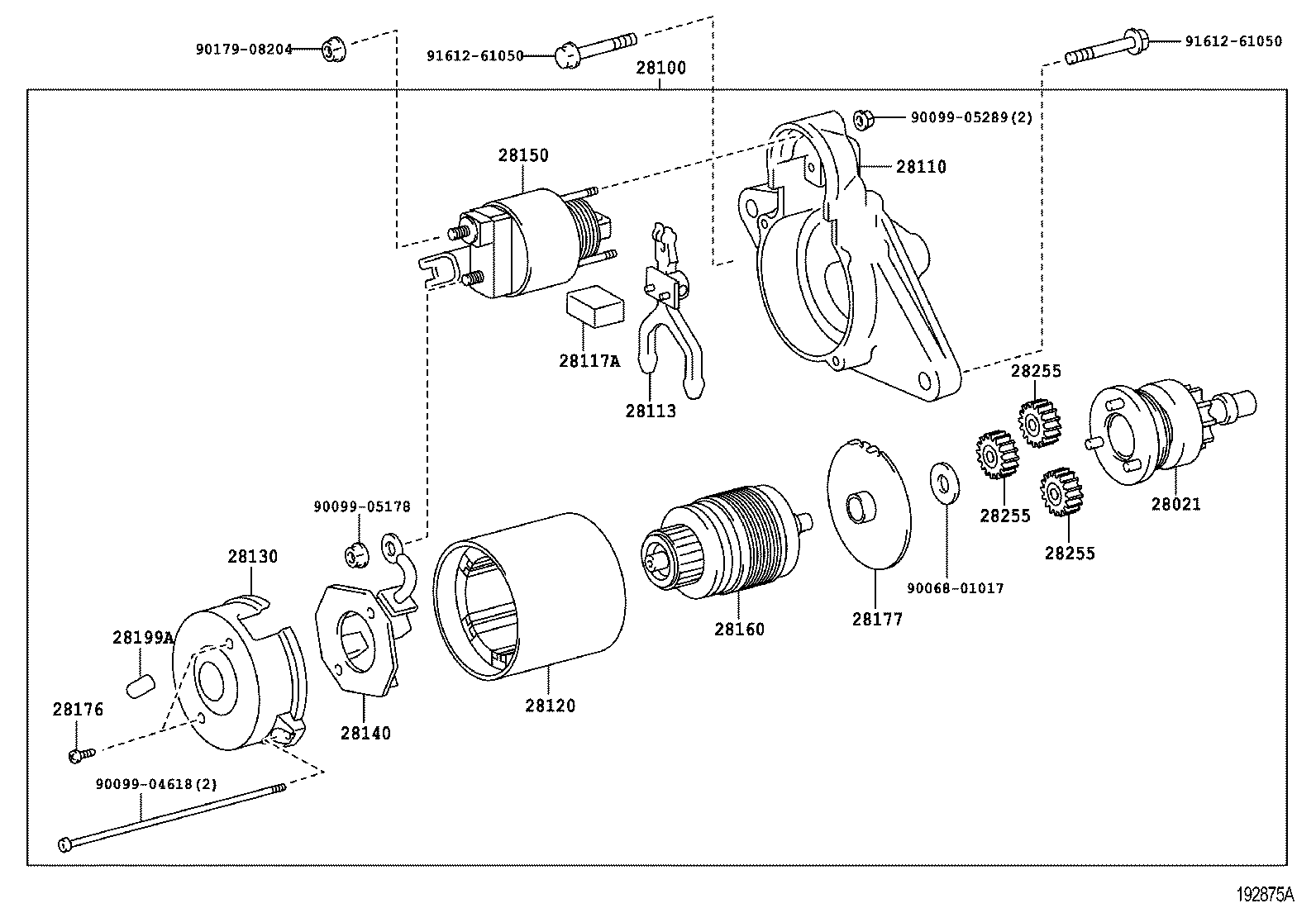

(0701-0811)2SZFE..FRP
12V 1.3KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-0J050 |
2SZFE..SCP90..FRP |
1 | ||
| 28021-0Q040 |
2SZFE..SCP90..FRP |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0J050 |
2SZFE..SCP90..FRP 12V 1.3KW |
1 | ||
| 28100-0J031 |
2SZFE..SCP90..FRP 12V 1.3KW |
1 | ||
| 28100-0J030 |
2SZFE..SCP90..FRP 12V 1.3KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0J030 |
2SZFE..SCP90..FRP |
1 | ||
| 28110-0J031 |
2SZFE..SCP90..FRP |
1 | ||
| 28110-0J050 |
2SZFE..SCP90..FRP |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28113-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28117-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q040 |
2SZFE..SCP90..FRP |
1 | ||
| 28120-0J050 |
2SZFE..SCP90..FRP |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0J030 |
2SZFE..SCP90..FRP |
1 | ||
| 28130-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28140-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40090 |
2SZFE..SCP90..FRP |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28160-0D180 |
2SZFE..SCP90..FRP |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 90099-00323 |
2SZFE..SCP90..FRP |
2 | ||
| 90068-00015 |
2SZFE..SCP90..FRP |
2 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-37050 |
2SZFE..SCP90..FRP |
1 | ||
| 28177-0D090 |
2SZFE..SCP90..FRP |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-0D180 |
2SZFE..SCP90..FRP |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0D090 |
2SZFE..SCP90..FRP |
3 | ||
| 28255-37050 |
2SZFE..SCP90..FRP |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0D090 |
2SZFE..SCP90..FRP |
3 | ||
| 28255-37050 |
2SZFE..SCP90..FRP |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0D090 |
2SZFE..SCP90..FRP |
3 | ||
| 28255-37050 |
2SZFE..SCP90..FRP |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-04618 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90179-08204 | ||||
| 91612-61050 | ||||
