SCP12R-CHPGKW (2002)

Toyota Yaris (Frp)

Production May 2002 - Nov 2005
Engine 2SZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )FRP..RHD..4FC

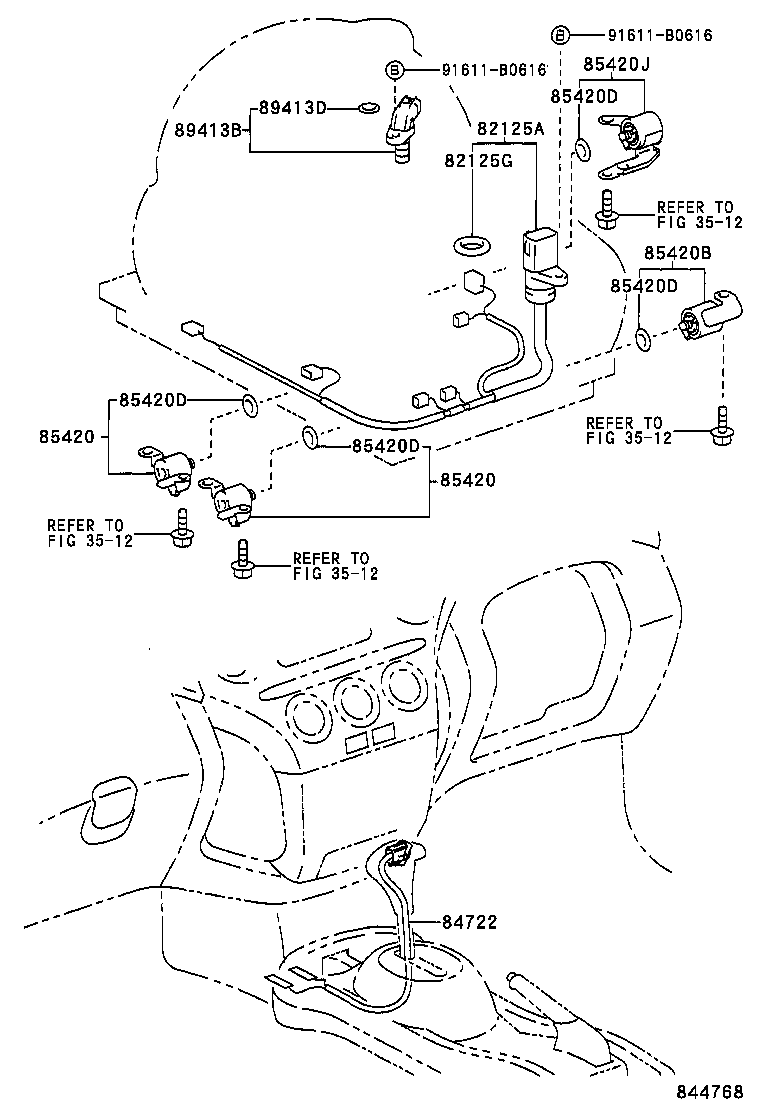

Click highlighted areas on diagram

diagram 3512 3512 3512 3512 82125A 82125G 84722 85420 85420 85420B 85420D 85420D 85420D 85420D 85420J 89413B 89413D 91611B0616 91611B0616
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-52020

SCP12..4FC

 1
82125-52020

SCP12..FRP..4FC

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
90301-21009

SCP12..4FC

 1
90301-21009

SCP12..FRP..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-52070G0

SCP12..RHD..4FC

MIST GREEN,TRIM7#

 1
84722-52070B2

SCP12..FRP..RHD..4FC

DK.GRAY,TRIM10,11

 1
84722-52070B0

SCP12..RHD..4FC

MD.GRAY,TRIM1#

 1
85420 - SOLENOID ASSY, TRANSMISSION
35250-52020

SCP12..4FC

 2
35250-52020

SCP12..FRP..4FC

 2
85420 - SOLENOID ASSY, TRANSMISSION
35250-52020

SCP12..4FC

 2
35250-52020

SCP12..FRP..4FC

 2
85420B - SOLENOID ASSY, TRANSMISSION
35250-52050

SCP12..4FC

 1
35250-52050

SCP12..FRP..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

SCP12..4FC

 4
90301-06004

SCP12..FRP..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

SCP12..4FC

 4
90301-06004

SCP12..FRP..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

SCP12..4FC

 4
90301-06004

SCP12..FRP..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

SCP12..4FC

 4
90301-06004

SCP12..FRP..4FC

 4
85420J - SOLENOID ASSY, TRANSMISSION
35250-52060

SCP12..4FC

DENSO

 1
35250-52070

SCP12..4FC

AISIN

 1
35250-52060

SCP12..FRP..4FC

DENSO

 1
35250-52070

SCP12..FRP..4FC

AISIN

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

SCP12..4FC

 1
89413-32010

SCP12..FRP..4FC

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

SCP12..4FC

 1
90301-11008

SCP12..FRP..4FC

 1
Common parts
91611-B0616
Linked diagrams
3512
