SCP12R-CGMNKW (2002)

Toyota Yaris (Frp)

Production May 2002 - Feb 2003
Engine 2SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )2SZFE..FRP

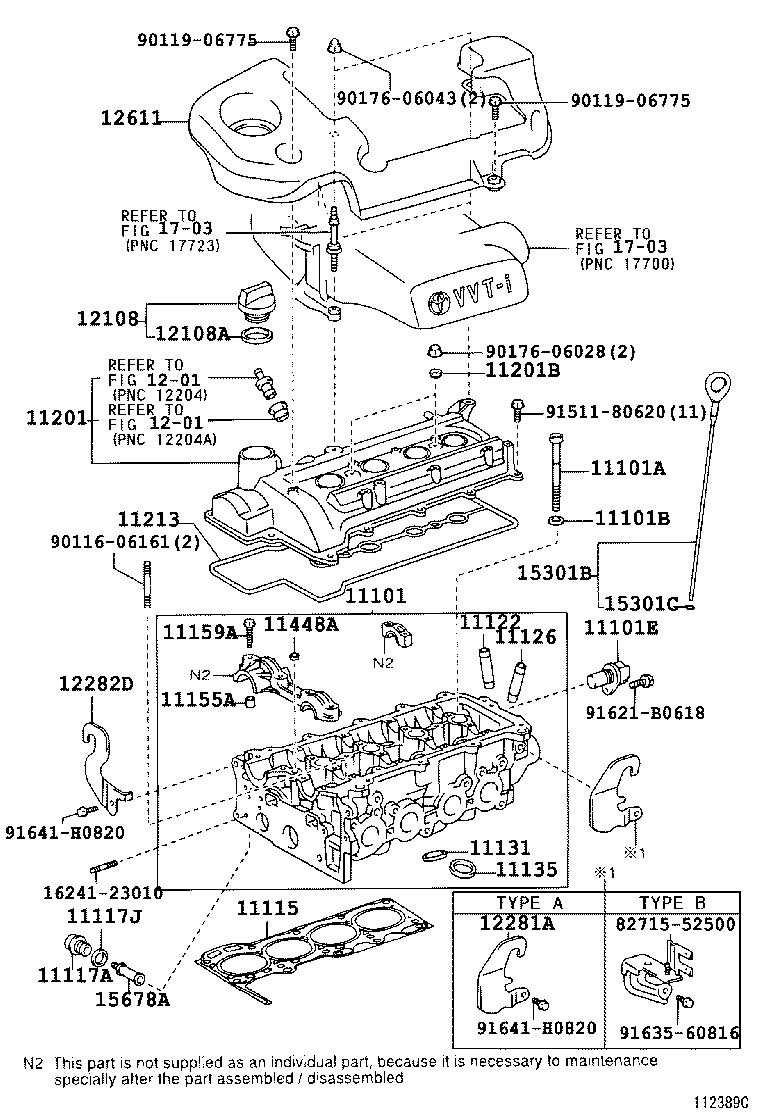

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11115 11117A 11117J 11122 11126 11131 11135 11155A 11159A 11201 11201B 11213 11448A 1201 1201 12108 12108A 12281A 12282D 12611 15301B 15301C 15678A 1624123010 1703 1703 8271552500 9011606161 9011906775 9011906775 9017606028 9017606043 9151180620 91621B0618 9163560816 91641H0820 91641H0820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-0J010

1SZFE,2SZFE..SCP1#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02143

1SZFE,2SZFE..SCP1#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10136

1SZFE,2SZFE..SCP1#

 10
11101E - SENSOR, CAM POSITION
90080-19020

2SZFE..SCP12

 1
11115 - GASKET, CYLINDER HEAD
11115-23042

2SZFE..SCP12

T=0.41

 1
11115-23041

2SZFE..SCP12

T=0.41

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14013

1SZFE,2SZFE..SCP1#

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009

1SZFE,2SZFE..SCP1#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-21010

1SZFE,2SZFE..SCP1#

O/S 0.05

 8
11122-21010

1SZFE,2SZFE..SCP1#

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-21010

1SZFE,2SZFE..SCP1#

O/S 0.05

 8
11122-21010

1SZFE,2SZFE..SCP1#

STD

 8
11131 - SEAT, INTAKE VALVE
11131-23010

1SZFE,2SZFE..SCP1#

STD,(J)

 8
11132-23010

1SZFE,2SZFE..SCP1#

O/S 0.03

 8
11131-0J010

1SZFE,2SZFE..SCP1#

STD,(L)

 8
11135 - SEAT, EXHAUST VALVE
11135-23020

1SZFE,2SZFE..SCP1#

STD,(J)

 8
11136-23020

1SZFE,2SZFE..SCP1#

O/S 0.03

 8
11136-23050

1SZFE,2SZFE..SCP1#

O/S 0.03

 8
11135-23050

1SZFE,2SZFE..SCP1#

STD,(J)

 8
11135-0J010

1SZFE,2SZFE..SCP1#

STD,(L)

 8
11155A - PIN, RING W/HEAD
90253-08004

1SZFE,2SZFE..SCP1#

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-06884

1SZFE,2SZFE..SCP1#

 20
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-23070

1SZFE,2SZFE..SCP1#

(J)

 1
11201-0J010

2SZFE..SCP12

 1
11201-0J010

1SZFE,2SZFE..SCP1#

(L)

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

1SZFE,2SZFE..SCP1#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-0J010

1SZFE,2SZFE..SCP1#

 1
11448A - ORIFICE, CYLINDER HEAD OIL
11448-23010

1SZFE,2SZFE..SCP1#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

1SZFE,2SZFE..SCP1#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1SZFE,2SZFE..SCP1#

 1
12281A - HANGER, ENGINE, NO.1
12281-23021

1SZFE,2SZFE..SCP1#

 1
12282D - HANGER, ENGINE, NO.2
12282-23010

1SZFE,2SZFE..SCP1#

 1
12611 - COVER, ENGINE, NO.1
12611-0J010

2SZFE..SCP12

 1
15301B - GAGE SUB-ASSY, OIL LEVEL
15301-0J020

2SZFE..SCP12

 1
15301C - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1SZFE,2SZFE..SCP1#

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

1SZFE,2SZFE..SCP1#

 1
Common parts
16241-23010
82715-52500
90116-06161
90119-06775
90176-06028
90176-06043
91511-80620
91621-B0618
91635-60816
91641-H0820
Linked diagrams
1201
1703
