SCP12L-CGMNKW (2002)

Toyota Yaris (Frp)

Production May 2002 - Feb 2003
Engine 2SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205-0302)2SZFE..FRP ; (0302- )1SZFE,2SZFE..FRP

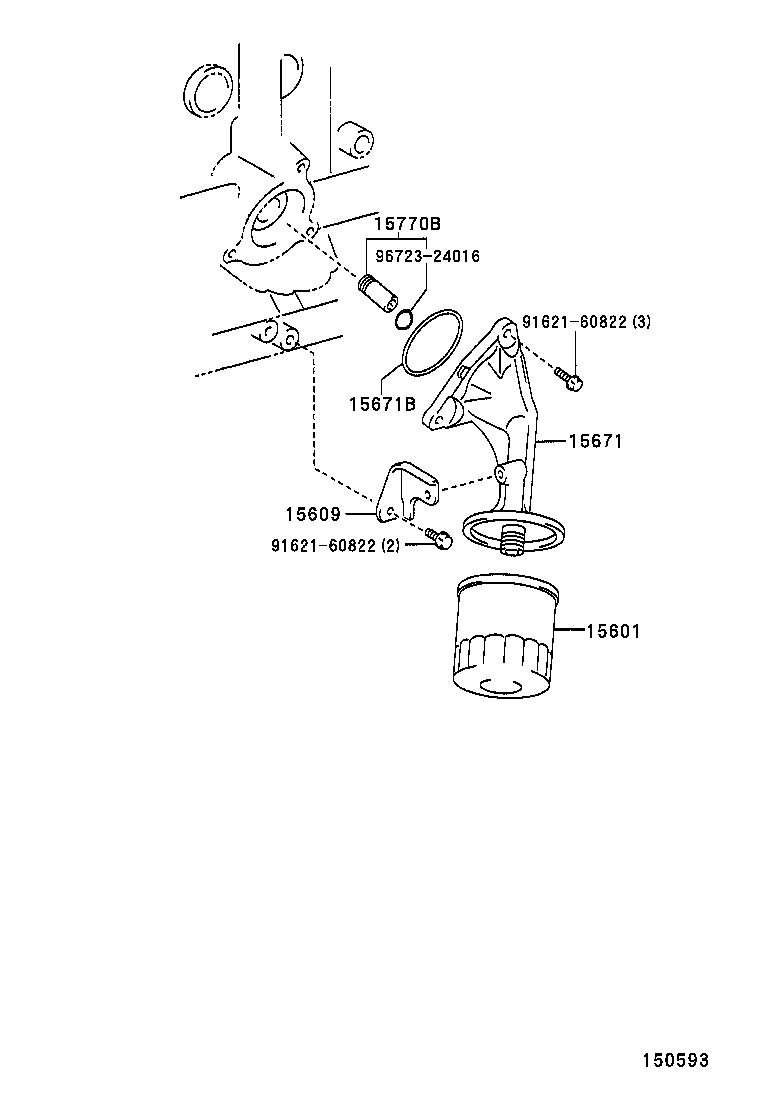

Click highlighted areas on diagram

diagram 15601 15609 15671 15671B 15770B 9162160822 9162160822 9672324016
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-10003

1SZFE,2SZFE..SCP1#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-0J010

2SZFE..SCP12

 1
15671 - BRACKET, OIL FILTER
15677-23010

2SZFE..SCP12

 1
15671B - GASKET, OIL FILTER BRACKET
90301-58004

2SZFE..SCP12

 1
15770B - PIPE ASSY, OIL
15770-23010

2SZFE..SCP12

 1
Common parts
91621-60822
96723-24016
