SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )FRP..5FS

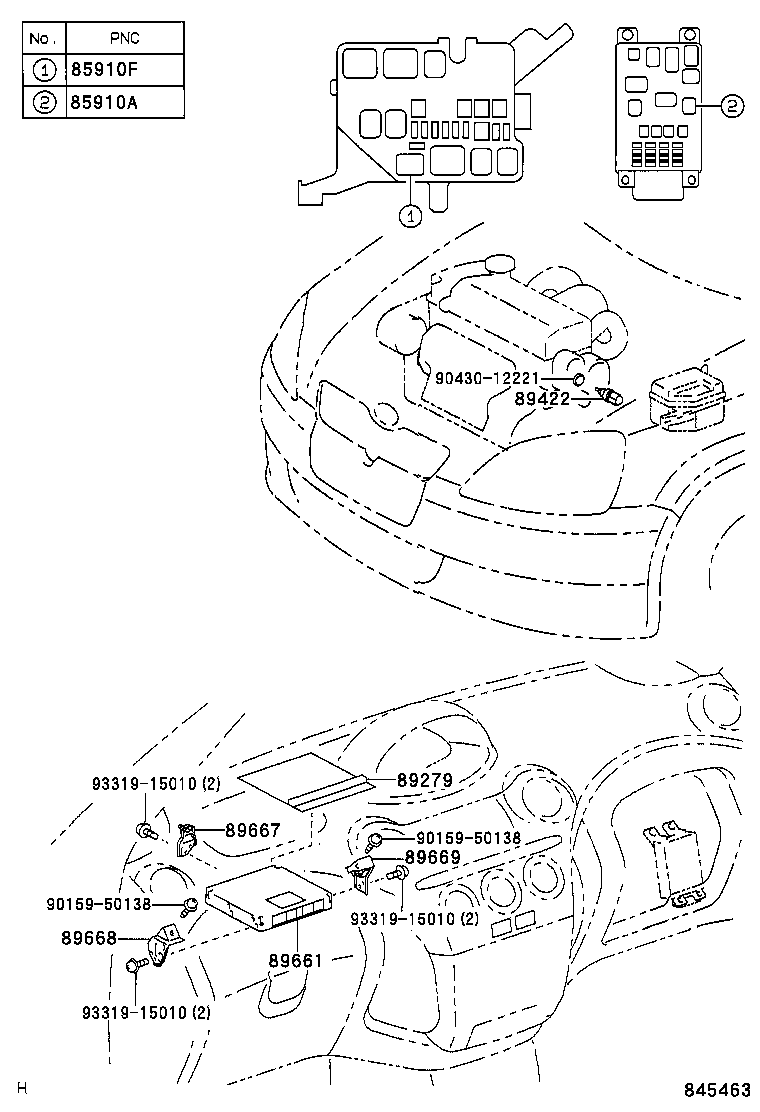

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89422 89661 89667 89668 89669 9015950138 9015950138 9043012221 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019

SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F

PART NUMBER LABEL=90080-87019

 1
90080-87019

SCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD

 1
90080-87013

SCP1#

PART NUMBER LABEL=90080-87013

 1
90080-87019

SCP1#

PART NUMBER LABEL=90080-87019

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87019

SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F

PART NUMBER LABEL=90080-87019

 1
90080-87013

SCP1#

PART NUMBER LABEL=90080-87013

 1
90080-87019

SCP1#

PART NUMBER LABEL=90080-87019

 1
90080-87019

SCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-52110

SCP10..FRP..5FS

 1
89279-52050

SCP1#

 1
89279-52050

SCP1#..FRP..(4FC,5F)

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

SCP1#..FRP

NTC

 1
89422-16010

SCP1#

 1
89422-16010

SCP1#..FRP

DENSO

 1
89422-16010

SCP1#..FRP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0D010

SCP10

PART NUMBER LABEL=89661-0D010

 1
89661-0D211

SCP10..FRP..(SOL,TRSTD)..5F

PART NUMBER LABEL=89661-0D211

 1
89661-0D210

SCP10..FRP..(SOL,TRSTD)..5F

PART NUMBER LABEL=89661-0D210

 1
89661-0D180

SCP10..FRP..5FS

PART NUMBER LABEL=89661-0D180

 1
89661-0D212

SCP10..FRP..(SOL,TRSTD)..5F

PART NUMBER LABEL=89661-0D212

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52030

SCP10

 1
89667-52140

SCP10..FRP..RHD..5FS

 1
89667-52030

SCP10..FRP..(SOL,TRSTD)..5F

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52030

SCP10..RHD

 1
89668-52030

SCP10..FRP..RHD..5F

 1
89668-52150

SCP10..FRP..RHD..5FS

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-52030

SCP10..RHD

 1
89669-52100

SCP10..FRP..RHD..5FS

 1
89669-52030

SCP10..FRP..RHD..5F

 1
Common parts
90159-50138
90430-12221
93319-15010
