SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )FRP..5FS

Click highlighted areas on diagram

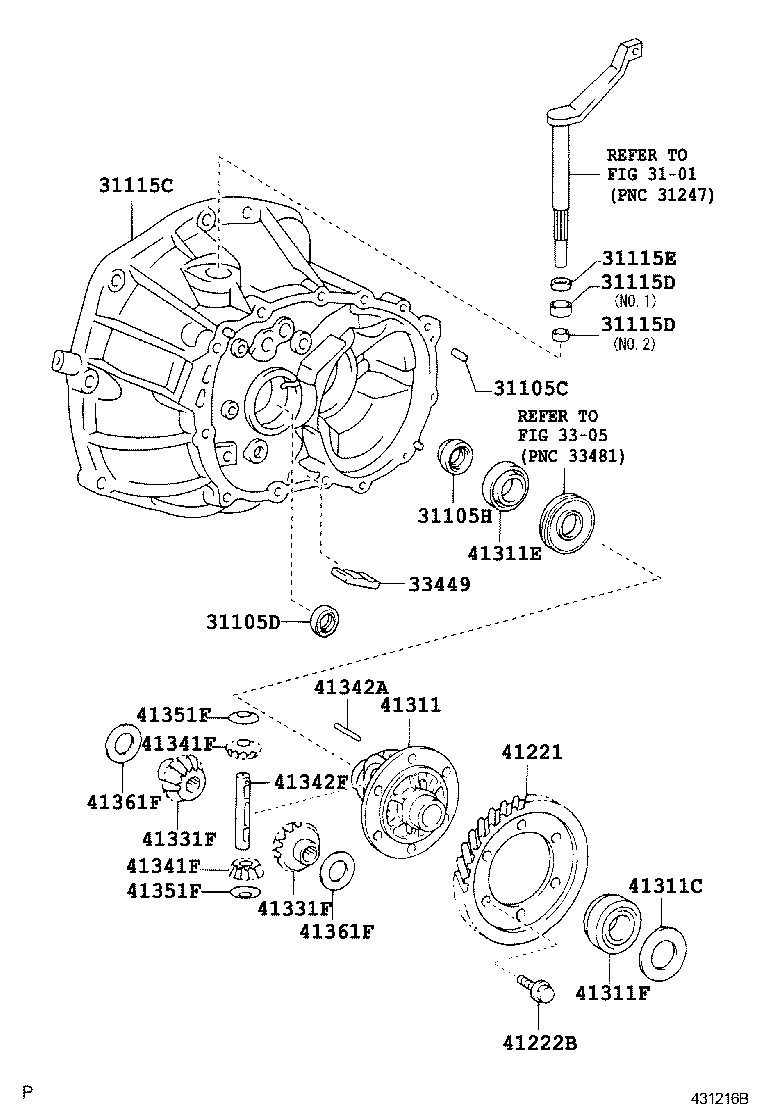

C551A

diagram 3101 31105C 31105D 31105H 31115C 31115D 31115D 31115E 3305 33449 41221 41222B 41311 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-08054

SCP10..FRP

 2
90250-08054

SCP10

 2
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-23004

SCP10

 1
90311-23008

SCP10..FRP

 1
90311-23004

SCP10..FRP

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-38072

SCP10

 1
90311-38072

SCP10..FRP

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-52040

SCP10..FRP..5FS

 1
31115-52030

SCP10

 1
31115-52031

SCP10..FRP..5F

 1
31115D - BUSH, BIMETAL FORMED(FOR FRONT TRANSAXLE CASE)
90384-15007

SCP10..FRP..5FS

NO.2

 1
90384-20017

SCP10..FRP..5FS

NO.1

 1
31115D - BUSH, BIMETAL FORMED(FOR FRONT TRANSAXLE CASE)
90384-15007

SCP10..FRP..5FS

NO.2

 1
90384-20017

SCP10..FRP..5FS

NO.1

 1
31115E - None
90311-20006

SCP10..FRP..5FS

 1
33449 - MAGNET, TRANSMISSION
33449-60010

SCP10

 1
33449-60010

SCP10..FRP

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-52040

SCP10

 1
41221-52040

SCP10..FRP..(SOL,TRSTD)

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12313

SCP10

 6
90105-12313

SCP10..FRP..(SOL,TRSTD)

 6
41311 - CASE, FRONT DIFFERENTIAL
41311-52040

SCP10

 1
41311-52040

SCP10..FRP..(SOL,TRSTD)

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41002

SCP10

T=1.25,MARK B

 1
90564-41008

SCP10

T=1.55,MARK H

 1
90564-41004

SCP10

T=1.35,MARK D

 1
90564-41003

SCP10

T=1.30,MARK C

 1
90564-41009

SCP10

T=1.60,MARK J

 1
90564-41001

SCP10

T=1.20,MARK A

 1
90564-41007

SCP10

T=1.50,MARK G

 1
90564-41005

SCP10

T=1.40,MARK E

 1
90564-41012

SCP10

T=1.75,MARK M

 1
90564-41011

SCP10

T=1.70,MARK L

 1
90564-41006

SCP10..FRP

T=1.45,MARK F

 1
90564-41013

SCP10

T=1.80,MARK N

 1
90564-41008

SCP10..FRP

T=1.55,MARK H

 1
90564-41007

SCP10..FRP

T=1.50,MARK G

 1
90564-41010

SCP10

T=1.65,MARK K

 1
90564-41001

SCP10..FRP

T=1.20,MARK A

 1
90564-41005

SCP10..FRP

T=1.40,MARK E

 1
90564-41004

SCP10..FRP

T=1.35,MARK D

 1
90564-41002

SCP10..FRP

T=1.25,MARK B

 1
90564-41010

SCP10..FRP

T=1.65,MARK K

 1
90564-41011

SCP10..FRP

T=1.70,MARK L

 1
90564-41012

SCP10..FRP

T=1.75,MARK M

 1
90564-41013

SCP10..FRP

T=1.80,MARK N

 1
90564-41006

SCP10

T=1.45,MARK F

 1
90564-41009

SCP10..FRP

T=1.60,MARK J

 1
90564-41003

SCP10..FRP

T=1.30,MARK C

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

SCP10

 1
90366-38004

SCP10..FRP

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-38029

SCP10

 1
90366-38029

SCP10..FRP..(SOL,TRSTD)

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-52010

SCP10..FRP

 2
41331-52010

SCP10

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-52010

SCP10..FRP

 2
41331-52010

SCP10

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-52010

SCP10..FRP

 2
41341-52011

SCP10..FRP

 2
41341-52010

SCP10

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-52010

SCP10..FRP

 2
41341-52011

SCP10..FRP

 2
41341-52010

SCP10

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

SCP1#

 1
90250-04053

NLP10,SCP1#..FRP..(SOL,TRSTD)

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-52010

SCP10

 1
41342-52010

SCP10..FRP..(SOL,TRSTD)

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-52020

SCP10..FRP..(SOL,TRSTD)

 2
41351-52020

SCP10

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-52020

SCP10..FRP..(SOL,TRSTD)

 2
41351-52020

SCP10

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-52110

SCP10

T=0.70

 2
41361-52080

SCP10

T=0.55

 2
41361-52090

SCP10

T=0.60

 2
41361-52120

SCP10

T=0.75

 2
41361-52070

SCP10

T=0.50

 2
41361-52130

SCP10

T=0.80

 2
41361-52150

SCP10

T=0.90

 2
41361-52140

SCP10

T=0.85

 2
41361-52100

SCP10

T=0.65

 2
41361-52160

SCP10

T=0.95

 2
41361-52130

SCP10..FRP..(SOL,TRSTD)

T=0.80

 2
41361-52090

SCP10..FRP..(SOL,TRSTD)

T=0.60

 2
41361-52120

SCP10..FRP..(SOL,TRSTD)

T=0.75

 2
41361-52110

SCP10..FRP..(SOL,TRSTD)

T=0.70

 2
41361-52160

SCP10..FRP..(SOL,TRSTD)

T=0.95

 2
41361-52150

SCP10..FRP..(SOL,TRSTD)

T=0.90

 2
41361-52080

SCP10..FRP..(SOL,TRSTD)

T=0.55

 2
41361-52100

SCP10..FRP..(SOL,TRSTD)

T=0.65

 2
41361-52140

SCP10..FRP..(SOL,TRSTD)

T=0.85

 2
41361-52070

SCP10..FRP..(SOL,TRSTD)

T=0.50

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-52110

SCP10

T=0.70

 2
41361-52080

SCP10

T=0.55

 2
41361-52090

SCP10

T=0.60

 2
41361-52120

SCP10

T=0.75

 2
41361-52070

SCP10

T=0.50

 2
41361-52130

SCP10

T=0.80

 2
41361-52150

SCP10

T=0.90

 2
41361-52140

SCP10

T=0.85

 2
41361-52100

SCP10

T=0.65

 2
41361-52160

SCP10

T=0.95

 2
41361-52130

SCP10..FRP..(SOL,TRSTD)

T=0.80

 2
41361-52090

SCP10..FRP..(SOL,TRSTD)

T=0.60

 2
41361-52120

SCP10..FRP..(SOL,TRSTD)

T=0.75

 2
41361-52110

SCP10..FRP..(SOL,TRSTD)

T=0.70

 2
41361-52160

SCP10..FRP..(SOL,TRSTD)

T=0.95

 2
41361-52150

SCP10..FRP..(SOL,TRSTD)

T=0.90

 2
41361-52080

SCP10..FRP..(SOL,TRSTD)

T=0.55

 2
41361-52100

SCP10..FRP..(SOL,TRSTD)

T=0.65

 2
41361-52140

SCP10..FRP..(SOL,TRSTD)

T=0.85

 2
41361-52070

SCP10..FRP..(SOL,TRSTD)

T=0.50

 2
