SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )FRP..5FS

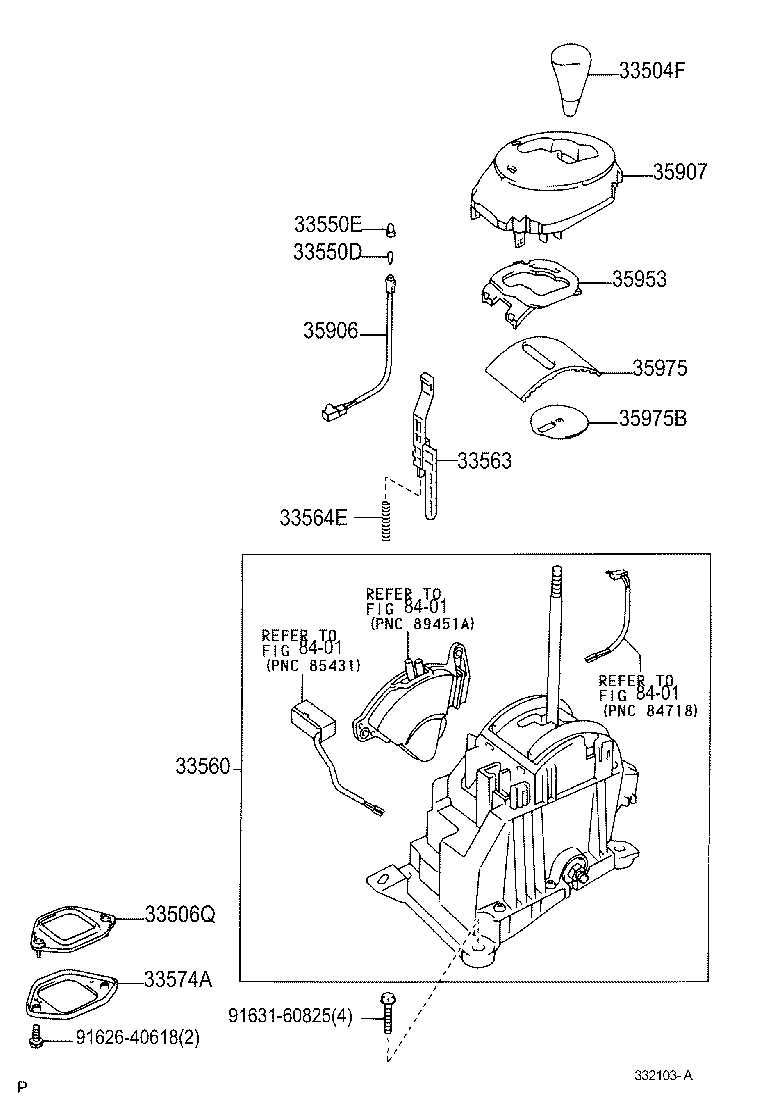

Click highlighted areas on diagram

diagram 33504F 33506Q 33550D 33550E 33560 33563 33564E 33574A 35906 35907 35953 35975 35975B 8401 8401 8401 9162640618 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D010B0

SCP1#..(LUNA,SOL)..5F

LEATHER,SHADOW GRAY,TRIM1#

 1
33504-05010B3

SCP1#..(SOL,TRSTD)..5F

MD.GRAY,TRIM1#

 1
33504-02060B2

NLP10,SCP1#..FRP..SOL..5F

DK.GRAY,TRIM10,11

 1
33504-0D010H0

SCP1#..(LUNA,SOL)..5F

LEATHER,FRENCH TURQUOISE,TRIM7#

 1
33504-05010G0

SCP1#..(SOL,TRSTD)..5F

MIST GREEN,TRIM7#

 1
33504-02090B0

NLP10,SCP1#..FRP..SOL..5F

DK.GRAY,TRIM10,11

 1
33504-22170B1

SCP10..FRP..SOL..5FS

DK.GRAY,TRIM10,11

 1
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-52030

SCP10..FRP..5FS

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

SCP10..FRP..5FS

12V 1.2W W/O SOCKET

 1
90981-11040

SCP10..FRP..5FS

12V 2W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049

SCP10..FRP..5FS

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52130

SCP10..FRP..RHD..5FS

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-52070

SCP10..FRP..5FS

 1
33564E - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE CABLE)
90501-07087

SCP10..FRP..5FS

 1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-52010

SCP1#..FRP..(4FC,5FS)

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52030

SCP10..FRP..5FS

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-52040

SCP10..FRP..RHD..5FS

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-52020

SCP10..FRP..RHD..5FS

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52050

SCP10..FRP..5FS

 1
35975B - COVER, SLIDE, NO.2(FOR POSITION INDICATOR)
35975-52060

SCP10..FRP..5FS

 1
Common parts
91626-40618
91631-60825
Linked diagrams
8401
