SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

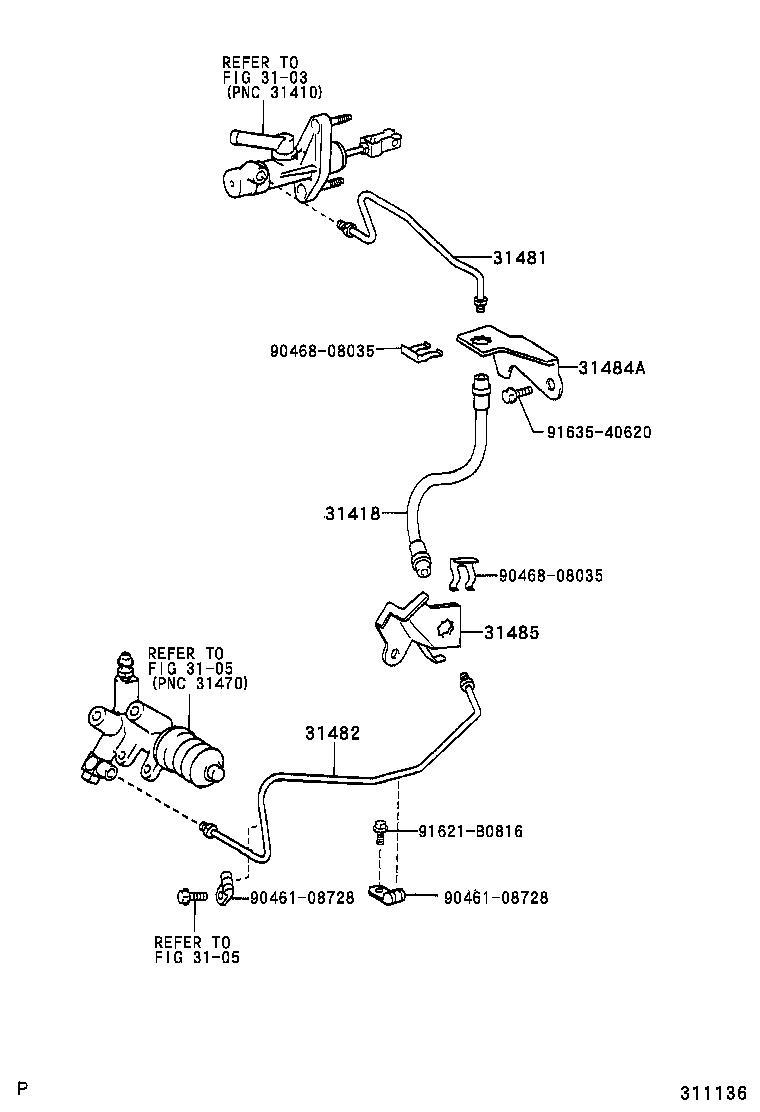

ILLUST NO. 2 OF 2(0302- )SCP10..FRP..RHD..5F

Click highlighted areas on diagram

diagram 3103 3105 3105 31418 31481 31482 31484A 31485 9046108728 9046108728 9046808035 9046808035 91621B0816 9163540620
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02C30

SCP10

 1
90947-02C30

SCP10..FRP..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D050

SCP1#..FRP..RHD..5F

 1
31481-52040

SCP1#..RHD..5F

 1
31481-52050

SCP1#..RHD..5F

W(ABS)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52050

SCP10

 1
31482-0D040

SCP10..FRP..(SOL,TRSTD)..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52010

NLP10,SCP1#..FRP..5F

 1
31484-52010

SCP1#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52030

SCP10

 1
31484-52030

SCP10..FRP..5F

 1
Common parts
90461-08728
90468-08035
91621-B0816
91635-40620
Linked diagrams
3103
3105
