2211 - FUEL INJECTION SYSTEM

SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005

Engine 1SZFE

Transmission 5FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

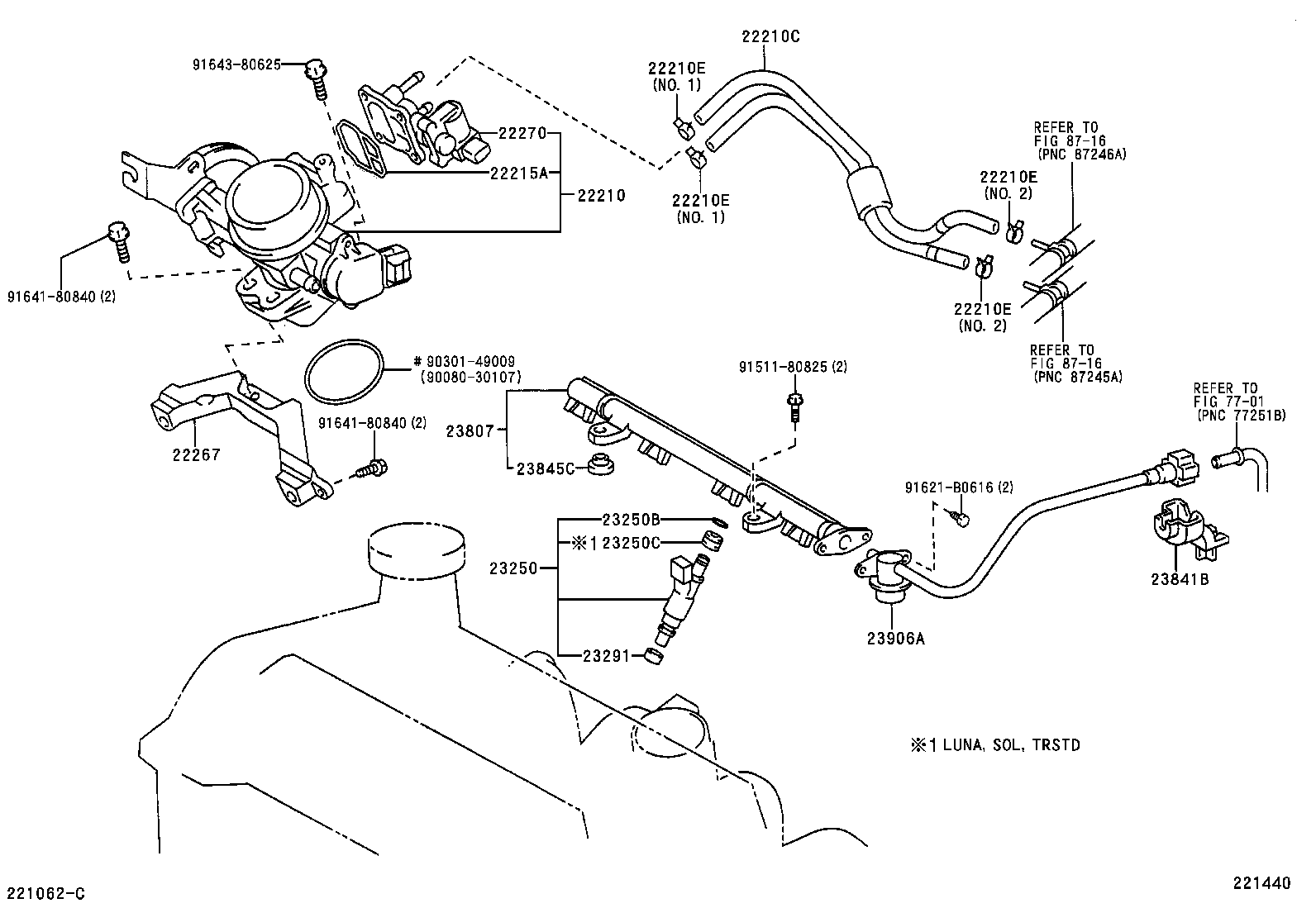

ILLUST NO. 1 OF 2(0302- )1SZFE..FRP..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22030-23010	1SZFE..SCP10..FRP..5FS	02/2003 - 12/2999	1
22210-0J010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
22210-0J010	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)	02/2003 - 12/2999	1
22210C - HOSE, WATER BY-PASS, NO.1
16260-0J020	1SZFE..SCP10..FRP..5FS	02/2003 - 12/2999	1
16260-23010	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F) (J)	02/2003 - 12/2999	1
16260-23010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
16260-0J010	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F) (L)	02/2003 - 12/2999	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22215A - GASKET, IDLE SPEED CONTROL VALVE
22215-74400	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)	02/2003 - 12/2999	1
22215-74400	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
22267 - BRACKET, THROTTLE BODY
22267-23010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
22267-23010	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 12/2999	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-23020	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
22270-23020	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)	02/2003 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-09020	2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS	02/2003 - 12/2999	4
23209-09010	1SZFE..SCP10	01/2001 - 02/2003	4
23209-09010	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F	02/2003 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07030	1SZFE..SCP10	01/2001 - 06/2001	4
90301-07030	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F (J)	02/2003 - 12/2999	4
90301-07024	2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS	02/2003 - 12/2999	4
90080-30100	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F (L)	02/2003 - 12/2999	4
23250C - GROMMET(FOR FUEL INJECTOR)
90080-48058	1SZFE..SCP10	01/2001 - 02/2003	4
90080-48058	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F	02/2003 - 12/2999	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0J020	2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS	02/2003 - 12/2999	4
23291-0J010	1SZFE..SCP10	01/2001 - 02/2003	4
23291-0J010	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F	02/2003 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-23020	1SZFE..SCP10	01/2001 - 05/2002	1
23807-23021	1SZFE,2SZFE..SCP1#..FRP	10/2003 - 12/2999	1
23807-23030	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 10/2003	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 12/2999	1
23841-28010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
23845C - INSULATOR, FUEL PIPE
23845-23010	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 12/2999	2
23845-23010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	2
23906A - HOSE SUB-ASSY, FUEL
23906-0J011	1SZFE..SCP10	01/2001 - 02/2003	1
23906-0J011	1SZFE..SCP10..FRP	02/2003 - 11/2005	1
Common parts
90080-30107
90301-49009
91511-80825
91621-B0616
91641-80840
91643-80625
Linked diagrams
7701
8716

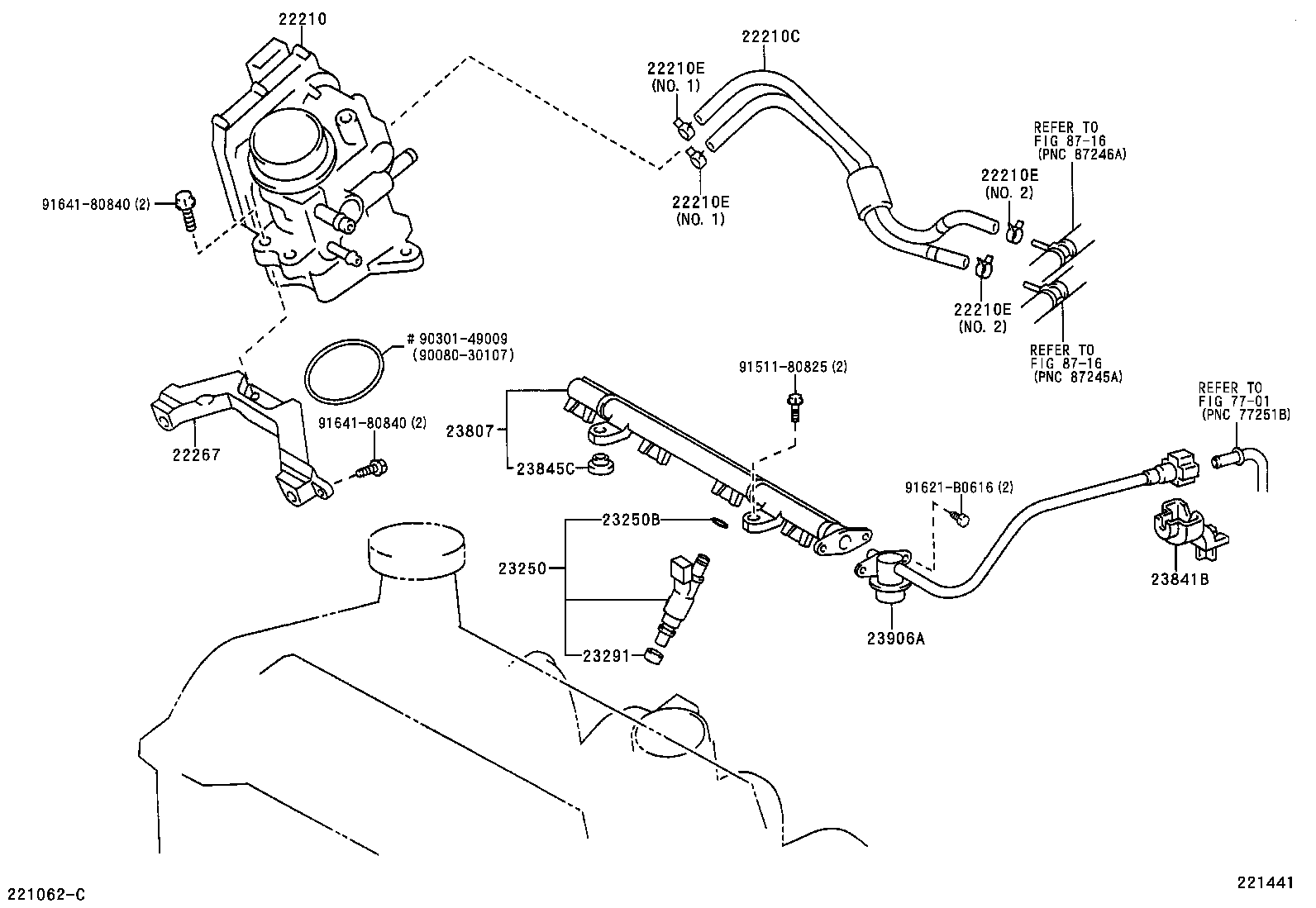

ILLUST NO. 1 OF 2(0302- )1SZFE..FRP..5FS

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22030-23010	1SZFE..SCP10..FRP..5FS	02/2003 - 12/2999	1
22210-0J010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
22210-0J010	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F)	02/2003 - 12/2999	1
22210C - HOSE, WATER BY-PASS, NO.1
16260-0J020	1SZFE..SCP10..FRP..5FS	02/2003 - 12/2999	1
16260-23010	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F) (J)	02/2003 - 12/2999	1
16260-23010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
16260-0J010	1SZFE,2SZFE..SCP1#..FRP..(4FC,5F) (L)	02/2003 - 12/2999	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90466-12001	1SZFE,2SZFE..SCP1# NO.2	01/2001 - 02/2003	2
90466-12001	1SZFE,2SZFE..SCP1#..FRP NO.2	02/2003 - 12/2999	2
96135-51100	1SZFE,2SZFE..SCP1#..FRP NO.1	02/2003 - 12/2999	2
96135-41100	1SZFE..SCP10 NO.1	01/2001 - 04/2002	2
22267 - BRACKET, THROTTLE BODY
22267-23010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
22267-23010	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-09020	2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS	02/2003 - 12/2999	4
23209-09010	1SZFE..SCP10	01/2001 - 02/2003	4
23209-09010	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F	02/2003 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07030	1SZFE..SCP10	01/2001 - 06/2001	4
90301-07030	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F (J)	02/2003 - 12/2999	4
90301-07024	2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS	02/2003 - 12/2999	4
90080-30100	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F (L)	02/2003 - 12/2999	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0J020	2SZFE..SCP12..FRP;1SZFE..SCP10..FRP..5FS;1SZFE..SCP10..FRP..TSGS	02/2003 - 12/2999	4
23291-0J010	1SZFE..SCP10	01/2001 - 02/2003	4
23291-0J010	1SZFE..SCP10..FRP..(SOL,TRSTD)..5F	02/2003 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-23020	1SZFE..SCP10	01/2001 - 05/2002	1
23807-23021	1SZFE,2SZFE..SCP1#..FRP	10/2003 - 12/2999	1
23807-23030	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 10/2003	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 12/2999	1
23841-28010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	1
23845C - INSULATOR, FUEL PIPE
23845-23010	1SZFE,2SZFE..SCP1#..FRP	02/2003 - 12/2999	2
23845-23010	1SZFE,2SZFE..SCP1#	01/2001 - 02/2003	2
23906A - HOSE SUB-ASSY, FUEL
23906-0J011	1SZFE..SCP10	01/2001 - 02/2003	1
23906-0J011	1SZFE..SCP10..FRP	02/2003 - 11/2005	1
Common parts
90080-30107
90301-49009
91511-80825
91621-B0616
91641-80840
Linked diagrams
7701
8716
