SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0511)1SZFE,2SZFE..FRP

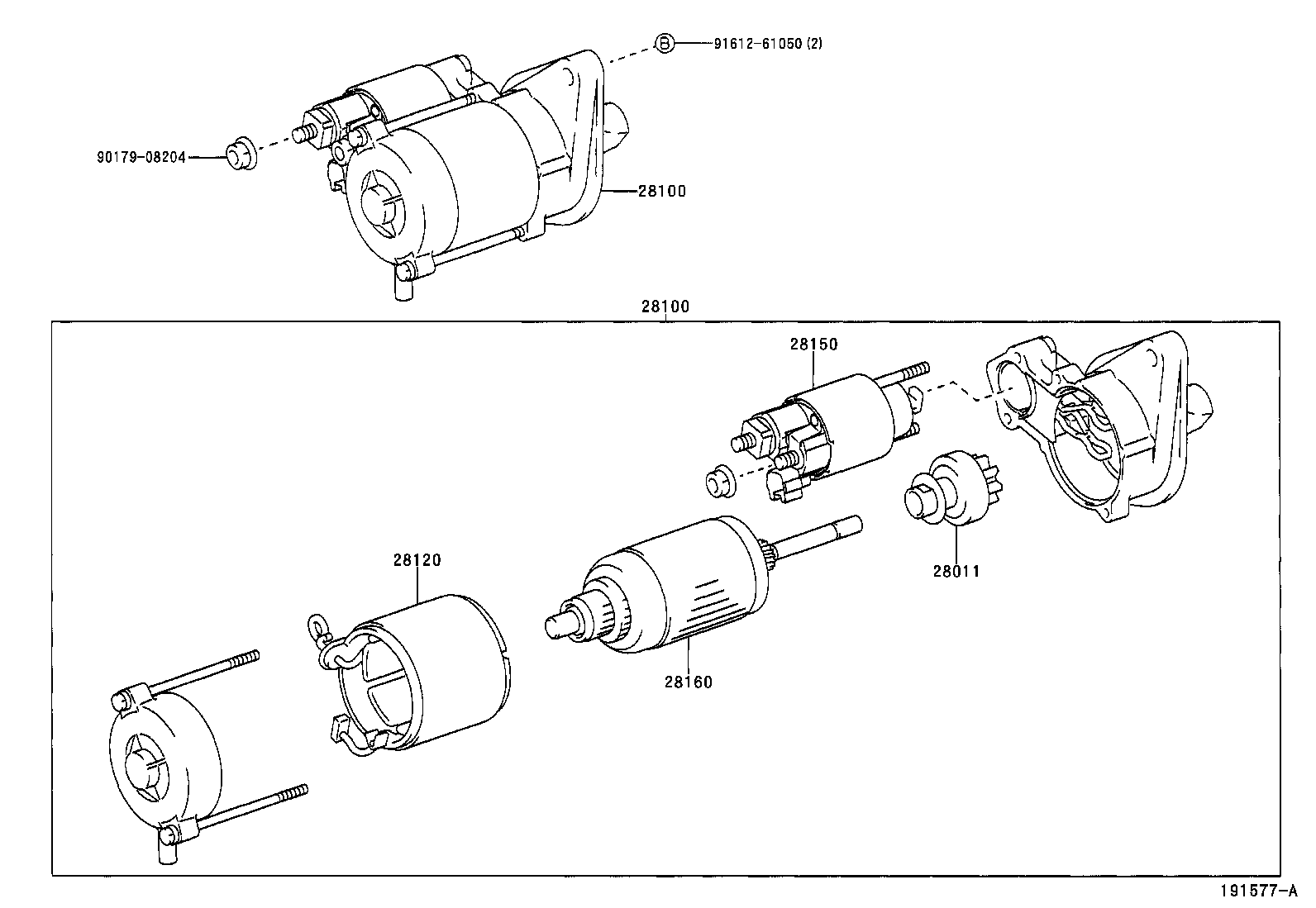

Click highlighted areas on diagram

12V 0.8KW,1.0KW,1.2KW

diagram 28011 28100 28100 28120 28150 28160 9017908204 9161261050
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0J010

1SZFE..SCP10..FRP..(SOL,TRSTD)

12V 0.8KW

 1
28011-0J010

1SZFE..SCP10

12V 0.8KW

 1
28011-0J020

1SZFE,2SZFE..SCP1#

12V 1.2KW

 1
28100 - STARTER ASSY
28100-0J010

1SZFE..SCP10..FRP..(SOL,TRSTD)

12V 0.8KW

 1
28100-0J020

1SZFE,2SZFE..SCP1#

12V 1.2KW

 1
28100-0J010

1SZFE..SCP10

12V 0.8KW

 1
28100 - STARTER ASSY
28100-0J010

1SZFE..SCP10..FRP..(SOL,TRSTD)

12V 0.8KW

 1
28100-0J020

1SZFE,2SZFE..SCP1#

12V 1.2KW

 1
28100-0J010

1SZFE..SCP10

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-0J020

1SZFE,2SZFE..SCP1#

12V 1.2KW

 1
28120-0J010

1SZFE..SCP10

12V 0.8KW

 1
28120-0J010

1SZFE..SCP10..FRP..(SOL,TRSTD)

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-16160

1SZFE,2SZFE..SCP1#..FRP..(SOL,TRSTD)

 1
28150-16160

1SZFE,2SZFE..SCP1#

 1
28160 - ARMATURE ASSY, STARTER
28160-0J010

1SZFE..SCP10..FRP..(SOL,TRSTD)

12V 0.8KW

 1
28160-0J020

1SZFE,2SZFE..SCP1#

12V 1.2KW

 1
28160-0J010

1SZFE..SCP10

12V 0.8KW

 1
Common parts
90179-08204
91612-61050
