SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )1SZFE,2SZFE..FRP

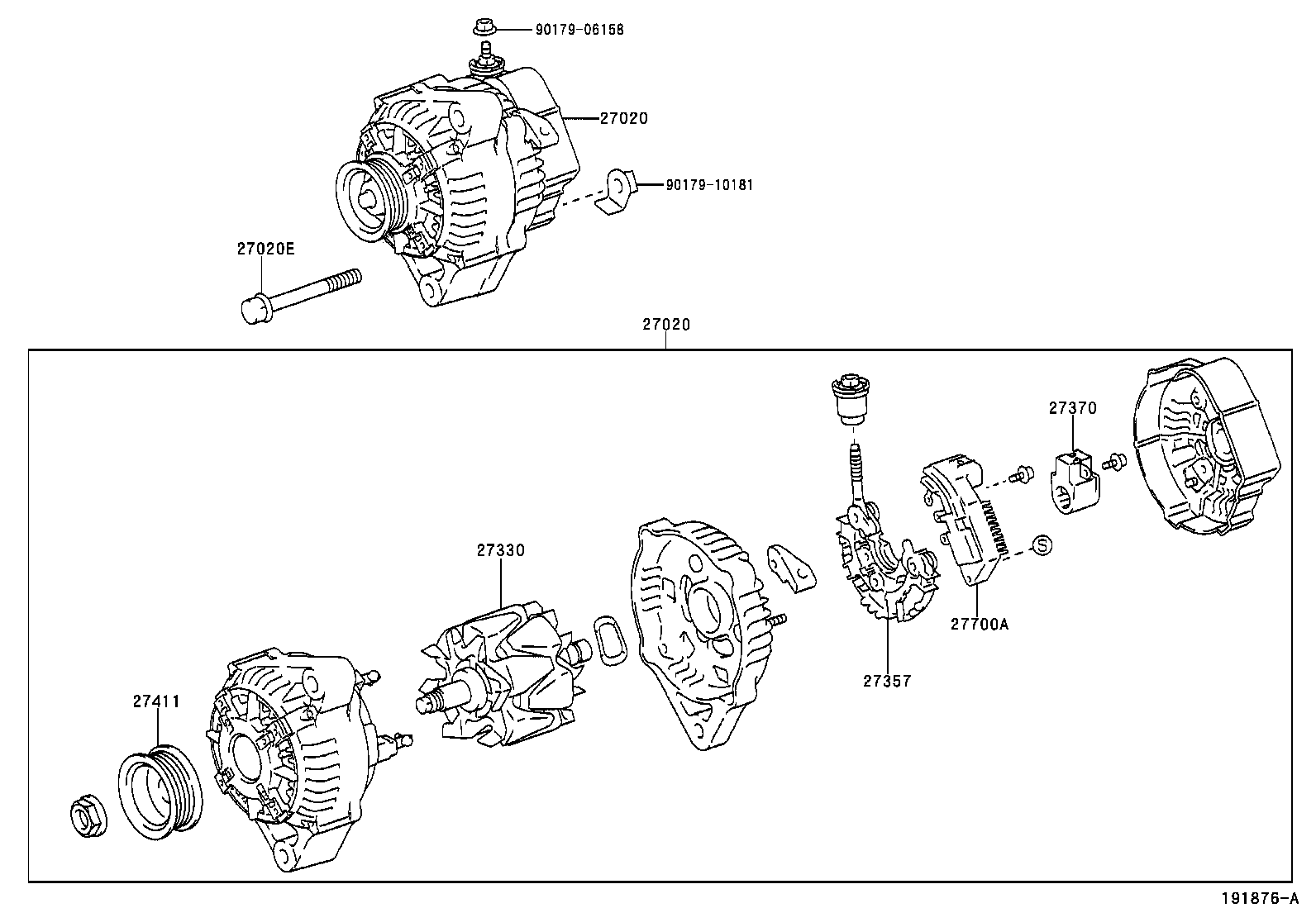

Click highlighted areas on diagram

12V 70A,90A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9017906158 9017910181
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0J030

1SZFE,2SZFE..SCP1#..FRP..(SOL,TRSTD)

12V 70A

 1
27060-0J040

1SZFE,2SZFE..SCP1#..FRP

12V 90A

 1
27060-0J010

1SZFE,2SZFE..SCP1#

12V 70A

 1
27020 - ALTERNATOR ASSY
27060-0J030

1SZFE,2SZFE..SCP1#..FRP..(SOL,TRSTD)

12V 70A

 1
27060-0J040

1SZFE,2SZFE..SCP1#..FRP

12V 90A

 1
27060-0J010

1SZFE,2SZFE..SCP1#

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10468

1SZFE,2SZFE..SCP1#

 1
90105-10468

1SZFE,2SZFE..SCP1#..FRP

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0J010

1SZFE,2SZFE..SCP1#

12V 70A

 1
27330-0J010

1SZFE,2SZFE..SCP1#..FRP..(SOL,TRSTD)

12V 70A

 1
27330-0J020

1SZFE,2SZFE..SCP1#..FRP

12V 90A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-23040

1SZFE,2SZFE..SCP1#

12V 70A

 1
27357-22050

1SZFE,2SZFE..SCP1#..FRP

12V 90A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1SZFE,2SZFE..SCP1#

12V 70A,90A

 1
27370-75060

1SZFE,2SZFE..SCP1#..FRP

12V 70A,90A

 1
27411 - PULLEY, ALTERNATOR
27411-0J010

1SZFE,2SZFE..SCP1#

12V 70A,90A

 1
27411-0J010

1SZFE,2SZFE..SCP1#..FRP

12V 70A,90A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-23010

1SZFE,2SZFE..SCP1#

 1
27700-23010

1SZFE,2SZFE..SCP1#..FRP

 1
Common parts
90179-06158
90179-10181
