SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )1SZFE..FRP

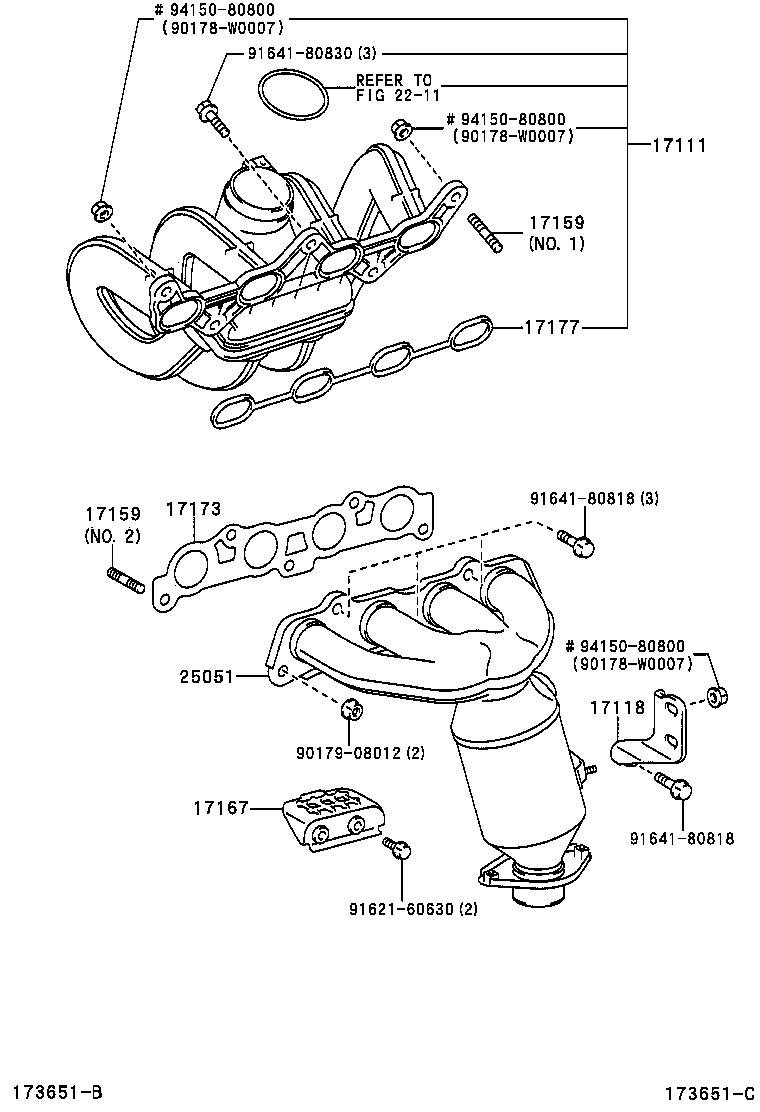

Click highlighted areas on diagram

diagram 17111 17118 17159 17159 17167 17173 17177 2211 25051 90178W0007 90178W0007 90178W0007 9017908012 9162160630 9164180818 9164180818 9164180830 9415080800 9415080800 9415080800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-23020

1SZFE..SCP10

 1
17120-0J010

1SZFE..SCP10..FRP

 1
17118 - STAY, MANIFOLD
17118-23030

1SZFE,2SZFE..SCP1#..FRP

 1
17118-23010

1SZFE..SCP10

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08395

1SZFE,2SZFE..SCP1#

NO.2

 2
90116-08395

1SZFE,2SZFE..SCP1#..FRP

NO.2

 2
92122-60825

1SZFE,2SZFE..SCP1#..FRP

NO.1

 2
92122-60825

1SZFE,2SZFE..SCP1#

NO.1

 2
92122-80825

1SZFE,2SZFE..SCP1#..FRP

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08395

1SZFE,2SZFE..SCP1#

NO.2

 2
90116-08395

1SZFE,2SZFE..SCP1#..FRP

NO.2

 2
92122-60825

1SZFE,2SZFE..SCP1#..FRP

NO.1

 2
92122-60825

1SZFE,2SZFE..SCP1#

NO.1

 2
92122-80825

1SZFE,2SZFE..SCP1#..FRP

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-23020

1SZFE..SCP10..FRP

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-23010

1SZFE,2SZFE..SCP1#..FRP

 1
17173-0J010

1SZFE,2SZFE..SCP1#..FRP

(L)

 1
17173-23010

1SZFE,2SZFE..SCP1#

 1
17173-23010

1SZFE,2SZFE..SCP1#..FRP

(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-23020

1SZFE..SCP10..FRP

(J)

 1
17177-0J010

1SZFE..SCP10..FRP

(L)

 1
17177-23020

1SZFE,2SZFE..SCP1#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0J010

1SZFE,2SZFE..SCP1#..FRP

*115=TOYOTA/02-/Y

 1
Common parts
90178-W0007
90179-08012
91621-60630
91641-80818
91641-80830
94150-80800
Linked diagrams
2211
