SCP10R-CGGGKW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1SZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )1SZFE..FRP

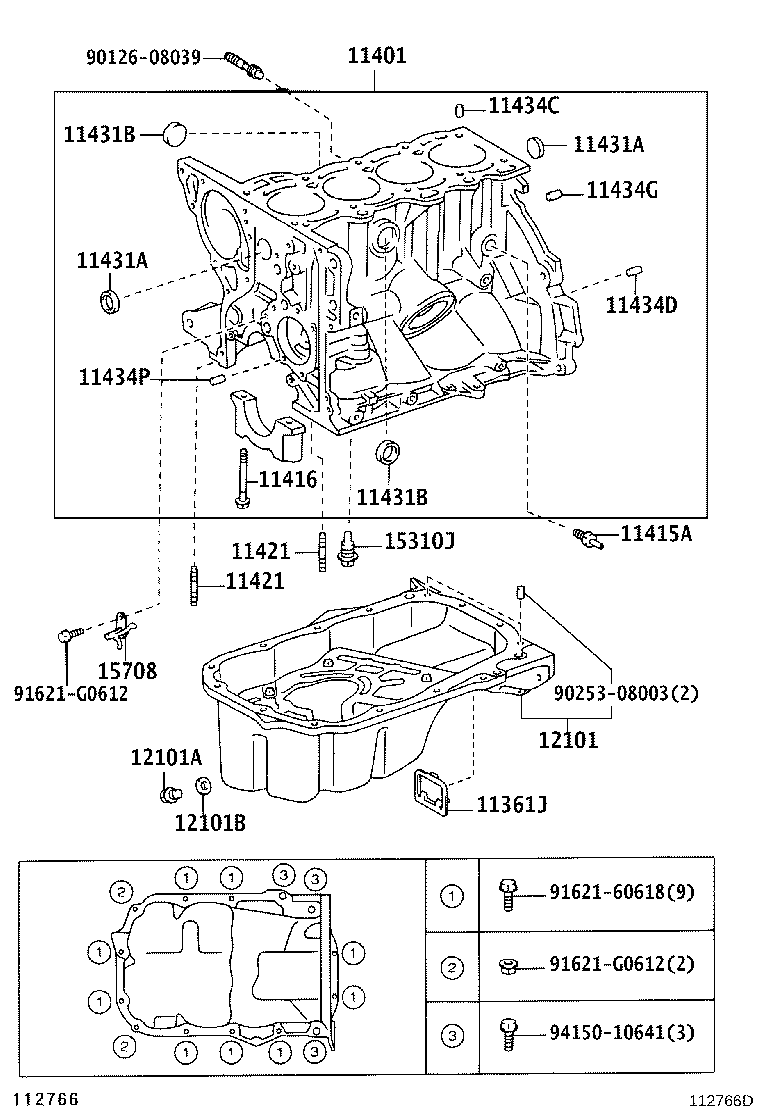

Click highlighted areas on diagram

diagram 11361J 11401 11415A 11416 11421 11421 11431A 11431A 11431B 11431B 11434C 11434D 11434G 11434P 12101 12101A 12101B 15310J 15708 9012608039 9025308003 9162160618 91621G0612 91621G0612 9415010641
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-28010

1SZFE,2SZFE..SCP1#..FRP

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-0J010

1SZFE..SCP10

(L)

 1
11401-0J030

1SZFE..SCP10..FRP

 1
11401-23021

1SZFE..SCP10

(J)

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09116

1SZFE,2SZFE..SCP1#

 1
90910-09116

1SZFE,2SZFE..SCP1#..FRP

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10492

1SZFE,2SZFE..SCP1#..FRP

 10
90105-10492

1SZFE,2SZFE..SCP1#

 10
11421 - BOLT, STUD(FOR OIL PAN)
92122-60610

1SZFE..SCP10

 1
90116-06145

1SZFE,2SZFE..SCP1#..FRP

 2
11421 - BOLT, STUD(FOR OIL PAN)
92122-60610

1SZFE..SCP10

 1
90116-06145

1SZFE,2SZFE..SCP1#..FRP

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-62500

1SZFE..SCP10

 2
96411-62500

1SZFE..SCP10..FRP

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-62500

1SZFE..SCP10

 2
96411-62500

1SZFE..SCP10..FRP

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63000

1SZFE..SCP10..FRP

 2
96411-63000

1SZFE..SCP10

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63000

1SZFE..SCP10..FRP

 2
96411-63000

1SZFE..SCP10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-12002

1SZFE,2SZFE..SCP1#

L=12,OD=12

 2
90253-12002

1SZFE,2SZFE..SCP1#..FRP

L=12,OD=12

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06030

1SZFE,2SZFE..SCP1#

L=12,OD=6

 2
90250-06030

1SZFE,2SZFE..SCP1#..FRP

L=12,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

1SZFE,2SZFE..SCP1#..FRP

 2
90250-10113

1SZFE,2SZFE..SCP1#

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-06030

1SZFE,2SZFE..SCP1#

L=12,OD=6

 2
90250-06030

1SZFE,2SZFE..SCP1#..FRP

L=12,OD=6

 2
12101 - PAN SUB-ASSY, OIL
12100-0J010

1SZFE,2SZFE..SCP1#..FRP

 1
12101-0J010

1SZFE..SCP10

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12032

1SZFE,2SZFE..SCP1#..FRP

 1
90341-12012

1SZFE..SCP10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1SZFE,2SZFE..SCP1#..FRP

(J)

 1
90430-12031

1SZFE,2SZFE..SCP1#

 1
90080-43037

1SZFE,2SZFE..SCP1#..FRP

(L)

 1
15310J - REGULATOR ASSY, OIL
15310-23010

1SZFE,2SZFE..SCP1#..FRP

 1
15310-23010

1SZFE,2SZFE..SCP1#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-23010

1SZFE,2SZFE..SCP1#

 1
15708-23020

1SZFE,2SZFE..SCP1#..FRP

 1
Common parts
90126-08039
90253-08003
91621-60618
91621-G0612
94150-10641
