SCP10L-CHMNKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Feb 2003
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101-0302)FRP

Click highlighted areas on diagram

12V 70A,90A

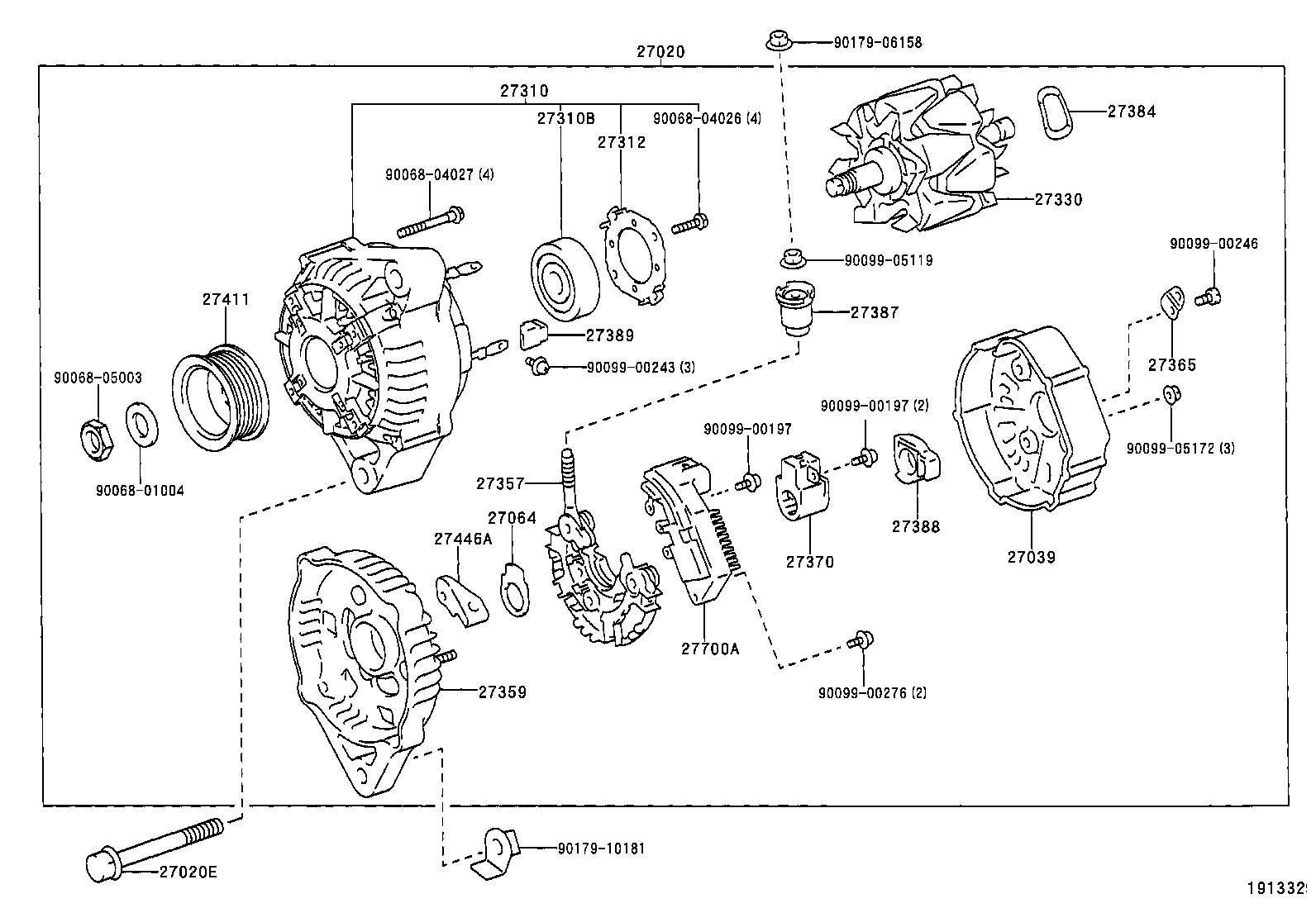

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27357 27359 27365 27370 27384 27387 27388 27389 27411 27446A 27700A 9006801004 9006804026 9006804027 9006805003 9009900197 9009900197 9009900243 9009900246 9009900276 9009905119 9009905172 9017906158 9017910181
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0J020

1SZFE,2SZFE..SCP1#..LHD

12V 90A

 1
27060-0J010

1SZFE,2SZFE..SCP1#

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10468

1SZFE,2SZFE..SCP1#

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

1SZFE,2SZFE..SCP1#

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1SZFE,2SZFE..SCP1#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0J010

1SZFE,2SZFE..SCP1#

12V 70A

 1
27310-0J020

1SZFE,2SZFE..SCP1#..LHD

12V 90A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10016

1SZFE,2SZFE..SCP1#

 1
27312 - PLATE, RETAINER
27312-0J010

1SZFE,2SZFE..SCP1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0J010

1SZFE,2SZFE..SCP1#

12V 70A

 1
27330-0J020

1SZFE,2SZFE..SCP1#..LHD

12V 90A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-23040

1SZFE,2SZFE..SCP1#

12V 70A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-0J010

1SZFE,2SZFE..SCP1#

 1
27365 - PLATE, TERMINAL
27365-55080

1SZFE,2SZFE..SCP1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1SZFE,2SZFE..SCP1#

12V 70A,90A

 1
27384 - WASHER
27384-16380

1SZFE,2SZFE..SCP1#

 1
27387 - INSULATOR, TERMINAL
27387-42021

1SZFE,2SZFE..SCP1#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1SZFE,2SZFE..SCP1#

 1
27389 - INSULATOR, TERMINAL
27389-0J010

1SZFE,2SZFE..SCP1#

 3
27411 - PULLEY, ALTERNATOR
27411-0J010

1SZFE,2SZFE..SCP1#

12V 70A,90A

 1
27446A - CLAMP
27446-72250

1SZFE,2SZFE..SCP1#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-23010

1SZFE,2SZFE..SCP1#

 1
Common parts
90068-01004
90068-04026
90068-04027
90068-05003
90099-00197
90099-00243
90099-00246
90099-00276
90099-05119
90099-05172
90179-06158
90179-10181
