NSP90R-CHFGKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )FRP..RHD

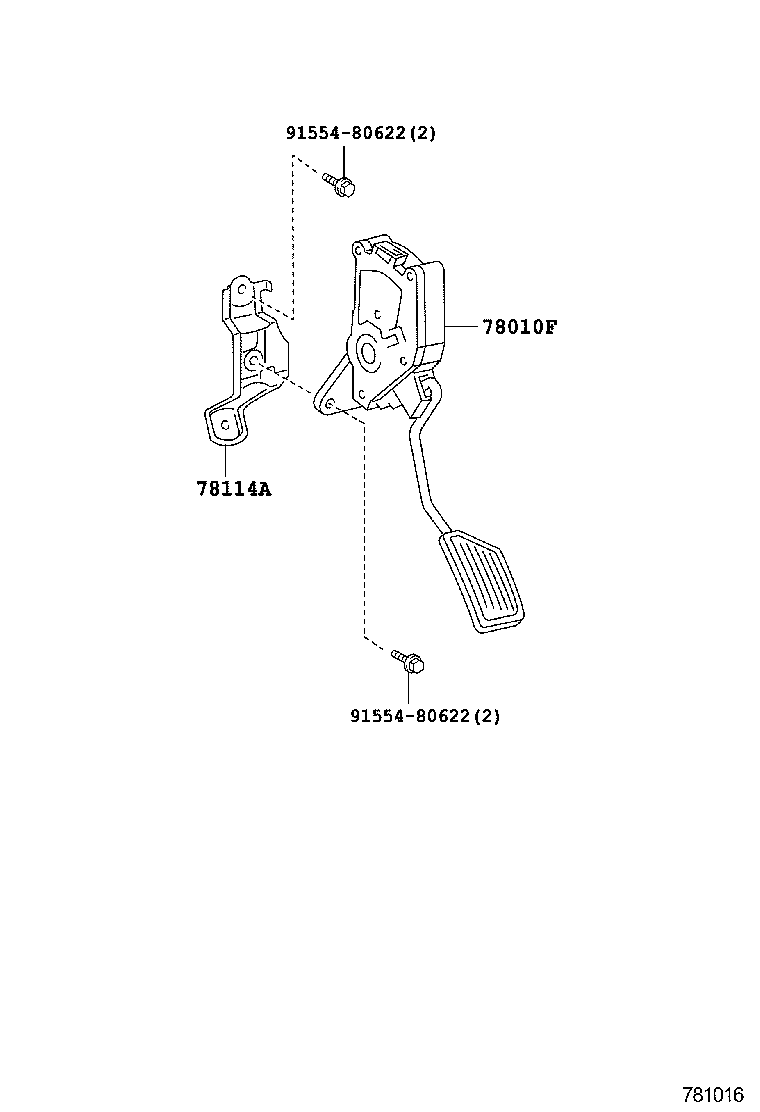

Click highlighted areas on diagram

diagram 78010F 78114A 9155480622 9155480622
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78110-52010

KSP90,NLP90,NSP90..FRP..RHD

 1
78110-0D021

KSP90,NLP90,NSP90..FRP..RHD

 1
78110-0D020

KSP90,NLP90,NSP90..FRP..RHD

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-0D031

KSP90,NLP90,NSP90..FRP..RHD

 1
78114-0D030

KSP90,NLP90,NSP90..FRP..RHD

 1
Common parts
91554-80622
