NSP90R-CHFGKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0511- )KSP90,NSP90,SCP90..FRP..RHD..5F,6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31322 31324 31324A 31453A 31453B 4701 55107A 8401 8401 8401 9017910088 9046816142 91674E0820
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0D061

KSP90,NSP90..FRP..RHD..(5F,6F)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

KSP90,NSP90..FRP..(5F,6F)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91112-61025

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-W0002

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31322 - STOPPER, CLUTCH PEDAL
31322-52010

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

L=31.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

 1
90386-08002

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D140

KSP90,NSP90..FRP..RHD..(5F,6F)

 1
Common parts
90179-10088
90468-16142
91674-E0820
Linked diagrams
4701
8401

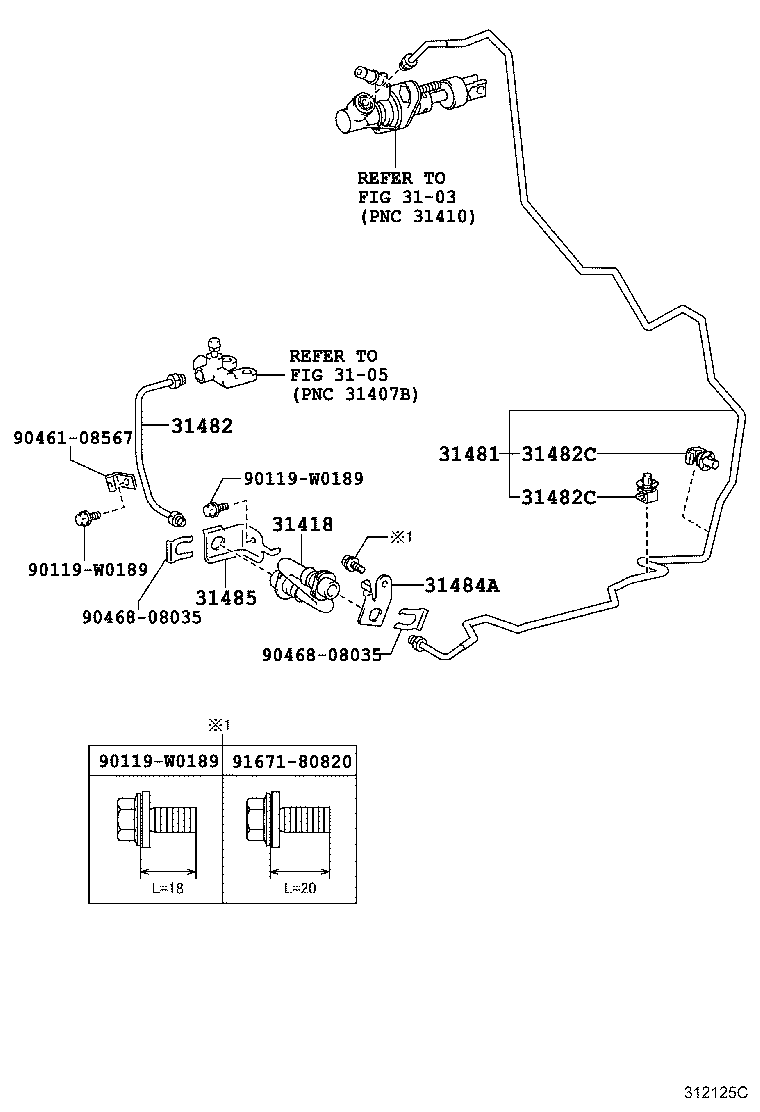

ILLUST NO. 2 OF 2(0811- )NSP90..FRP..RHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31482C 31482C 31484A 31485 90119W0189 90119W0189 90119W0189 9046108567 9046808035 9046808035 9167180820
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-W2005

KSP90,NSP90..FRP..(5F,6F)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D180

KSP90,NSP90..FRP..RHD..(5F,6F)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0D060

NSP90..FRP..6F

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-0D050

NLP90,NSP90..FRP..6F

 1
Common parts
90119-W0189
90461-08567
90468-08035
91671-80820
Linked diagrams
3103
3105
