NSP90R-CHFGKW (2008)
Toyota Yaris (Frp)
Production
Nov 2008
-
Jul 2011
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1NRFE..FRP..6F

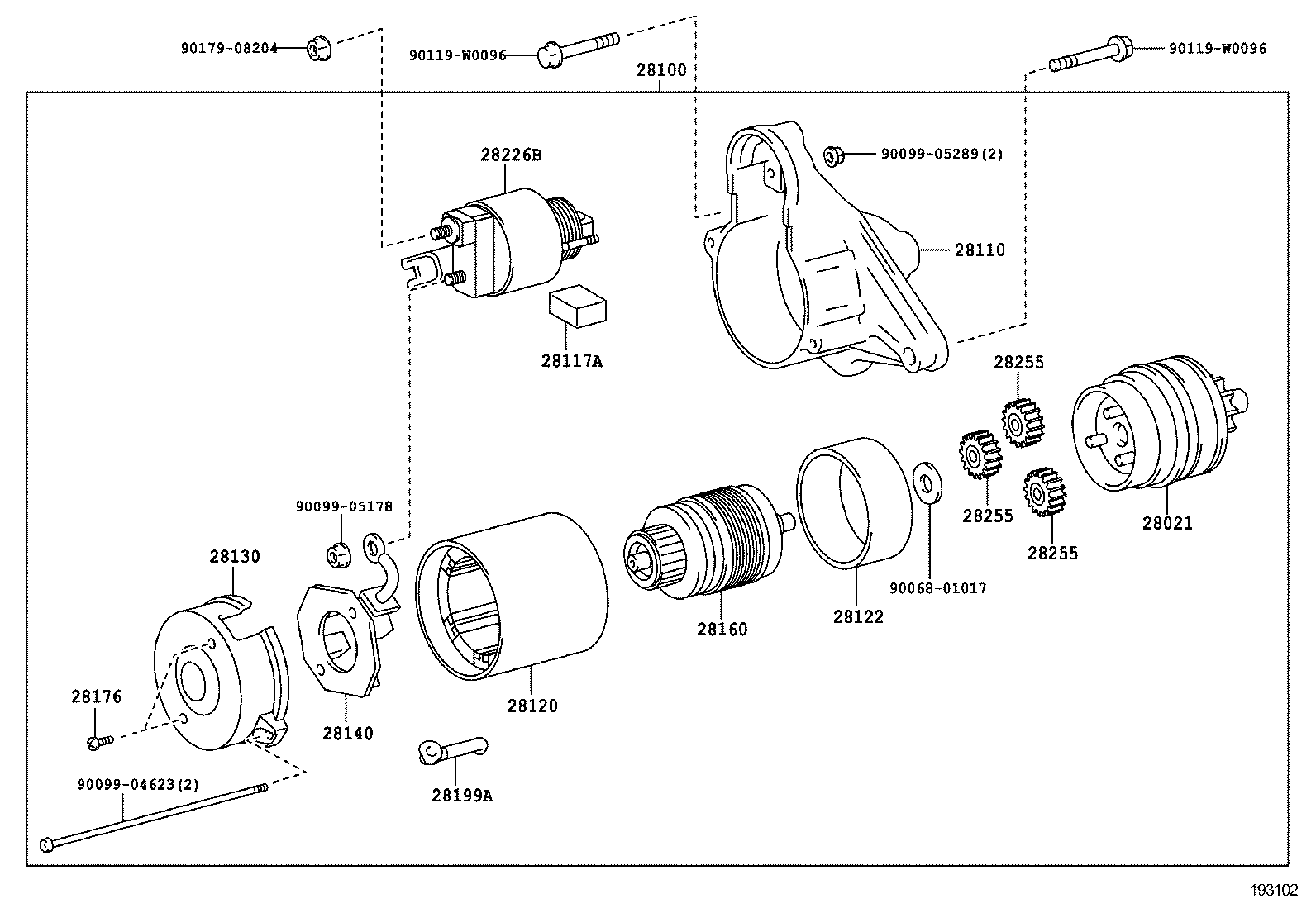

Click highlighted areas on diagram
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Y020 |
1NRFE..NSP90..FRP..6F 12V 1.6KW |
1 | ||
| 28100-0Y021 |
1NRFE..NSP90..FRP..6F 12V 1.6KW |
1 | ||
| 28100-0Y022 |
1NRFE..NSP90..FRP..6F 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28122 - COLLAR, SPACE | ||||
| 28122-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28180-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 90099-00323 |
1N#..NLP90,NSP90..FRP |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-31090 |
1NRFE..NSP90..FRP |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-47190 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28226-47111 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28226-47110 |
1NRFE..NSP90..FRP..6F |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NSP90..FRP..6F |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NSP90..FRP..6F |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NSP90..FRP..6F |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-04623 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||
