NSP90R-CHFGKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NRFE..FRP

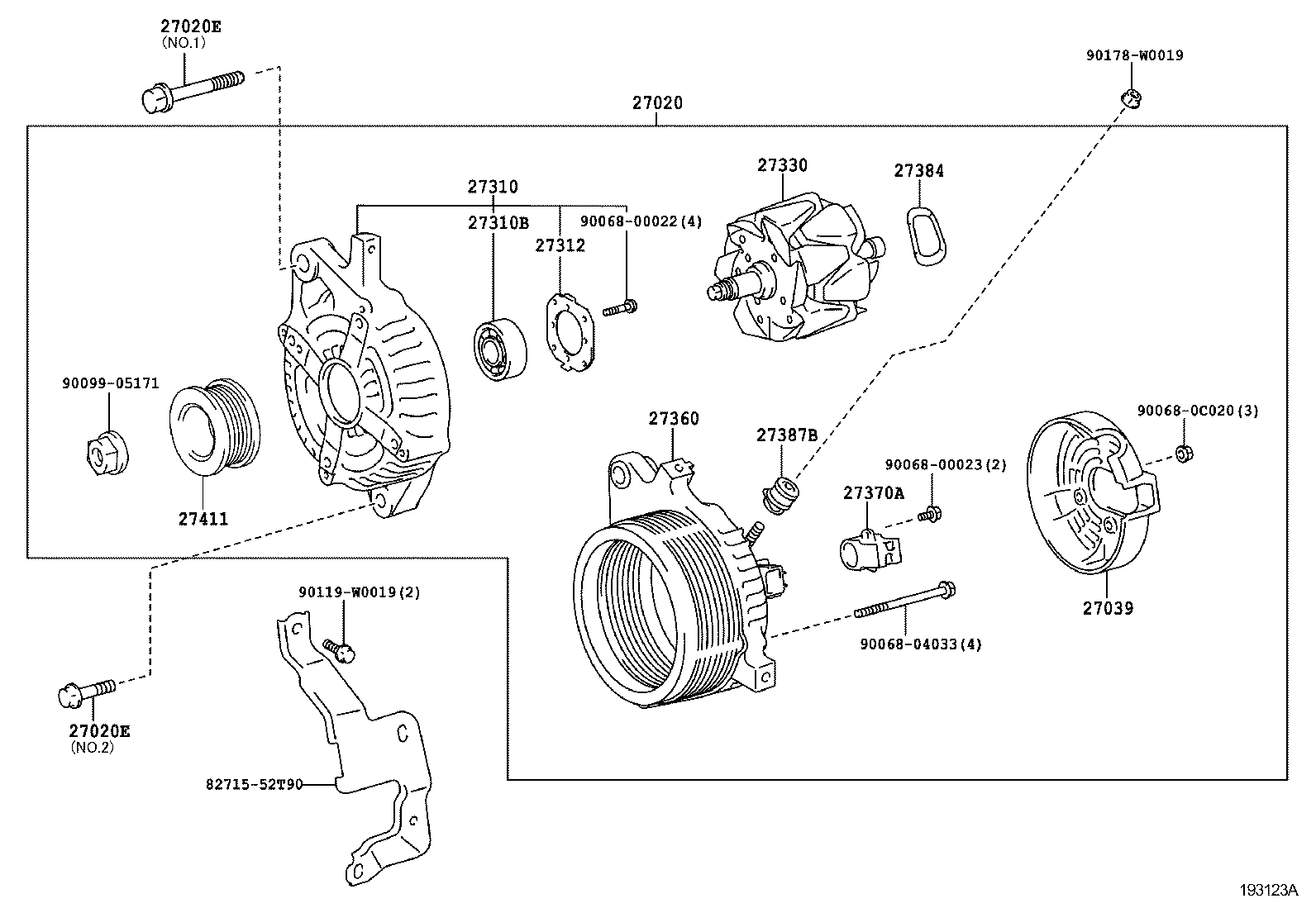

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27020E 27039 27310 27310B 27312 27330 27360 27370A 27384 27387B 27411 8271552T90 9006800022 9006800023 9006804033 900680C020 9009905171 90119W0019 90178W0019
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0Y030

1NRFE..NSP90..FRP..6F

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90119-W0165

1NRFE..NSP90..FRP

NO.2

 1
90105-W0113

1NRFE..NSP90..FRP

NO.1

 1
91671-80845

1NRFE..NSP90..FRP

NO.2

 1
91552-81075

1NRFE..NSP90..FRP

NO.1

 1
27020E - BOLT(FOR ALTERNATOR)
90119-W0165

1NRFE..NSP90..FRP

NO.2

 1
90105-W0113

1NRFE..NSP90..FRP

NO.1

 1
91671-80845

1NRFE..NSP90..FRP

NO.2

 1
91552-81075

1NRFE..NSP90..FRP

NO.1

 1
27039 - COVER, ALTERNATOR REAR END
27039-0C020

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0Y010

1NRFE..NSP90..FRP

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10029

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27312 - PLATE, RETAINER
27312-0C020

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0M040

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27360 - COIL ASSY, ALTERNATOR
27360-0Y030

1NRFE..NSP90..FRP..6F

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-0M040

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27384 - WASHER
27384-0C020

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0C020

1KRFE,1NRFE..KSP90,NSP90..FRP

 1
27411 - PULLEY, ALTERNATOR
27411-0D200

1NRFE..NSP90..FRP

 1
Common parts
82715-52T90
90068-00022
90068-00023
90068-04033
90068-0C020
90099-05171
90119-W0019
90178-W0019
