NSP90R-CGLGKW (2009)

Toyota Yaris (Frp)

Production Feb 2009 - Jul 2011
Engine 1NRFE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )FRP..RHD

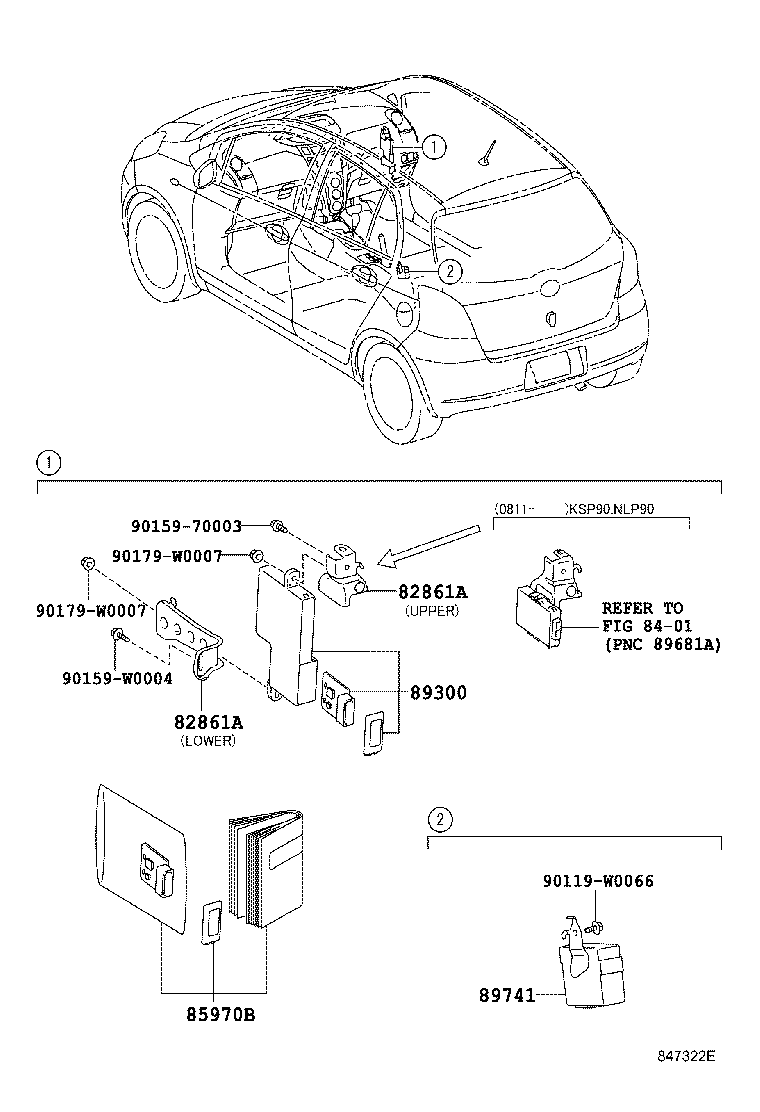

Click highlighted areas on diagram

W(DOUBLE LOCKING)

diagram 82861A 82861A 8401 85970B 89300 89741 90119W0066 9015970003 90159W0004 90179W0007 90179W0007
Part # Description Qty Price
89300 - BOX ASSY, ECU AGGREGATION
89300-52014

KSP90,NLP90,NSP90..FRP..RHD..SOL

POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START)

 1
89300-52053

KSP90,NLP90,NSP90..FRP..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
Common parts
90119-W0066
90159-70003
90159-W0004
90179-W0007
Linked diagrams
8401

(0511- )FRP

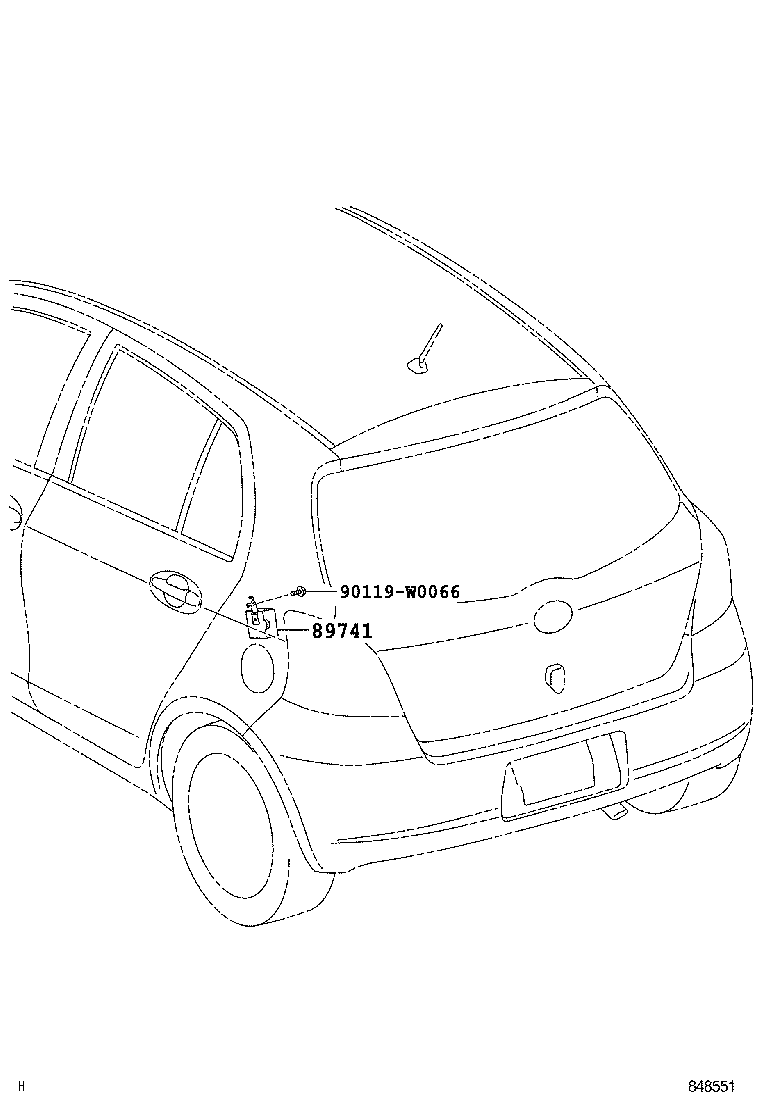

Click highlighted areas on diagram

diagram 89741 90119W0066
Part # Description Qty Price
Common parts
90119-W0066
