NSP90R-CGLGKW (2009)

Toyota Yaris (Frp)

Production Feb 2009 - Jul 2011
Engine 1NRFE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )FRP

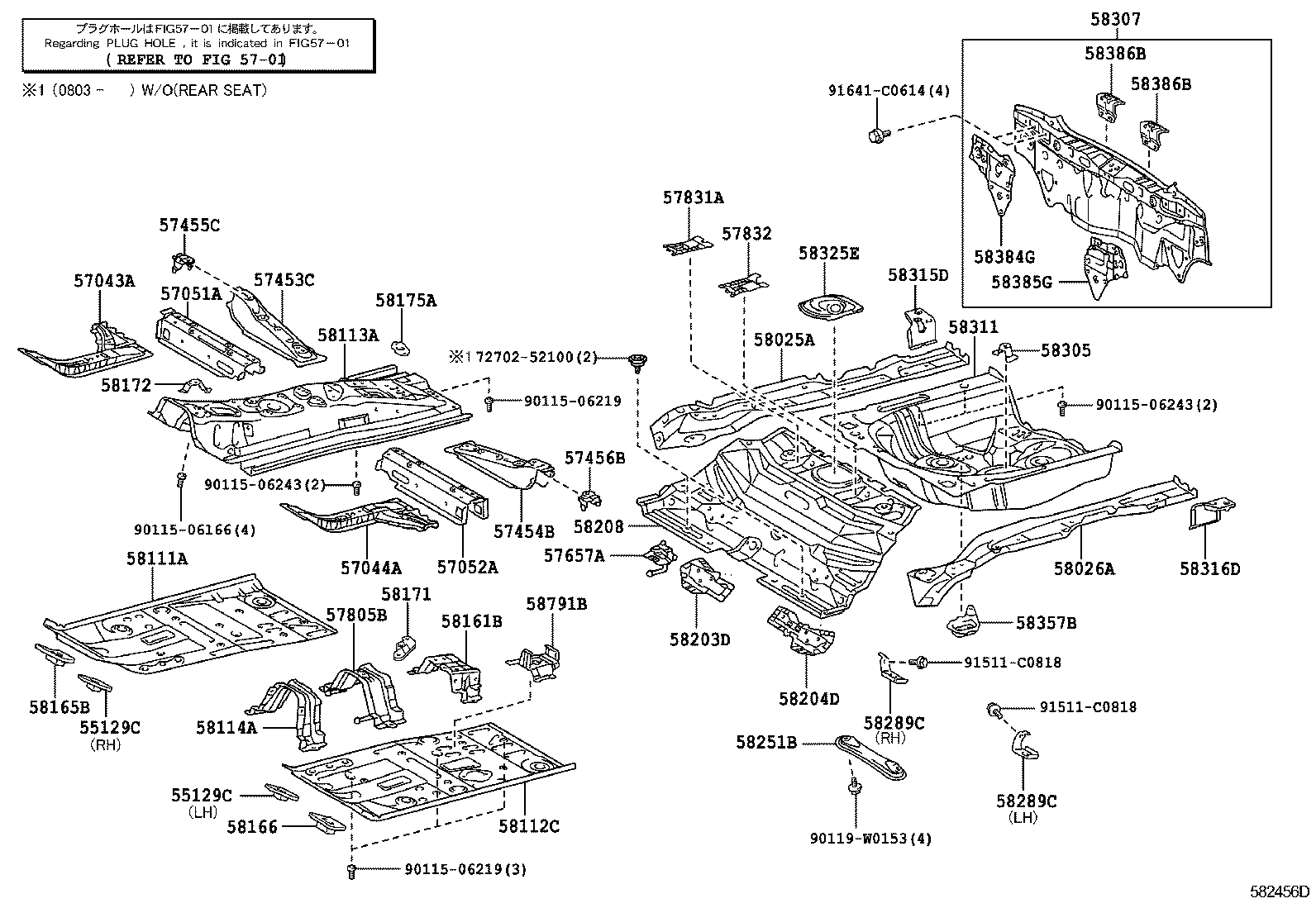

Click highlighted areas on diagram

diagram 55129C 55129C 5701 57043A 57044A 57051A 57052A 57453C 57454B 57455C 57456B 57657A 57805B 57831A 57832 58025A 58026A 58111A 58112C 58113A 58114A 58161B 58165B 58166 58171 58172 58175A 58203D 58204D 58208 58251B 58289C 58289C 58305 58307 58311 58315D 58316D 58325E 58357B 58384G 58385G 58386B 58386B 58791B 7270252100 9011506166 9011506219 9011506219 9011506243 9011506243 90119W0153 91511C0818 91511C0818 91641C0614
Part # Description Qty Price
57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-0D011

KSP90,NLP90,NSP90..FRP

 1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-0D041

KSP90,NLP90,NSP90..FRP

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-52030

KSP90,NLP90,NSP90..FRP

 1
57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH
57453-52021

KSP90,NLP90,NSP90..FRP

 1
57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH
57454-52011

KSP90,NLP90,NSP90..FRP

 1
57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57455-52040

KSP90,NLP90,NSP90..FRP

 1
57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57456-52040

KSP90,NLP90,NSP90..FRP

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58025-52021

KSP90,NLP90,NSP90..FRP

 1
58025-52022

KSP90,NLP90,NSP90..FRP

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58026-52021

KSP90,NLP90,NSP90..FRP

 1
58026-52022

KSP90,NLP90,NSP90..FRP

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-52071

KSP90,NLP90,NSP90..FRP

 1
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-52070

KSP90,NLP90,NSP90..FRP

 1
58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58204-52061

KSP90,NLP90,NSP90..FRP

 1
58357B - BRACKET, ACTUATOR COVER, NO.3 RH
58357-52031

KSP90,NLP90,NSP90..FRP

 1
Common parts
72702-52100
90115-06166
90115-06219
90115-06243
90119-W0153
91511-C0818
91641-C0614
Linked diagrams
5701
