NSP90R-CGLGKW (2009)

Toyota Yaris (Frp)

Production Feb 2009 - Jul 2011
Engine 1NRFE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )FRP..RHD

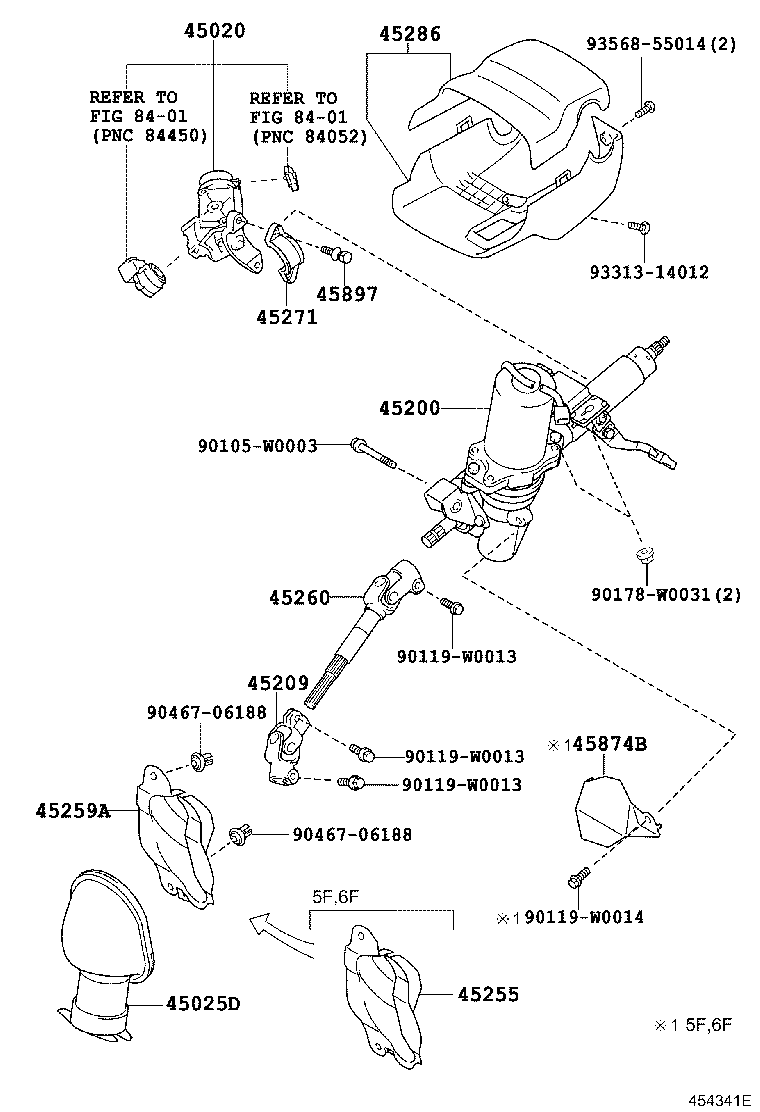

Click highlighted areas on diagram

diagram 45020 45025D 45200 45209 45255 45259A 45260 45271 45286 45874B 45897 8401 8401 90105W0003 90119W0013 90119W0013 90119W0013 90119W0014 90178W0031 9046706188 9046706188 9331314012 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D061

KSP90,NLP90,NSP90..FRP

 1
45025-0D062

KSP90,NLP90,NSP90..FRP

 1
45200 - POST ASSY, STEERING
45200-0D203

KSP90,NLP90,NSP90..FRP..RHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-0D193

KSP90,NLP90,NSP90..FRP..RHD..SOL

 1
45200-0D204

KSP90,NLP90,NSP90..FRP..RHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-0D194

KSP90,NLP90,NSP90..FRP..RHD..SOL

 1
45200-0D205

KSP90,NLP90,NSP90..FRP..RHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-0D195

KSP90,NLP90,NSP90..FRP..RHD..SOL

 1
Common parts
90105-W0003
90119-W0013
90119-W0014
90178-W0031
90467-06188
93313-14012
93568-55014
Linked diagrams
8401

(0511- )FRP..RHD..SOL

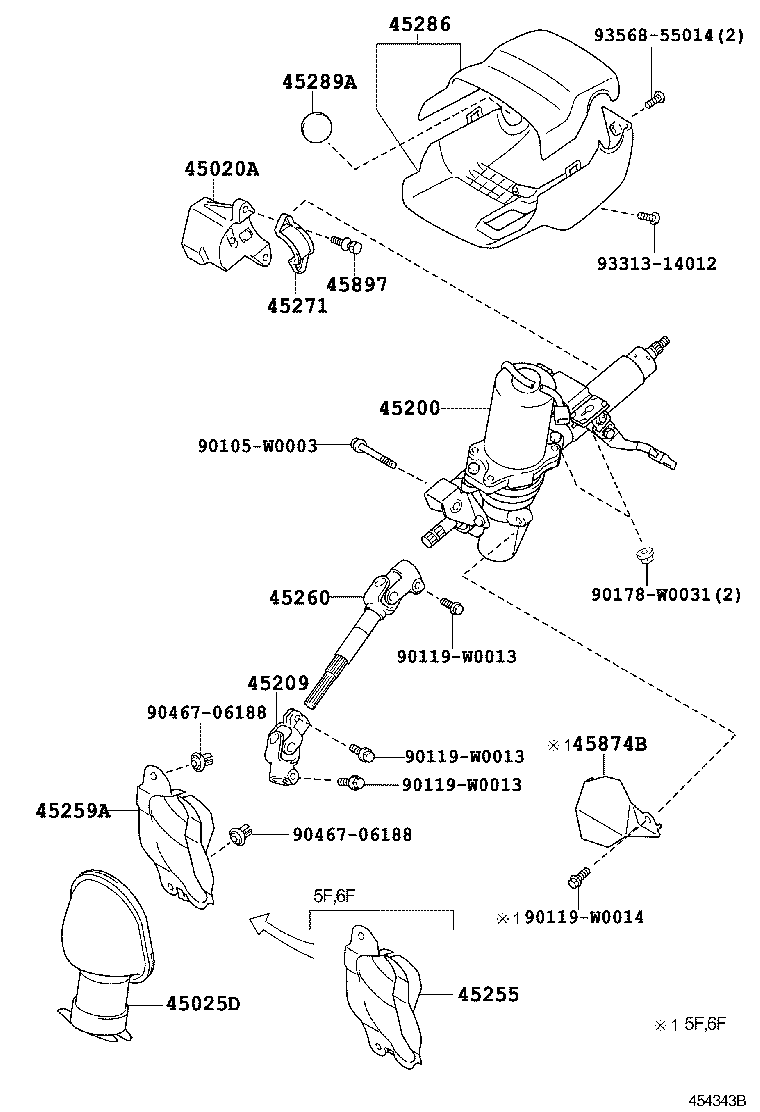

Click highlighted areas on diagram

W(SMART KEY SYSTEM)

diagram 45020A 45025D 45200 45209 45255 45259A 45260 45271 45286 45289A 45874B 45897 90105W0003 90119W0013 90119W0013 90119W0013 90119W0014 90178W0031 9046706188 9046706188 9331314012 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D061

KSP90,NLP90,NSP90..FRP

 1
45025-0D062

KSP90,NLP90,NSP90..FRP

 1
45200 - POST ASSY, STEERING
45200-0D203

KSP90,NLP90,NSP90..FRP..RHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-0D193

KSP90,NLP90,NSP90..FRP..RHD..SOL

 1
45200-0D204

KSP90,NLP90,NSP90..FRP..RHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-0D194

KSP90,NLP90,NSP90..FRP..RHD..SOL

 1
45200-0D205

KSP90,NLP90,NSP90..FRP..RHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
45200-0D195

KSP90,NLP90,NSP90..FRP..RHD..SOL

 1
Common parts
90105-W0003
90119-W0013
90119-W0014
90178-W0031
90467-06188
93313-14012
93568-55014
