NLP90R-CHGGXW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1NDTV
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP..RHD

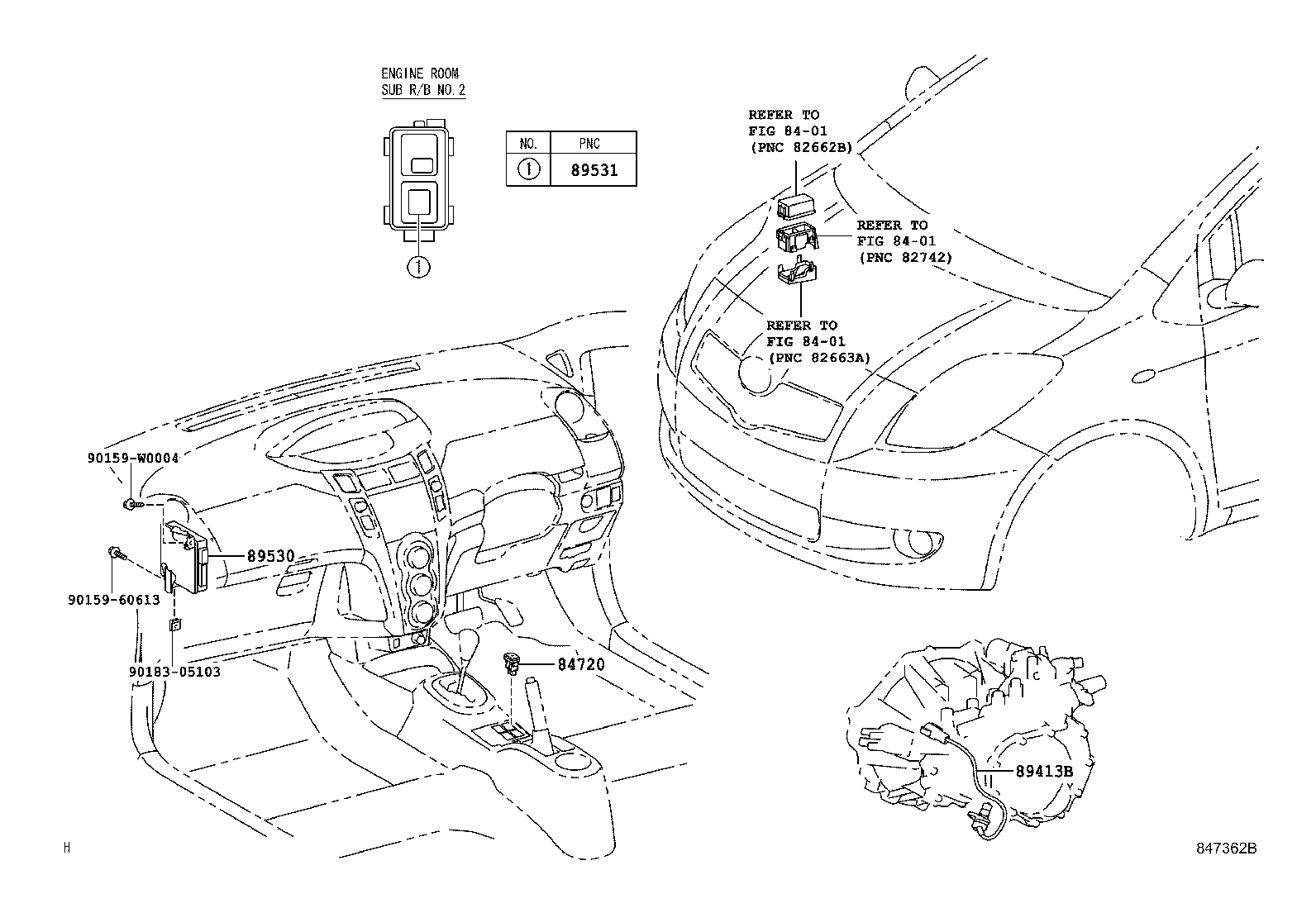

Click highlighted areas on diagram

diagram 8401 8401 8401 84720 89413B 89530 89531 9015960613 90159W0004 9018305103
Part # Description Qty Price
84720 - SWITCH ASSY, PATTERN SELECT
84720-0D010

KSP90,NLP90,SCP90..FRP..5FS

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-64010

NLP90..FRP..5FS

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-52170

NLP90..FRP..RHD..5FS

 1
89531 - RELAY, TRANSMISSION CONTROL
90080-87030

KSP90,NLP90,SCP90..FRP..5FS

 1
Common parts
90159-60613
90159-W0004
90183-05103
Linked diagrams
8401
