NLP90R-CGMRXW (2006)
Toyota Yaris (Frp)
Production
Jan 2006
-
Nov 2008
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

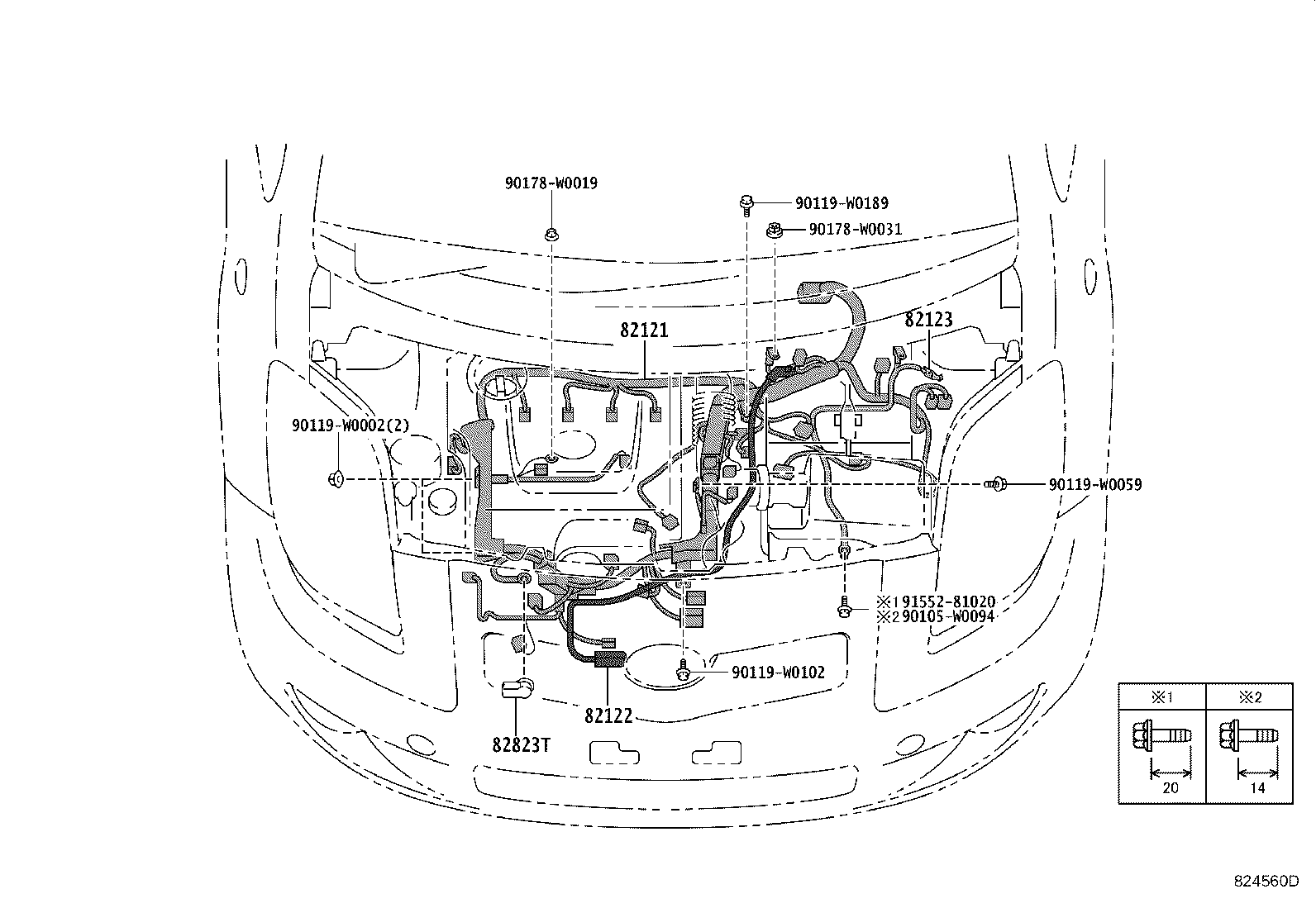

ILLUST NO. 2 OF 7(0511-0811)NLP90..FRP..RHD
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0D530 |
NLP90..FRP..RHD..5F |
1 | ||
| 82121-0D531 |
NLP90..FRP..RHD..5F |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0D030 |
NLP90..FRP |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0D180 |
NLP90..FRP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 90105-W0094 | ||||
| 90119-W0002 | ||||
| 90119-W0059 | ||||
| 90119-W0102 | ||||
| 90119-W0189 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 91552-81020 | ||||
ILLUST NO. 6 OF 7(0511-0811)FRP ; (0811- )KSP90..FRP
Click highlighted areas on diagram
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02300 | ||||
| 82715-02390 | ||||
| 82715-0H230 | ||||
| 82715-52050 | ||||
| 82715-52090 | ||||
| 82715-52210 | ||||
| 82715-52220 | ||||
| 82715-52230 | ||||
| 82715-52560 | ||||
| 82715-52B70 | ||||
| 82715-52B80 | ||||
| 82715-52B90 | ||||
| 82715-52C00 | ||||
| 82715-52C20 | ||||
| 82715-52D10 | ||||
| 82715-52D20 | ||||
| 82715-52E50 | ||||
| 82715-52E80 | ||||
| 82715-52E90 | ||||
| 82715-52F00 | ||||
| 82715-52F10 | ||||
| 82715-52F20 | ||||
| 82715-52F30 | ||||
| 82715-52F60 | ||||
| 82715-52J70 | ||||
| 82715-52K30 | ||||
| 82715-52K80 | ||||
| 82715-52K90 | ||||
| 82715-5C210 | ||||
| 90119-08429 | ||||
| 90119-W0018 | ||||
| 90119-W0019 | ||||
| 90119-W0190 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
