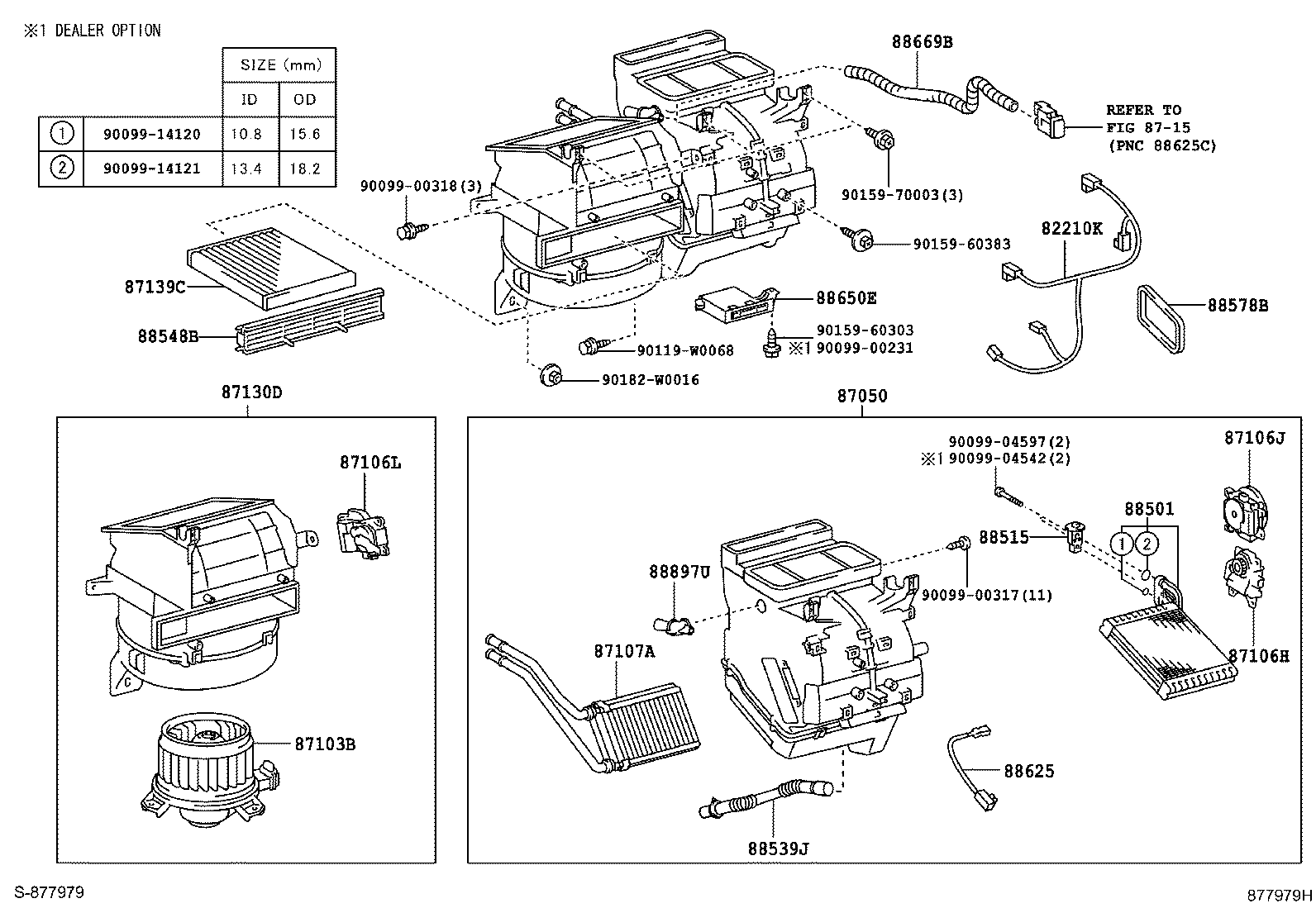

NLP90R-CGGGXW (2006)
Toyota Yaris (Frp)
(0511-0811)FRP..RHD ; (0811- )FRP..RHD..SOL
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82212-52030 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-W/O |
1 | ||
| 87050-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 87050-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY) |
1 | ||
| 87050-0D080 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 87050-0D090 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52130 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87103-0D110 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 87103-52131 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0D020 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0D030 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-0D040 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D050 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 87130-0D060 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0D080 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-W/O |
1 | ||
| 87130-0D080 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 87130-0D080 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY) |
1 | ||
| 87130-0D021 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 87130-0D081 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 87130-0D081 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-W/O |
1 | ||
| 87130-0D061 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0D081 |
KSP90,NLP90,SCP90..FRP..RHD..SOL FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D010 |
NLP90..FRP..RHD..SOL;KSP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D100 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 88501-0D100 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88501-0D101 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D060 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-52100 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88578-52100 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88625-02110 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 88625-26090 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0D170 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 88650-0D170 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-W/O |
1 | ||
| 88650-0D150 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0D170 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY) |
1 | ||
| 88650-0D170 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-0D010 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-02180 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| Common parts | ||||
| 90099-00231 | ||||
| 90099-00317 | ||||
| 90099-00318 | ||||
| 90099-04542 | ||||
| 90099-04597 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
