NLP90L-CHLGXW (2009)
Toyota Yaris (Frp)

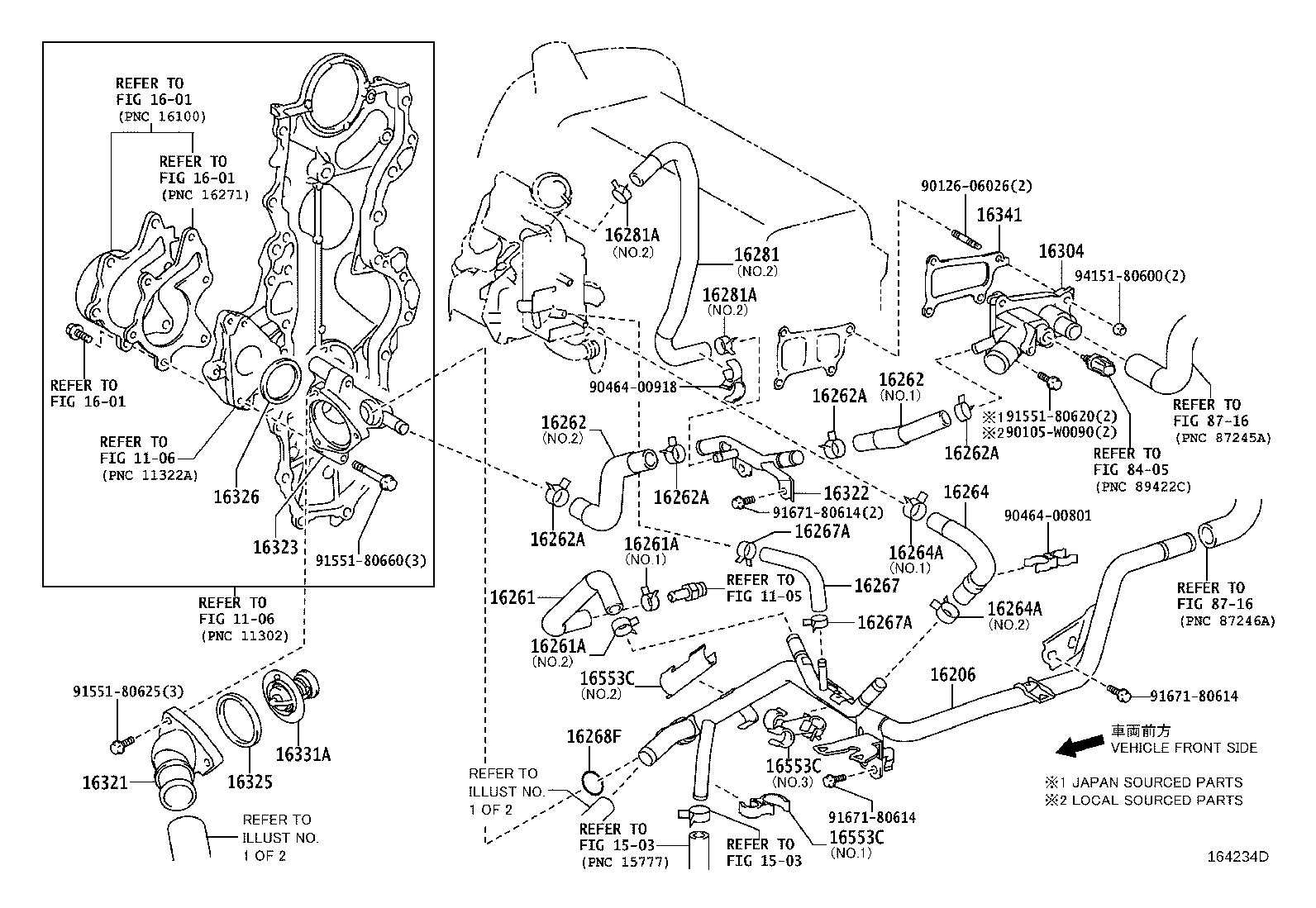

ILLUST NO. 2 OF 2(1007-1011)1NDTV..FRP..LHD
EUROPE STEP4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16206-33051 |
1NDTV..NLP90..FRP |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16264-0N030 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP *132 |
1 | ||
| 16264-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16267-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NLP90..FRP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16281-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 16281-0N070 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16321-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16325-0D010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16325-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NDTV..NLP90..FRP *WAX 82-95 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00801 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 1601 | ||||
| 8405 | ||||
| 8716 | ||||

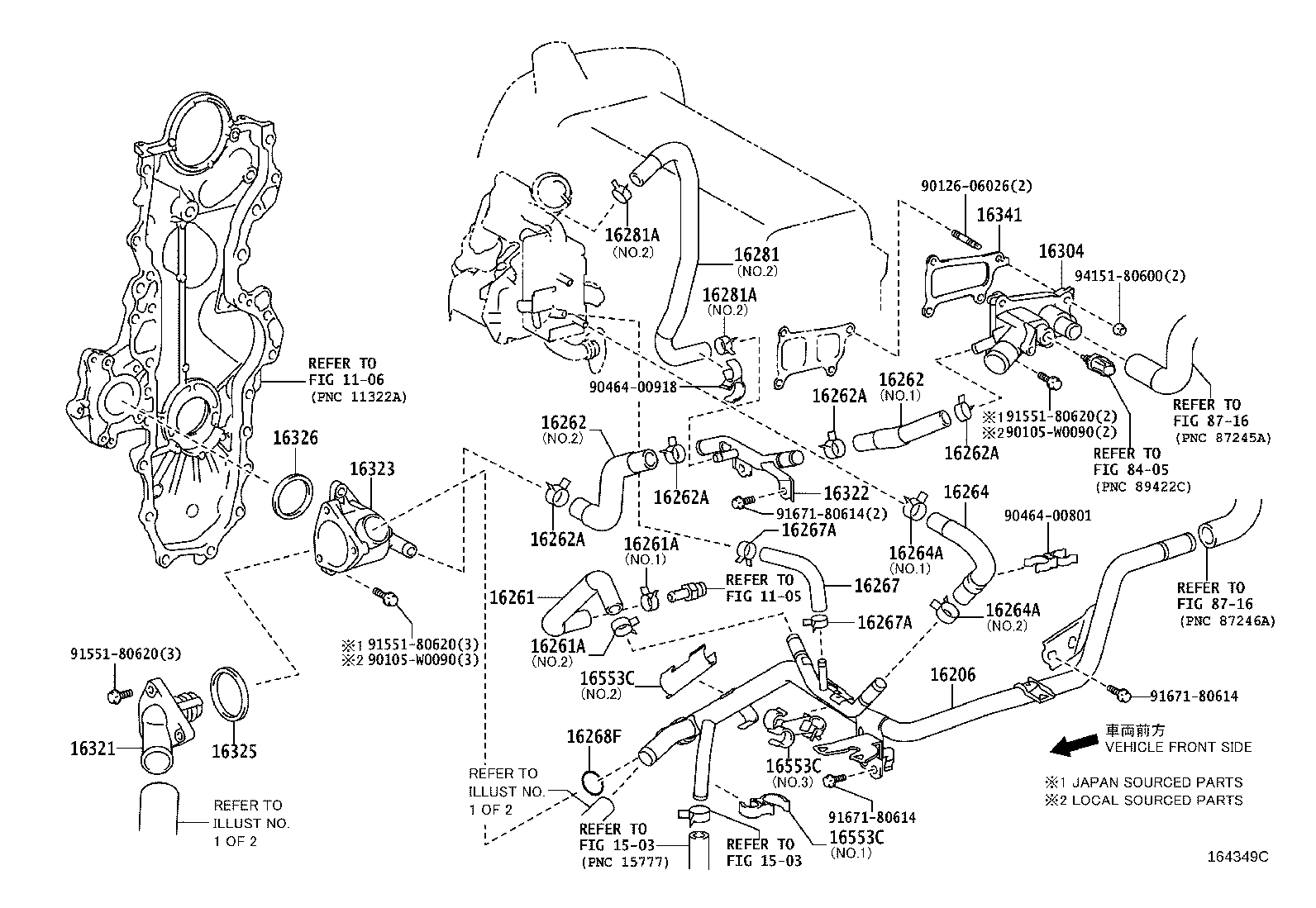

ILLUST NO. 2 OF 2(1007-1011)1NDTV..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16206-33051 |
1NDTV..NLP90..FRP |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16264-0N030 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP *132 |
1 | ||
| 16264-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16267-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NLP90..FRP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16281-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 16281-0N070 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16321-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16325-0D010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16325-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NDTV..NLP90..FRP *WAX 82-95 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 1601 | ||||
| 8405 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1011- )1NDTV..FRP..LHD
EUROPE STEP4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16206-33051 |
1NDTV..NLP90..FRP |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16264-0N030 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP *132 |
1 | ||
| 16264-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16267-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NLP90..FRP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16281-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 16281-0N070 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16321-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16325-0D010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16325-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00801 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 8405 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1011- )1NDTV..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16206-33051 |
1NDTV..NLP90..FRP |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16261-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NLP90..FRP *132,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NLP90..FRP *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NLP90..FRP |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16264-0N030 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP *132 |
1 | ||
| 16264-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16264-33040 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16267-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NLP90..FRP (L),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP (J),*251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP *251 |
1 | ||
| 16267-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J),*251 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NLP90..FRP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NLP90..FRP *251,NO.2 |
1 | ||
| 16281-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 16281-0N070 |
1NDTV..NLP90..FRP *251,(L),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP *251,(J),NO.2 |
1 | ||
| 16281-33030 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52101 |
1NDTV..NLP90..FRP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16321-33050 |
1NDTV..NLP90..FRP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 16325-0D010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 16325-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NLP90..FRP NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33120 |
1NDTV..NLP90..FRP NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NLP90..FRP..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 8405 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
