NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP

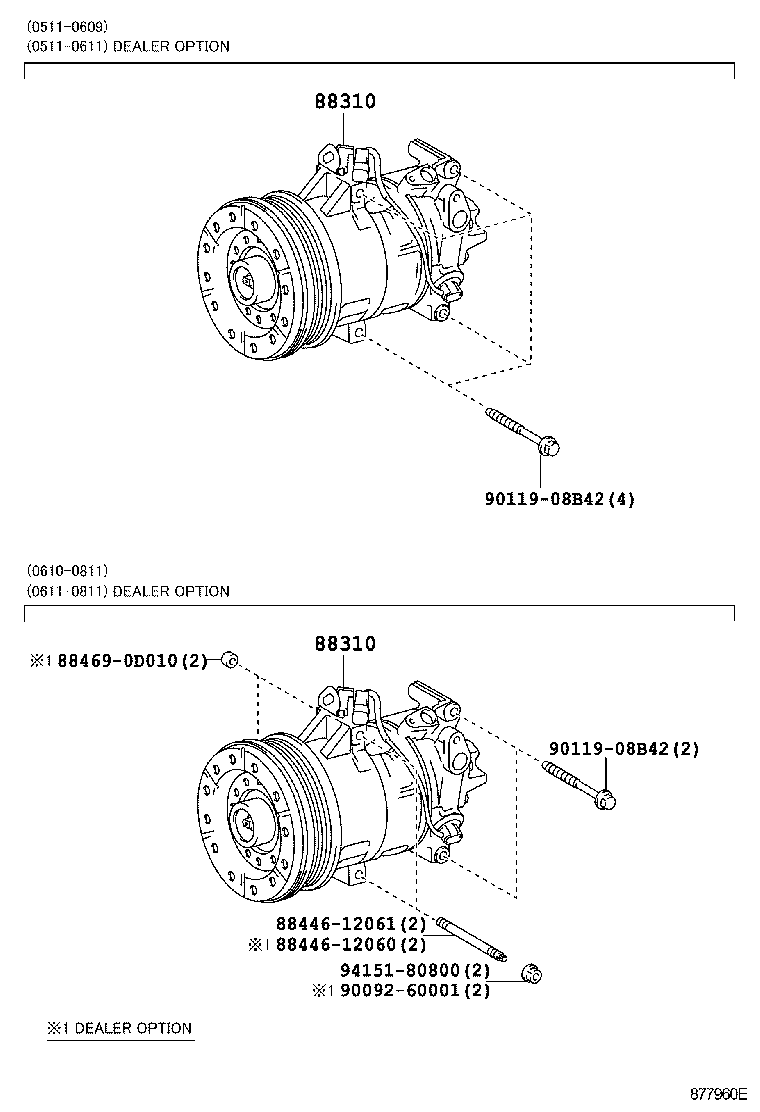

Click highlighted areas on diagram

diagram 88310 88310 8844612060 8844612061 884690D010 9009260001 9011908B42 9011908B42 9415180800
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0D210

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D210

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D210

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D210

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D211

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D212

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D212

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D212

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D212

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0D210

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D210

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D210

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D210

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D211

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D212

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D212

NLP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D212

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
88310-0D212

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

 1
Common parts
88446-12060
88446-12061
88469-0D010
90092-60001
90119-08B42
94151-80800
