NLP90L-CGMRXW (2006)
Toyota Yaris (Frp)

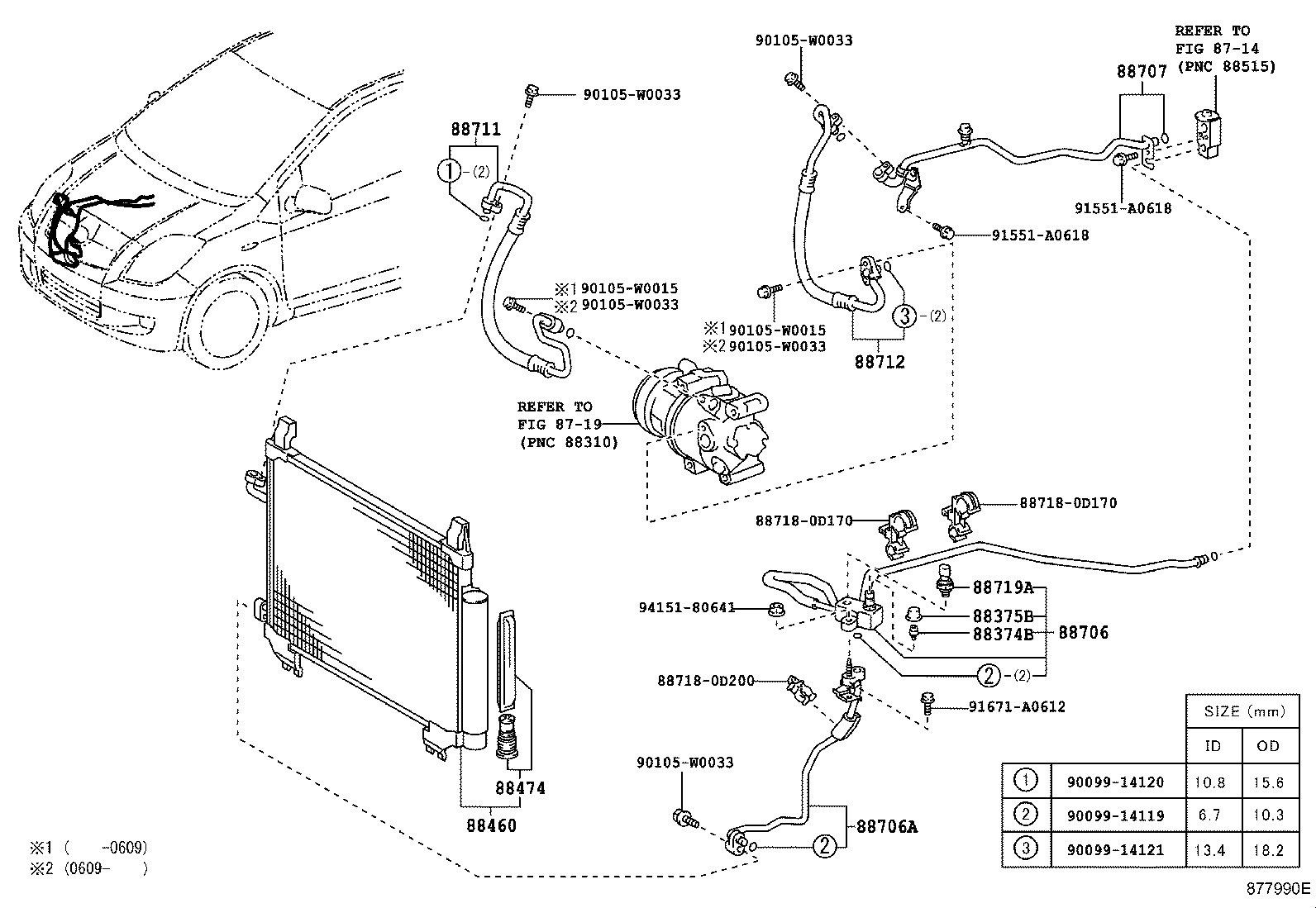

(0511-0811)NLP90..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88374-33070 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-33070 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88474-17010 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-0D200 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88716-0D260 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-0D260 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-0D080 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88712-0D180 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719-33020 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88719-40020 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719-40020 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| Common parts | ||||
| 88718-0D170 | ||||
| 88718-0D200 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-W0015 | ||||
| 90105-W0033 | ||||
| 91551-A0618 | ||||
| 91671-A0612 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

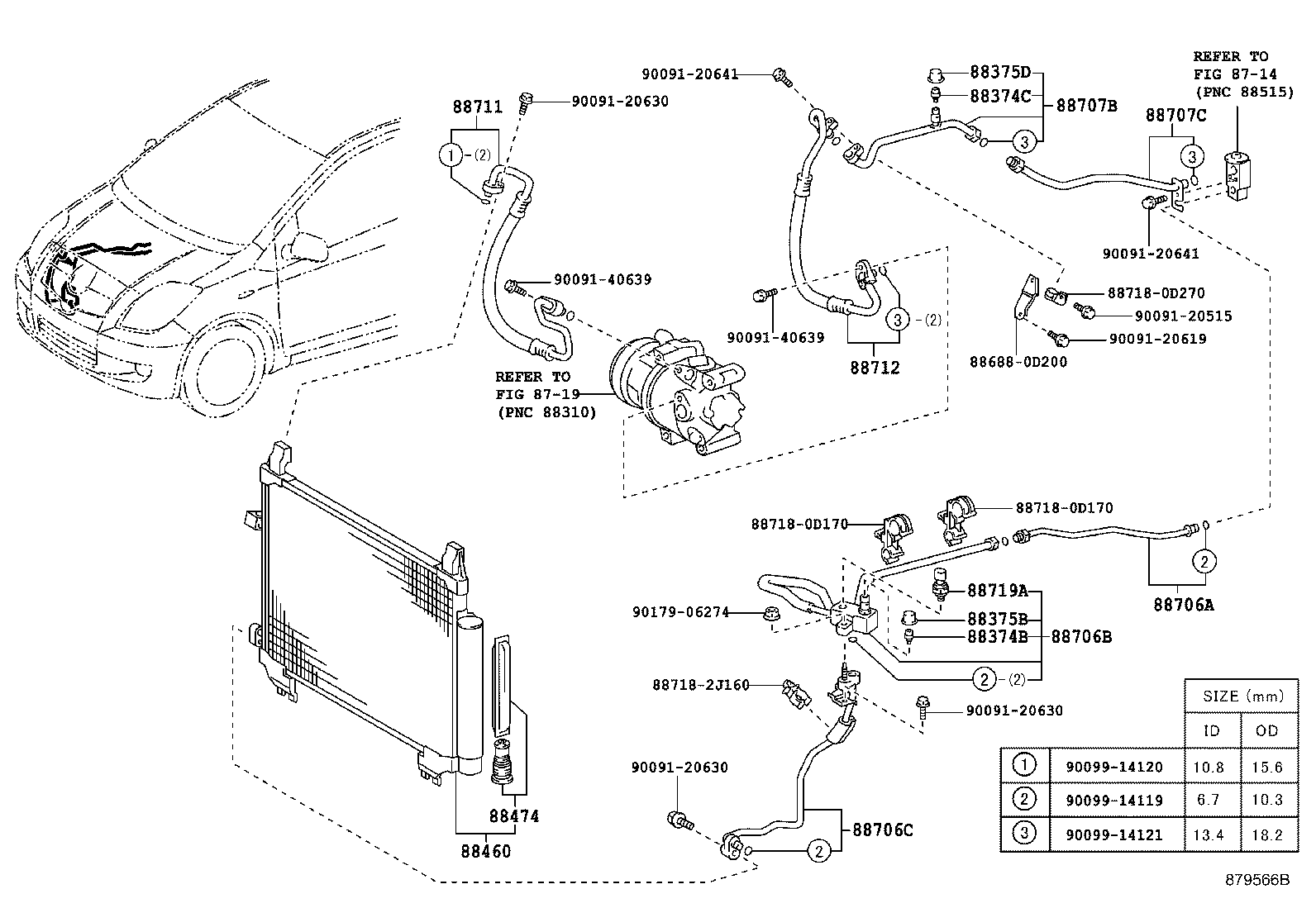

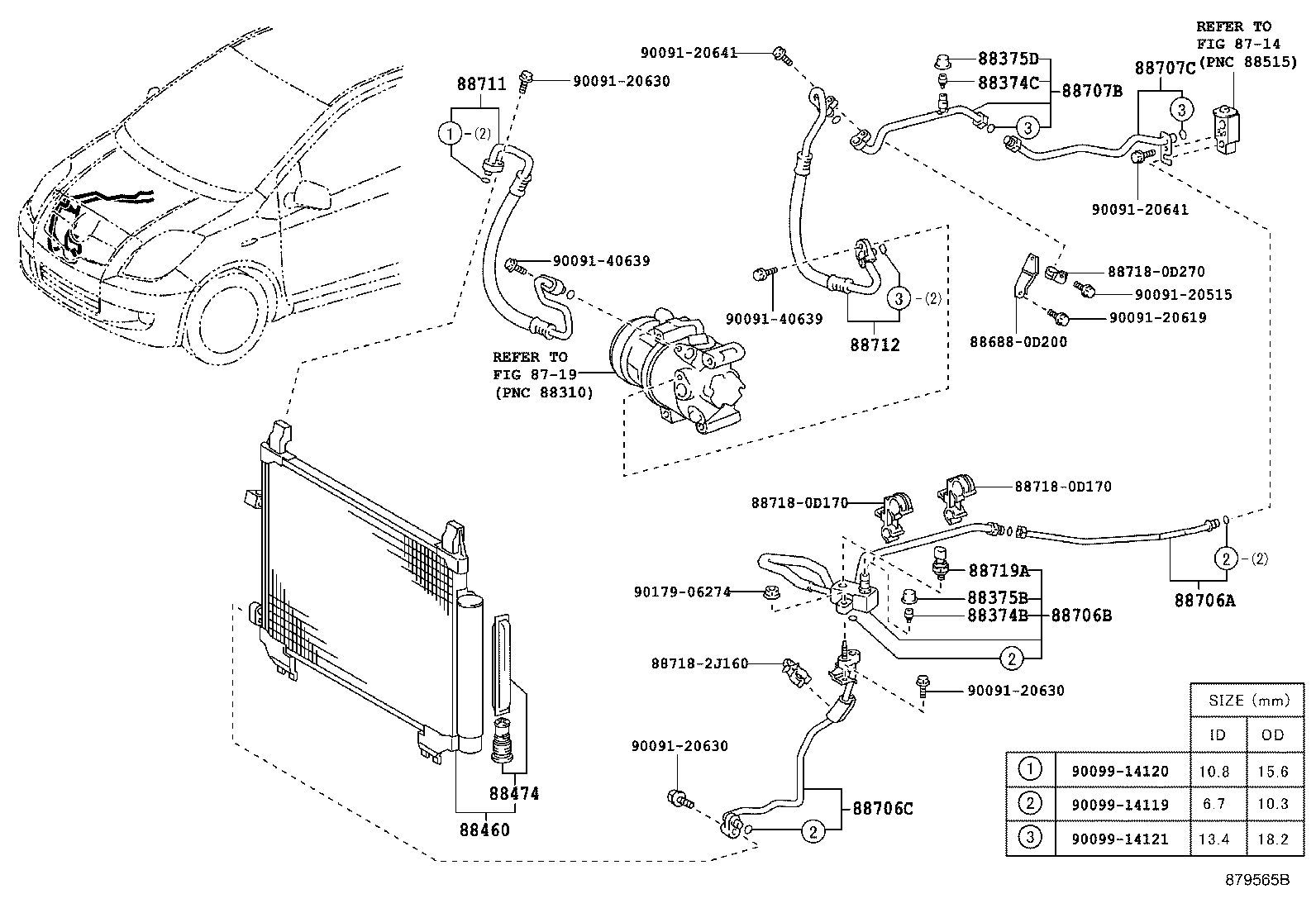

(0511-0811)NLP90..FRP
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88374-33070 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-33070 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30290 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30290 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88474-17010 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88716-0D260 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-0D260 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-0D250 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D270 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D270 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D270 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D250 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88706-0D210 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-0D100 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D100 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D130 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D130 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D130 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707C - TUBE SUB-ASSY, SUCTION, C | ||||
| 88707-0D120 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D120 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D110 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D120 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D110 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88712-0D180 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719-33020 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88719-40020 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719-40020 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| Common parts | ||||
| 88688-0D200 | ||||
| 88718-0D170 | ||||
| 88718-0D270 | ||||
| 88718-2J160 | ||||
| 90091-20515 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90091-20641 | ||||
| 90091-40639 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(0511-0811)NLP90..FRP..LHD
DEALER OPTION & W(POWER HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88374-33070 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-33070 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374-30010 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30280 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30290 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375-30290 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-0D060 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88474-17010 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88716-0D260 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-0D260 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-0D250 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D270 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D270 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D270 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D250 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88706-0D210 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-0D210 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-0D100 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D100 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D130 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D130 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D130 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707C - TUBE SUB-ASSY, SUCTION, C | ||||
| 88707-0D120 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D120 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D110 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D120 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-0D110 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-0D140 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88712-0D180 |
NLP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D180 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KSP90,SCP90..FRP..LHD;NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719-33020 |
KSP90,NLP90,SCP90..FRP..TRSTD FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88719-40020 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719-40020 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| Common parts | ||||
| 88688-0D200 | ||||
| 88718-0D170 | ||||
| 88718-0D270 | ||||
| 88718-2J160 | ||||
| 90091-20515 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90091-20641 | ||||
| 90091-40639 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
