NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP

Click highlighted areas on diagram

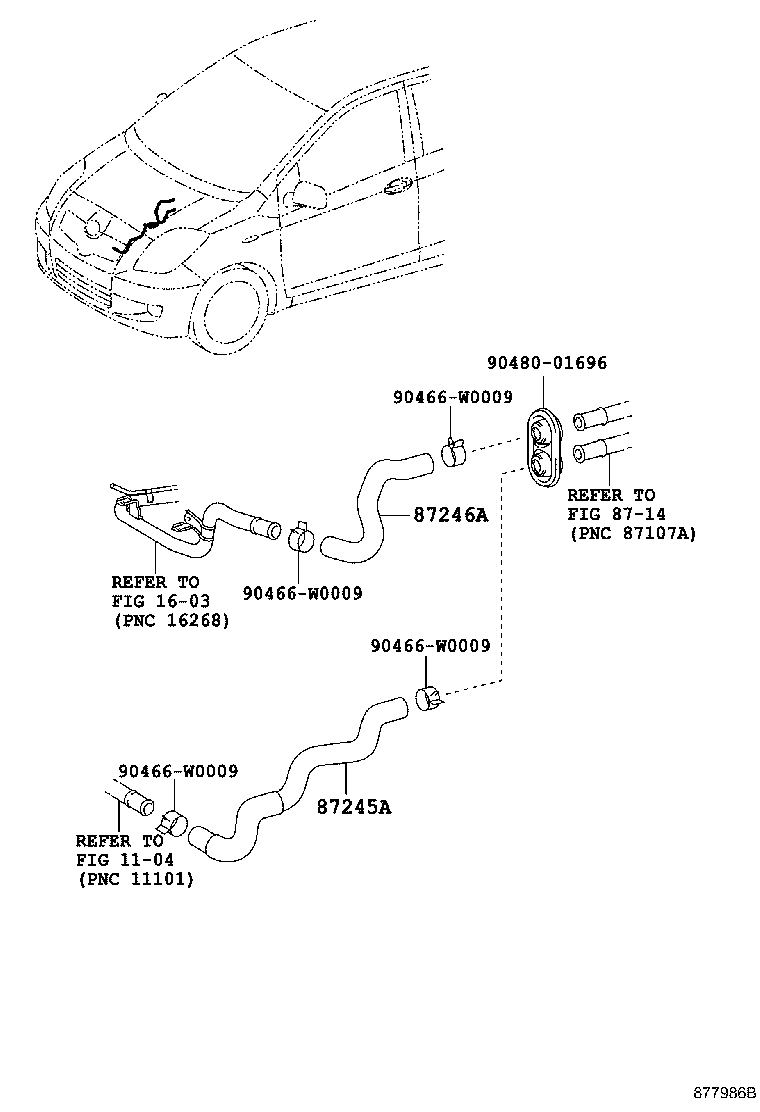

diagram 1104 1603 8714 87245A 87246A 90466W0009 90466W0009 90466W0009 90466W0009 9048001696
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-0D090

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245-0D070

NLP90..FRP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0D080

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245-0D080

NLP90..FRP

 1
Common parts
90466-W0009
90480-01696
Linked diagrams
1104
1603
8714

(0511-0811)NLP90..FRP..LHD

Click highlighted areas on diagram

W(POWER HEATER)

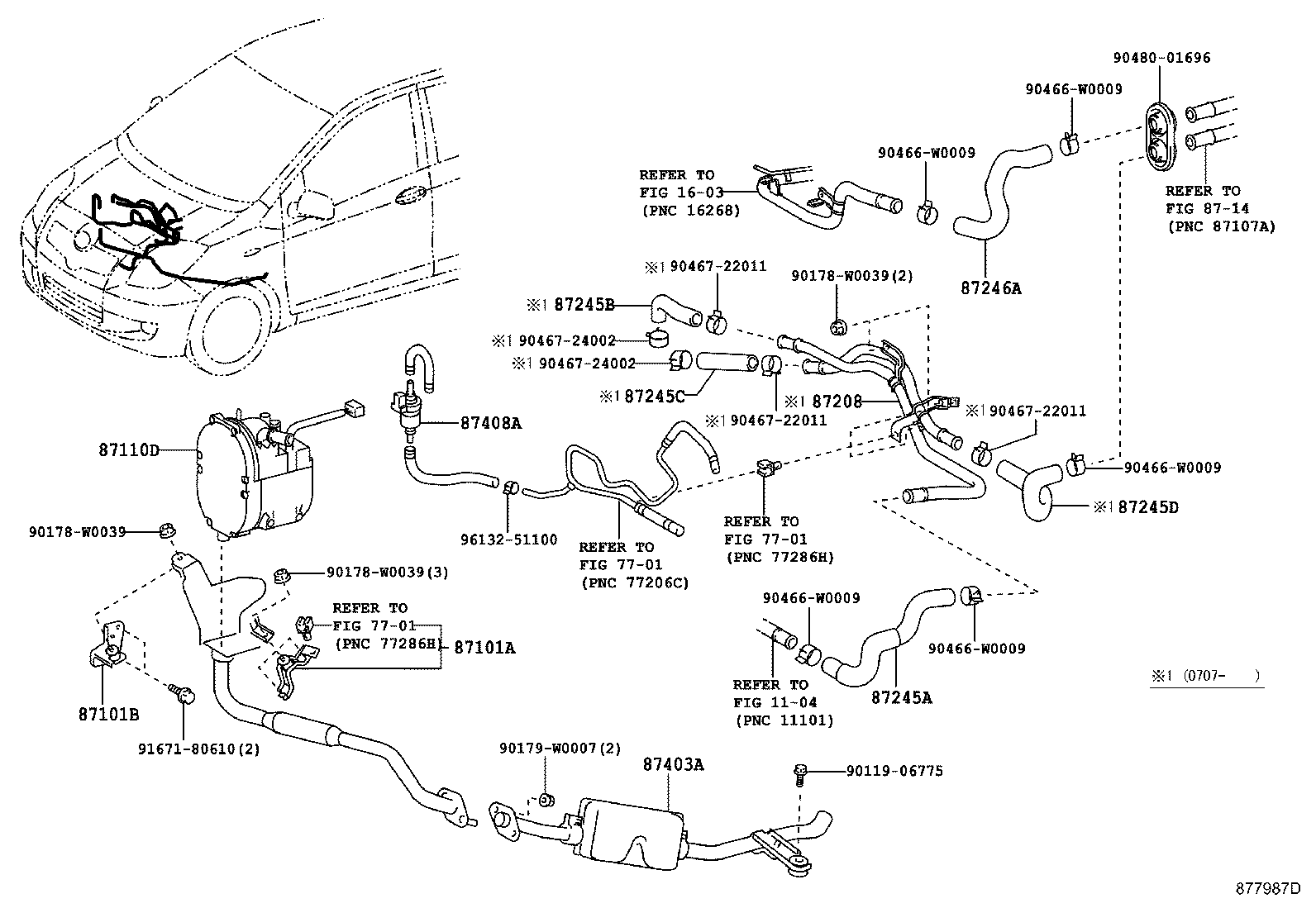

diagram 1104 1603 7701 7701 7701 87101A 87101B 87110D 8714 87208 87245A 87245B 87245C 87245D 87246A 87403A 87408A 9011906775 90178W0039 90178W0039 90178W0039 90179W0007 90466W0009 90466W0009 90466W0009 90466W0009 90466W0009 9046722011 9046722011 9046722011 9046724002 9046724002 9048001696 9167180610 9613251100
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-0D030

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-0D040

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87110D - HEATER ASSY
87110-0D011

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87110-0D012

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0D020

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0D090

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245-0D070

NLP90..FRP

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0D330

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-0D340

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245D - HOSE, HEATER WATER, INLET D
87245-0D350

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0D080

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245-0D080

NLP90..FRP

 1
87403A - PIPE SUB-ASSY, EXHAUST
87403-0D010

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87408A - PUMP SUB-ASSY, FUEL
87408-0D011

NLP90..FRP..LHD..TRSTD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
Common parts
90119-06775
90178-W0039
90179-W0007
90466-W0009
90467-22011
90467-24002
90480-01696
91671-80610
96132-51100
Linked diagrams
1104
1603
7701
8714
