NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP

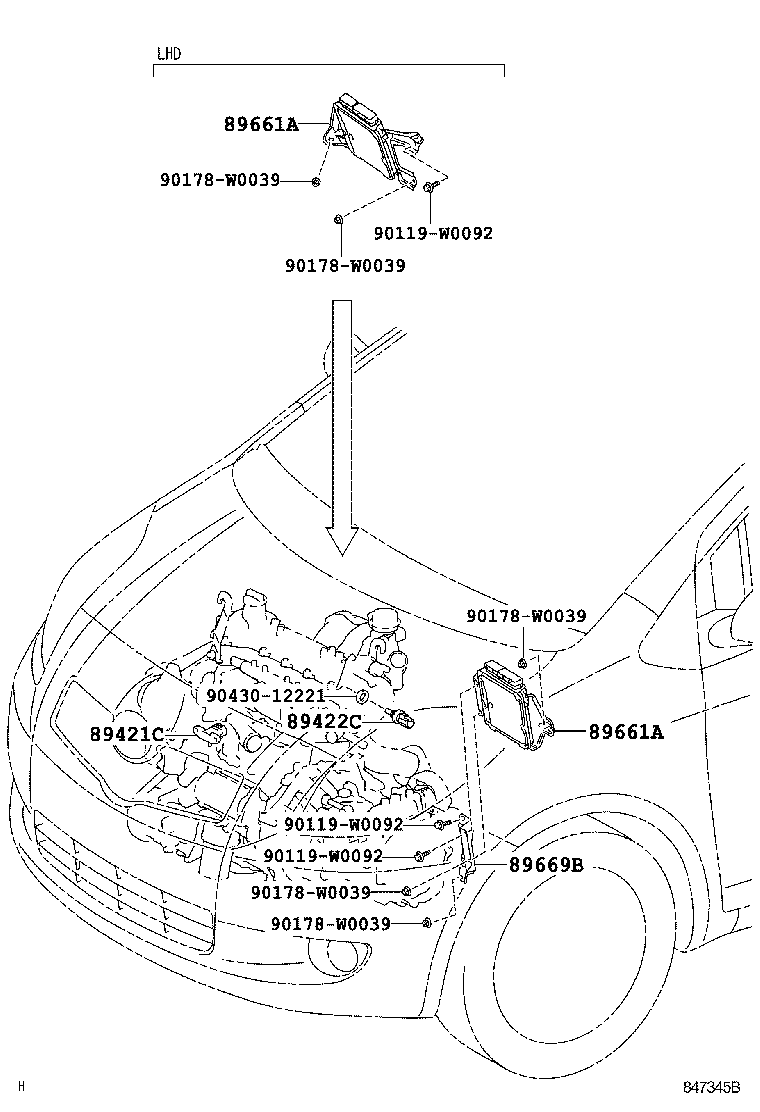

Click highlighted areas on diagram

diagram 89421C 89422C 89661A 89661A 89669B 90119W0092 90119W0092 90119W0092 90178W0039 90178W0039 90178W0039 90178W0039 90178W0039 9043012221
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71020

NLP90..FRP

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-0H010

NLP90..FRP..5F

(L)

 1
89422-33030

NLP90..FRP..5F

(J)

 1
89661A - COMPUTER, ENGINE CONTROL
89660-0D650

NLP90..FRP..LHD..5F

 1
89661A - COMPUTER, ENGINE CONTROL
89660-0D650

NLP90..FRP..LHD..5F

 1
Common parts
90119-W0092
90178-W0039
90430-12221
