NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008

Engine 1NDTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

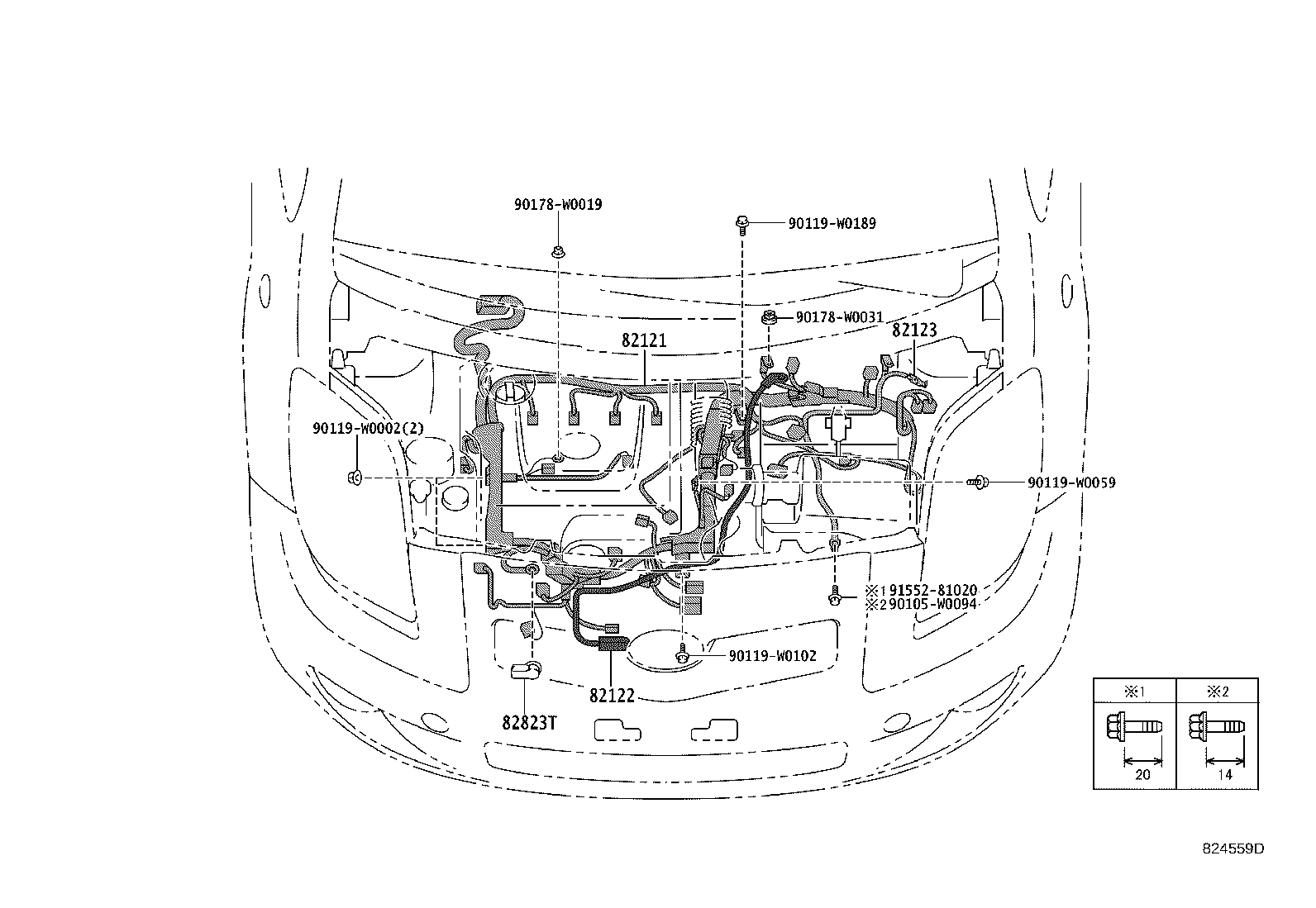

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0D510	NLP90..FRP..LHD..5F	11/2005 - 03/2006	1
82121-0D511	NLP90..FRP..LHD..5F	03/2006 - 11/2008	1
82122 - WIRE, ENGINE, NO.2
82122-0D040	NLP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT)	11/2005 - 11/2008	1
82122-0D030	NLP90..FRP	11/2005 - 11/2008	1
82122-0D040	NLP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT)	11/2005 - 11/2008	1
82123 - WIRE, ENGINE, NO.3
82123-0D180	NLP90..FRP	11/2005 - 11/2008	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	KSP90,NLP90,SCP90..FRP	11/2005 - 11/2008	1
Common parts
90105-W0094
90119-W0002
90119-W0059
90119-W0102
90119-W0189
90178-W0019
90178-W0031
91552-81020

Click highlighted areas on diagram

CLAMP & BRACKET 2/2
