NLP90L-CGMRXW (2006)
Toyota Yaris (Frp)
ILLUST NO. 2 OF 2(0511-0811)NLP90..FRP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-0D040 |
NLP90..FRP |
1 | ||
| 77206-0D050 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-0D040 |
NLP90..FRP |
1 | ||
| 77206-0D050 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77259-52110 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77279-52040 |
NLP90..FRP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D090 |
NLP90..FRP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D090 |
NLP90..FRP |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-0D050 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77252-0D040 |
NLP90..FRP |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-0D050 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77252-0D040 |
NLP90..FRP |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0D020 |
NLP90..FRP |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0D020 |
NLP90..FRP |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-52110 |
NLP90..FRP |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23274-33030 |
NLP90..FRP |
1 | ||
| 95333-08020 |
NLP90..FRP..LHD..TRSTD L=140,COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23274-33030 |
NLP90..FRP |
1 | ||
| 95333-08020 |
NLP90..FRP..LHD..TRSTD L=140,COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52091 |
NLP90..FRP |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-52110 |
NLP90..FRP..LHD..TRSTD COLD SPEC, WITH(REAR HEATER DUCT) |
4 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52060 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
KSP90,NLP90,SCP90..FRP |
4 | ||
| Common parts | ||||
| 32926-20010 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0511-0707)NLP90..FRP

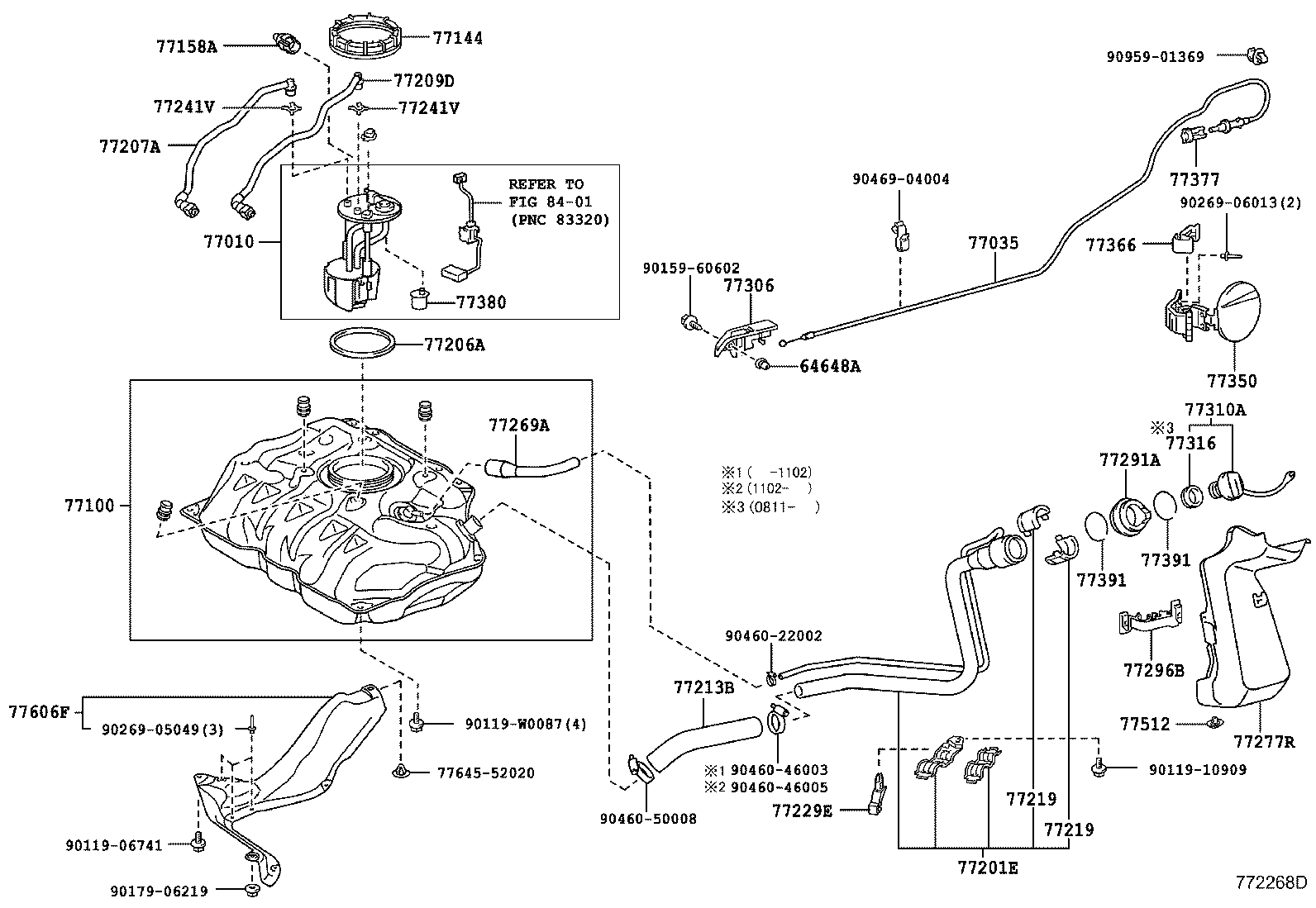

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0D020 |
NLP90..FRP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D100 |
KSP90,NLP90,SCP90..FRP..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D080 |
NLP90..FRP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0H010 |
NLP90..FRP |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-0D020 |
NLP90..FRP |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52260 |
NLP90..FRP |
1 | ||
| 77201-52261 |
NLP90..FRP |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-0D030 |
NLP90..FRP |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0D030 |
NLP90..FRP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D030 |
NLP90..FRP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52130 |
NLP90..FRP |
1 | ||
| 77213-52130 |
NLP90..FRP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-52040 |
NLP90..FRP |
1 | ||
| 77229-52040 |
NLP90..FRP |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NLP90..FRP |
2 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NLP90..FRP |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0D040 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77269-52100 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52030 |
NLP90..FRP |
1 | ||
| 77277-52031 |
NLP90..FRP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52030 |
NLP90..FRP |
1 | ||
| 77296-52030 |
NLP90..FRP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
KSP90,NLP90,SCP90..FRP..LHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52130 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
NLP90..FRP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
NLP90..FRP |
1 | ||
| 77512-35140 |
NLP90..FRP |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 77645-52020 | ||||
| 90119-06741 | ||||
| 90119-10909 | ||||
| 90119-W0087 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-05049 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-50008 | ||||
| 90469-04004 | ||||
| 90959-01369 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0707- )NLP90..FRP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0D020 |
NLP90..FRP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D100 |
KSP90,NLP90,SCP90..FRP..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D080 |
NLP90..FRP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0H010 |
NLP90..FRP |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-0D020 |
NLP90..FRP |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52260 |
NLP90..FRP |
1 | ||
| 77201-52261 |
NLP90..FRP |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-0D030 |
NLP90..FRP |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0D030 |
NLP90..FRP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D030 |
NLP90..FRP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52130 |
NLP90..FRP |
1 | ||
| 77213-52130 |
NLP90..FRP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77219-52050 |
NLP90..FRP |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-52040 |
NLP90..FRP |
1 | ||
| 77229-52040 |
NLP90..FRP |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NLP90..FRP |
2 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NLP90..FRP |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0D040 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77269-52100 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52030 |
NLP90..FRP |
1 | ||
| 77277-52031 |
NLP90..FRP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52030 |
NLP90..FRP |
1 | ||
| 77296-52030 |
NLP90..FRP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
KSP90,NLP90,SCP90..FRP..LHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52130 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
NLP90..FRP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
NLP90..FRP |
1 | ||
| 77512-35140 |
NLP90..FRP |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 77645-52020 | ||||
| 90119-06741 | ||||
| 90119-10909 | ||||
| 90119-W0087 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-05049 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90469-04004 | ||||
| 90959-01369 | ||||
| Linked diagrams | ||||
| 8401 | ||||
