NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP..LHD

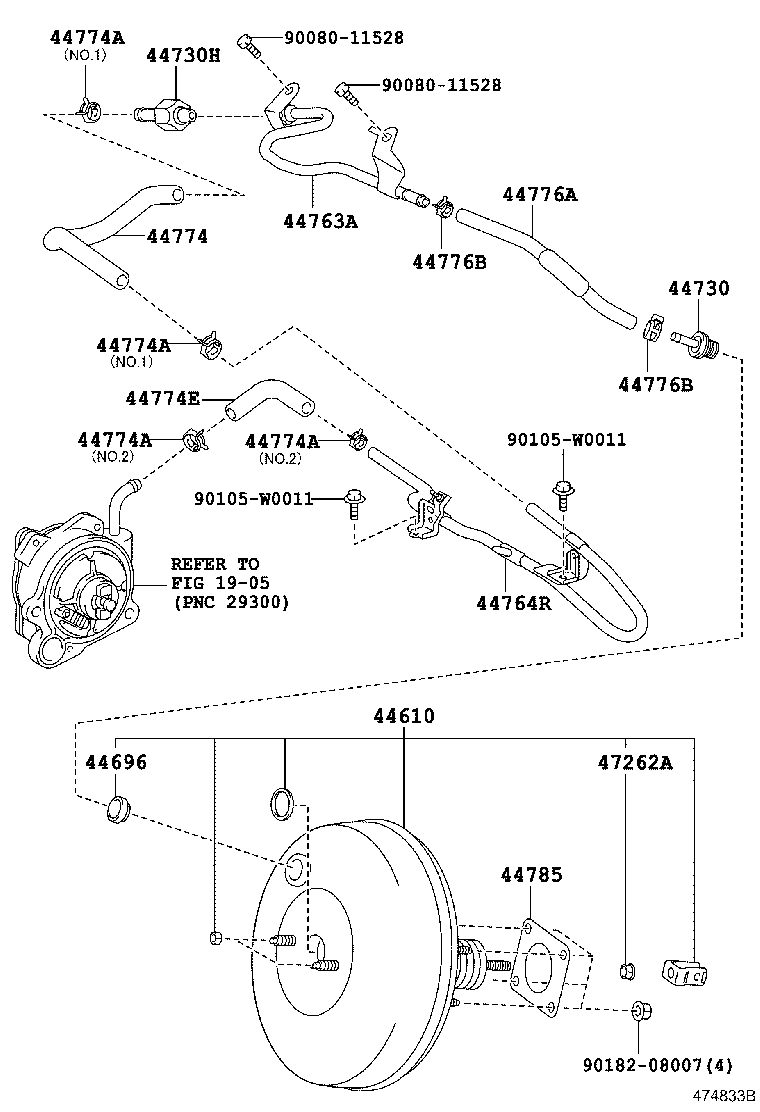

Click highlighted areas on diagram

diagram 1905 44610 44696 44730 44730H 44763A 44764R 44774 44774A 44774A 44774A 44774A 44774E 44776A 44776B 44776B 44785 47262A 9008011528 9008011528 90105W0011 90105W0011 9018208007
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09260

NLP90..FRP..LHD

 1
44610-09230

KSP90,NLP90,SCP90..FRP..LHD

VEHICLE STABILITY CONT-WITH

 1
44696 - GROMMET, CHECK VALVE
44692-0D020

KSP90,NLP90,SCP90..FRP

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0D010

SCP90..FRP..RHD;KSP90,NLP90..FRP

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-12080

NLP90..FRP

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-52070

NLP90..FRP..LHD

 1
44764R - TUBE, CONNECTOR TO VACUUM RESERVOIR
44764-12010

NLP90..FRP

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-52090

NLP90..FRP..LHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NLP90..FRP

NO.2

 2
90467-16014

NLP90..FRP

NO.1

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NLP90..FRP

NO.2

 2
90467-16014

NLP90..FRP

NO.1

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NLP90..FRP

NO.2

 2
90467-16014

NLP90..FRP

NO.1

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NLP90..FRP

NO.2

 2
90467-16014

NLP90..FRP

NO.1

 2
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-52021

NLP90..FRP

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-52090

NLP90..FRP..LHD

 1
44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90467-16014

NLP90..FRP

 2
44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90467-16014

NLP90..FRP

 2
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP90,NLP90,SCP90..FRP

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-05010

KSP90,NLP90,SCP90..FRP

 1
Common parts
90080-11528
90105-W0011
90182-08007
Linked diagrams
1905
