NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP

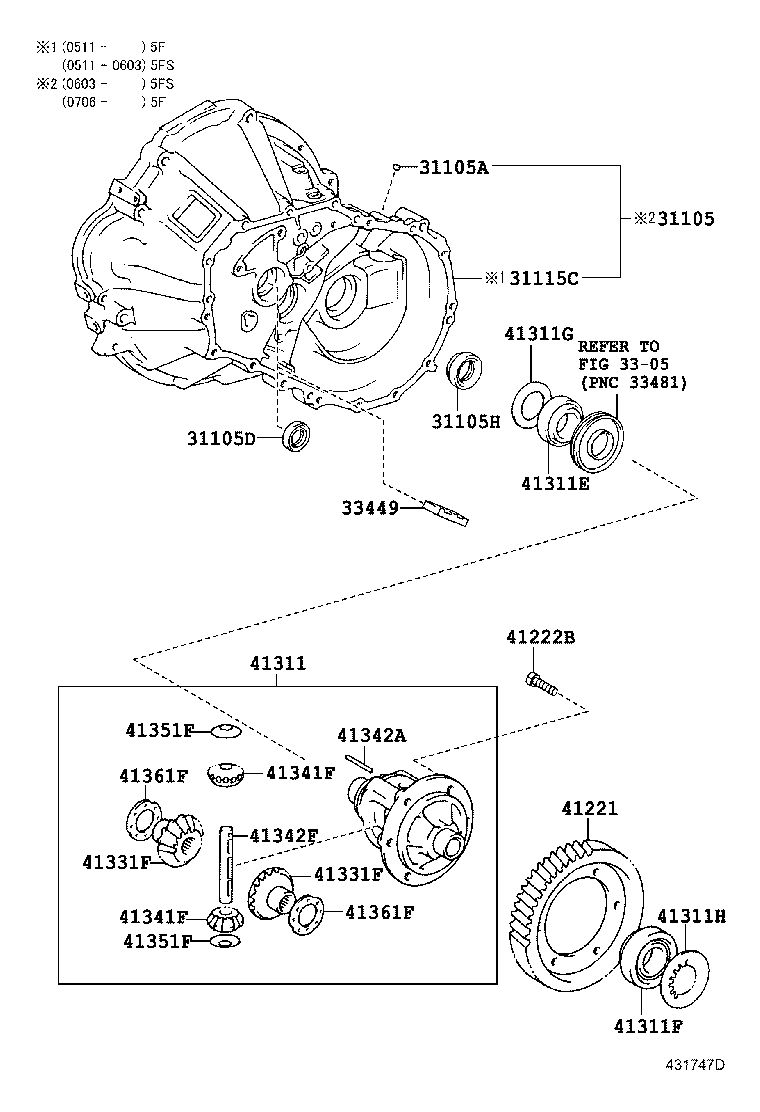

Click highlighted areas on diagram

C53,C53A

diagram 31105 31105A 31105D 31105H 31115C 3305 33449 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-52060

NLP90..FRP..5F

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NLP90..FRP..5F

 1
90331-08002

NLP90..FRP

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028

NLP90..FRP

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35057

NLP90..FRP

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-52070

NLP90..FRP..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NLP90..FRP..5F

 1
33449-12020

NLP90..FRP..5F

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-52210

NLP90..FRP

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

NLP90..FRP

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-32061

NLP90..FRP

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40097

NLP90..FRP

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40094

NLP90..FRP

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NLP90..FRP

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41014

NLP90..FRP

T=2.10,MARK AA

 1
90564-41016

NLP90..FRP

T=2.20,MARK CC

 1
90564-41029

NLP90..FRP

T=2.85,MARK RR

 1
90564-41026

NLP90..FRP

T=2.70,MARK NN

 1
90564-41020

NLP90..FRP

T=2.40,MARK GG

 1
90564-41019

NLP90..FRP

T=2.35,MARK FF

 1
90564-41021

NLP90..FRP

T=2.45,MARK HH

 1
90564-41023

NLP90..FRP

T=2.55,MARK KK

 1
90564-41027

NLP90..FRP

T=2.75,MARK PP

 1
90564-41015

NLP90..FRP

T=2.15,MARK BB

 1
90564-41025

NLP90..FRP

T=2.65,MARK MM

 1
90564-41028

NLP90..FRP

T=2.80,MARK QQ

 1
90564-41030

NLP90..FRP

T=2.90,MARK SS

 1
90564-41022

NLP90..FRP

T=2.50,MARK JJ

 1
90564-41017

NLP90..FRP

T=2.25,MARK DD

 1
90564-41031

NLP90..FRP

T=2.95,MARK TT

 1
90564-41018

NLP90..FRP

T=2.30,MARK EE

 1
90564-41024

NLP90..FRP

T=2.60,MARK LL

 1
90564-41032

NLP90..FRP

T=3.00,MARK UU

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

NLP90..FRP

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

NLP90..FRP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

NLP90..FRP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

NLP90..FRP

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NLP90..FRP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

NLP90..FRP

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NLP90..FRP

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NLP90..FRP

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NLP90..FRP

T=1.20,MARK 04

 2
41361-22030

NLP90..FRP

T=1.10,MARK 03

 2
41361-22140

NLP90..FRP

T=0.95,MARK 14

 2
41361-22150

NLP90..FRP

T=1.05,MARK 15

 2
41361-22160

NLP90..FRP

T=1.15,MARK 16

 2
41361-22020

NLP90..FRP

T=1.00,MARK 02

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NLP90..FRP

T=1.20,MARK 04

 2
41361-22030

NLP90..FRP

T=1.10,MARK 03

 2
41361-22140

NLP90..FRP

T=0.95,MARK 14

 2
41361-22150

NLP90..FRP

T=1.05,MARK 15

 2
41361-22160

NLP90..FRP

T=1.15,MARK 16

 2
41361-22020

NLP90..FRP

T=1.00,MARK 02

 2
Linked diagrams
3305
